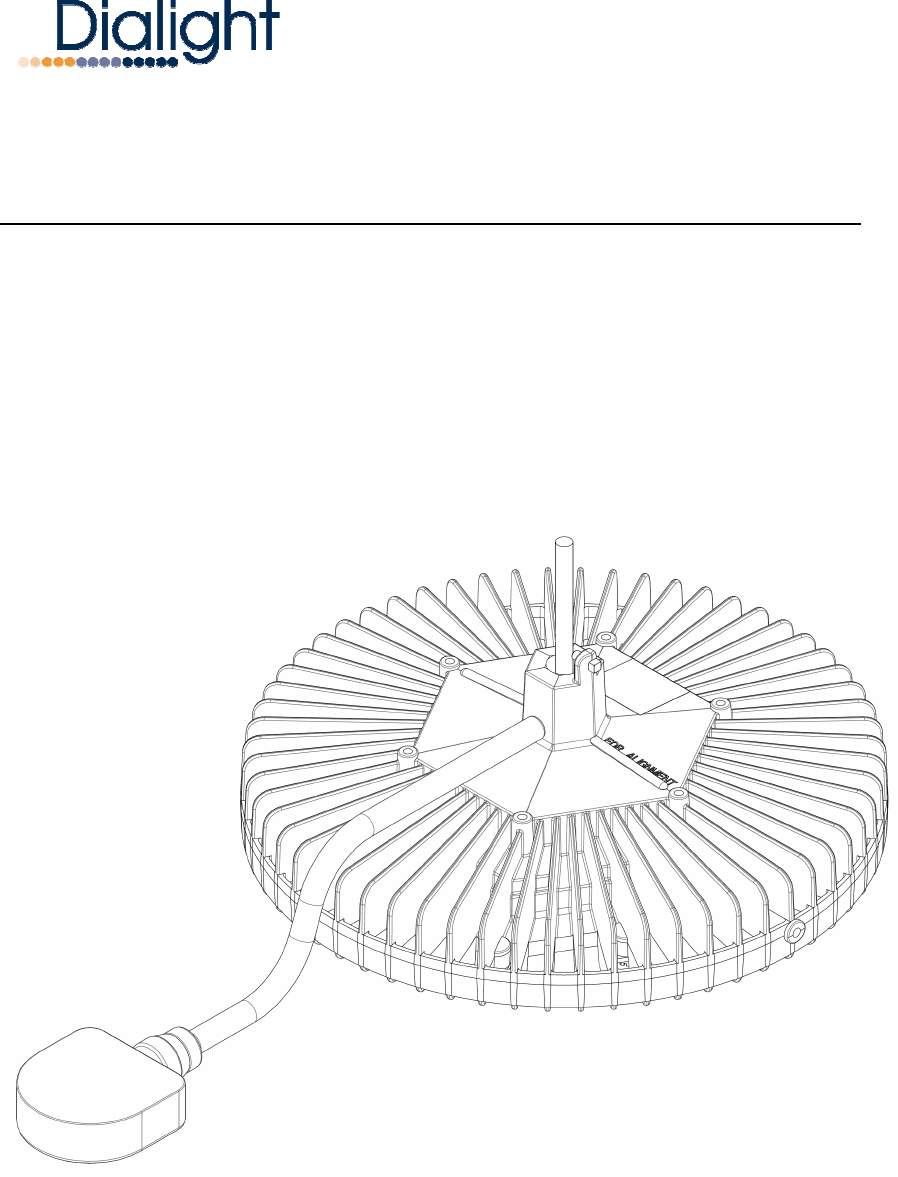

INSTALLATION AND MAINTENANCE MANUAL DUROSITETM SERIES LED LOW BAY Document No: 9100-127-1495-99 Rev A March 2011 MODEL # LBW1C2D
Document No: 9100-127-1495-99 Rev A 1: Introduction This Low Bay light is designed for illumination of industrial locations. It uses the latest in solid state lighting technology for long life, low maintenance, and high efficiency. The unique optical design focuses light downward to where it is needed, giving improved efficiency over a conventional HID luminaire.
Document No: 9100-127-1495-99 Rev A Pendent Mount Installation Steps: • • • • For maximum long term reliability and light output, the light must be installed in free air. o The Low Bay fixture design incorporates an over-temperature control circuit that reduces input power should internal temperatures reach a maximum level. As a result, light output may be reduced. The Low Bay fixture is threaded for 3/4” NPT in order to be assembled to conduit. o Calculate and measure required conduit length.
Document No: 9100-127-1495-99 Rev A Occupancy Sensor: The Dialight Low Bay fixture is ideally suited for control by an occupancy sensor in order to maximize energy savings based on its instant-on behavior and low power consumption. Instructions from the Sensor manufacture for use and operation of the occupancy sensor are included in this manual as a separate sheet. DO NOT DISCARD. WARNING: TO BE INSTALLED AND/OR USED IN ACCORDANCE WITH APPROPRIATE ELECTRICAL CODES AND REGULATIONS.
Document No: 9100-127-1495-99 Rev A DIMENSIONS ARE FOR REFERENCE ONLY. All statements, technical information and recommendations contained herein are based on information and tests we believe to be reliable. The accuracy or completeness thereof is not guaranteed.
