10 DC-100 Operation Manual
2.5 Battery Installation
This section covers the installation of the DC-100’s optional battery into the battery compartment. Use the
following steps to install a battery into the DC-100.
Do not turn the scale upside down. Always work with the scale on its side! Damage to the load cell can
occur if the scale is turned upside down.
1. Turn the DC-100 on its left side.
2. Unscrew the three screws holding on the side cover to the battery compartment.

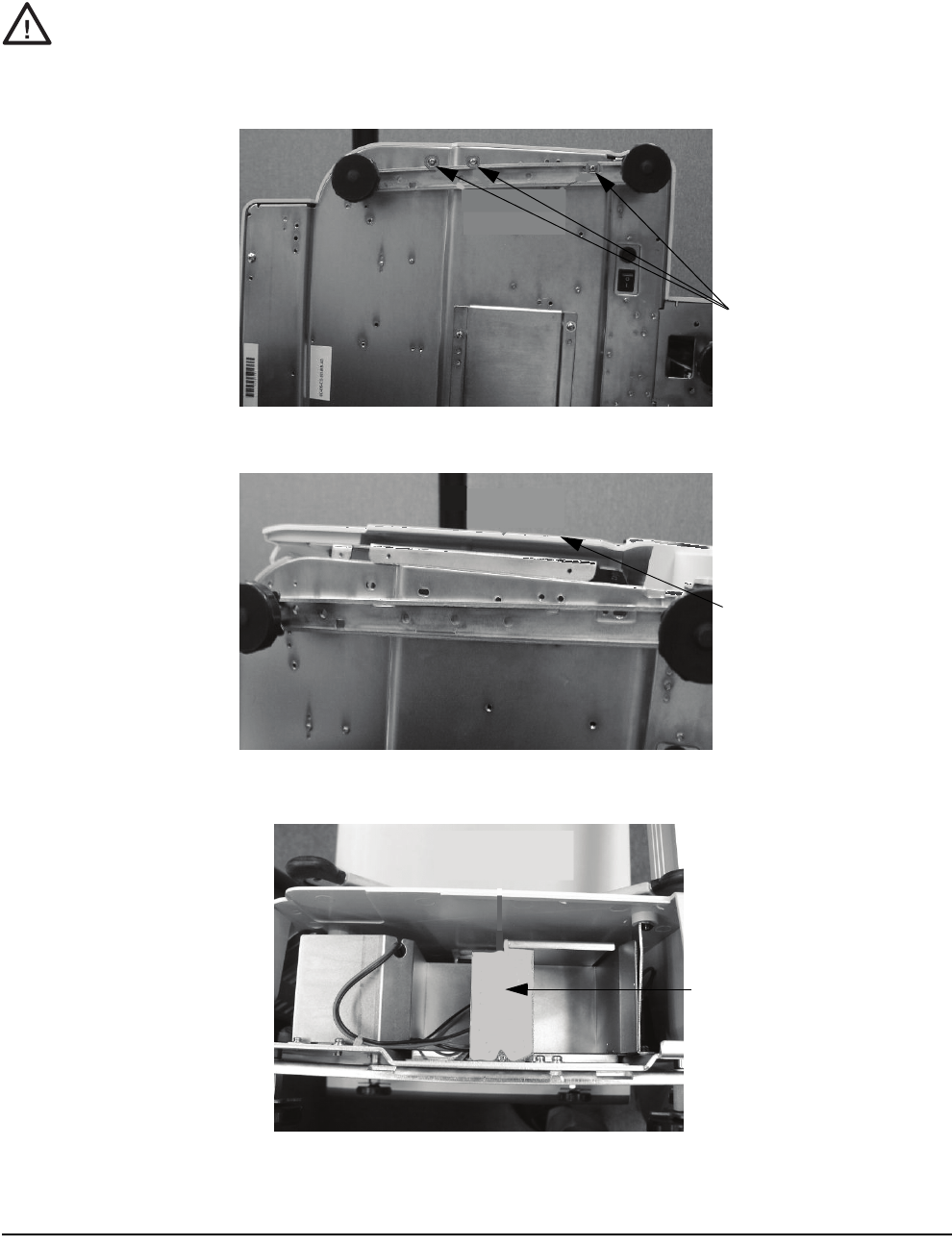

Figure 2-4. DC-100 Screw Location
3. Remove the side cover enclosing the battery compartment.
Figure 2-5. Side Cover Location
4. Remove the battery slot screw holding in place the battery holder bracket, and then remove the bracket.
Figure 2-6. Battery Holder Bracket Location
#AUTION
Screw Location
Side Cover
Battery Holder
Bracket
Location
