User manual

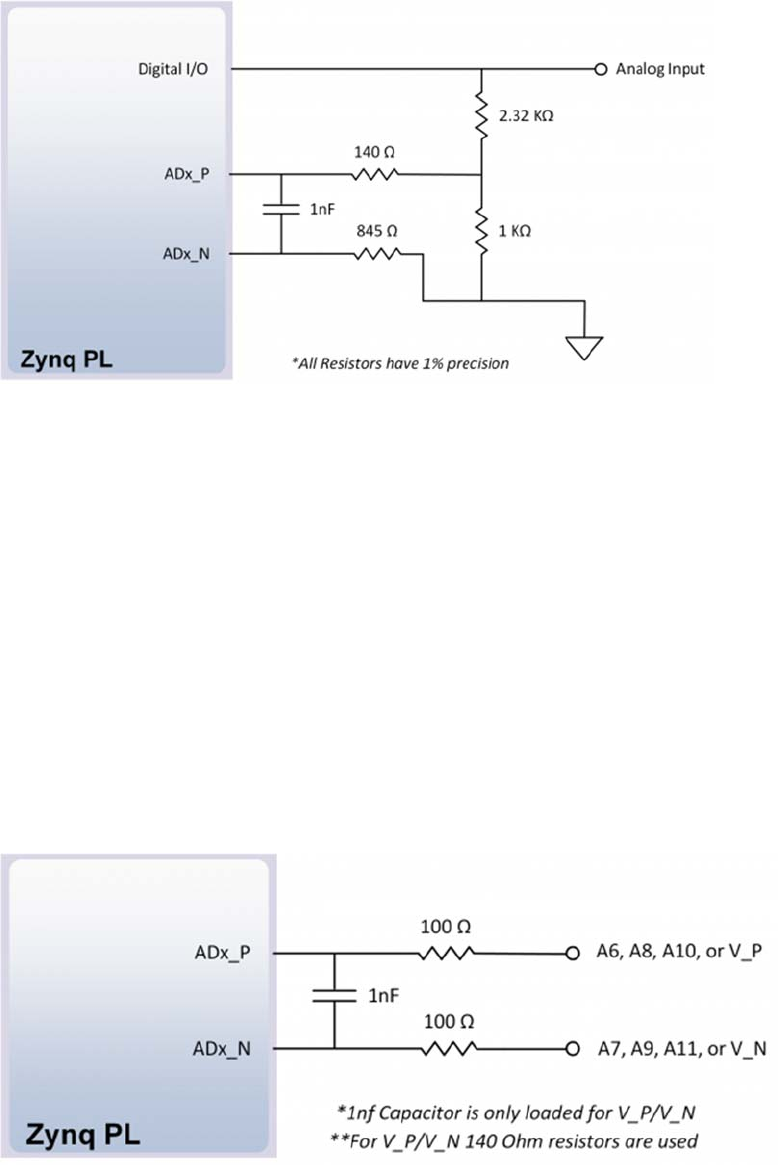

Figure 16.2.1. Single-Ended Analog Inputs.
The pins labeled A6-A11 are connected directly to 3 pairs of analog capable pins on the Zynq PL
via an anti-aliasing filter. This circuit is shown in Figure 16.2.2. These pairs of pins can be used
as differential analog inputs with a voltage difference between 0-1V. The even numbers are
connected to the positive pins of the pair and the odd numbers are connected to the negative pins
(so A6 and A7 form an analog input pair with A6 being positive and A7 being negative). Note
that though the pads for the capacitor are present, they are not loaded for these pins. Since the
analog capable pins of the FPGA can also be used like normal digital FPGA pins, it is also
possible to use these pins for Digital I/O.
The pins labeled V_P and V_N are connected to the VP_0 and VN_0 dedicated analog inputs of
the FPGA. This pair of pins can also be used as a differential analog input with voltage between
0-1V, but they cannot be used as Digital I/O. The capacitor in the circuit shown in Figure 16.2.2
for this pair of pins is loaded on the Arty Z7.
Figure 16.2.2. Differential Analog Inputs.
