Chapter 6: Boot and Configuration
PL Initialization and Configuration Registers
There are several control and status bits in the devcfg register space that the PS software can use to
initialize and configure the PL. These are listed in Table 6-23.
X-Ref Target - Figure 6-19

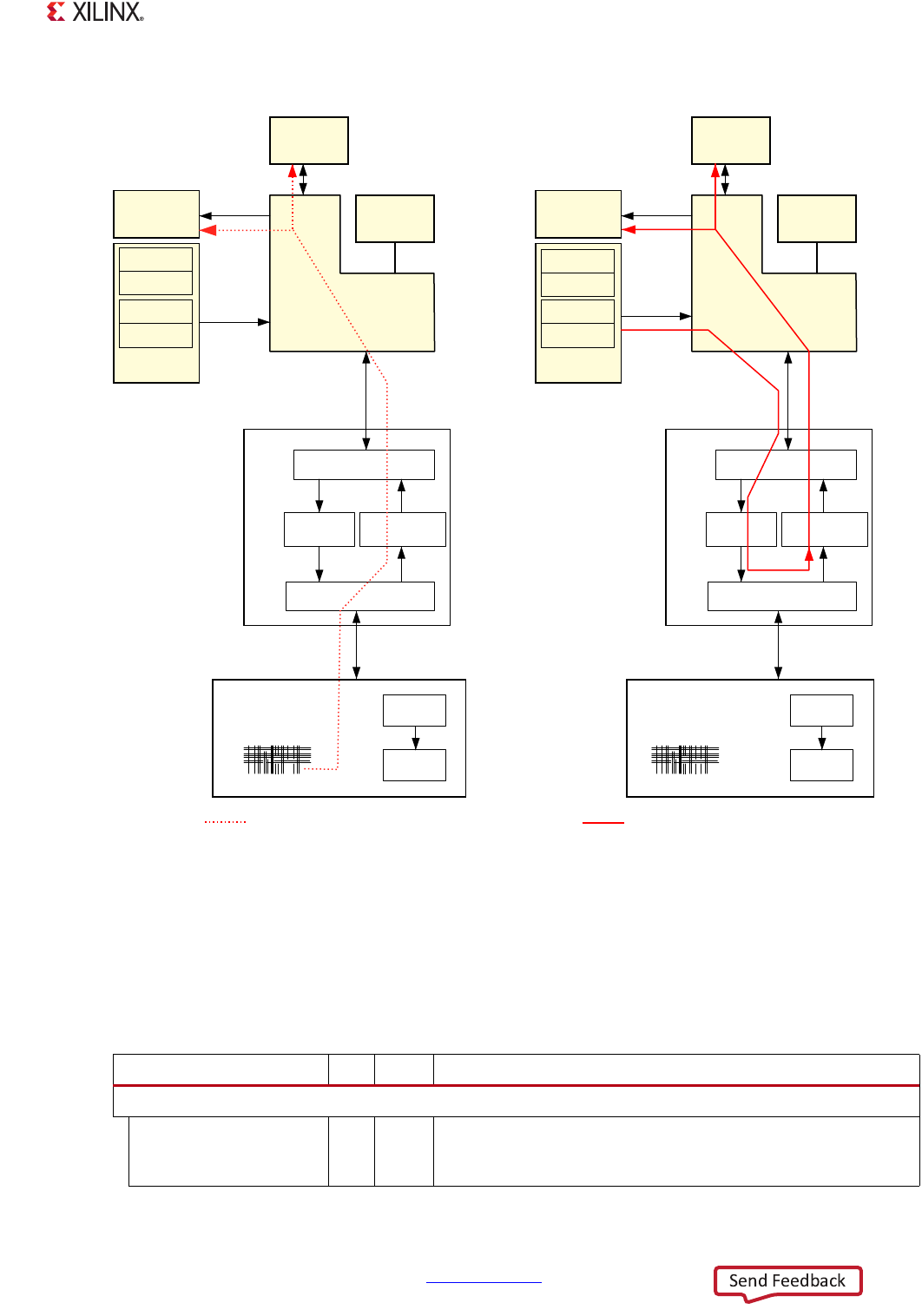

Figure 6-19: PL Bitstream Readback and PCAP Loopback Diagrams
3/%LWVWUHDP5HDGEDFN3DWK
3&$3%ULGJHLQ'HY&
8*BFBDB
2&0
,23
1$1'
125
463,
&38
$;,ZLWK'0$
5HFHLYHU
),)2
7UDQVPLWWHU
),)2
3&$3,QWHUIDFH
$(6
+0$&
3/&RQILJXUDWLRQ0RGXOH
6'FDUG
3/%LWVWUHDP
5HDGEDFN
3&$3%ULGJHLQ'HY&
2&0
,23
1$1'
125
463,
$;,ZLWK'0$
5HFHLYHU
),)2
7UDQVPLWWHU
),)2
3&$3,QWHUIDFH
3/&RQILJXUDWLRQ0RGXOH
6'FDUG
3&$3/RRSEDFN'DWD3DWK
36$;,
,QWHUFRQQHFW
'5$0
&38
36$;,
,QWHUFRQQHFW
'5$0
25
3&$3
/RRSEDFN
25
Fabric
$(6
+0$&
Fabric
Table 6-23: PL Control and Status Register Bits
Bit Field Bit Type Description
devcfg.CTRL
[PCFG_PROG_B] 30 RW
PL Reset Control. Similar to pulsing the PROGRAM_B pin
High-Low-High.
0: PL held in reset. 1: PL released from reset.
