Zynq-7000 AP SoC Technical Reference Manual www.xilinx.com 252
UG585 (v1.11) September 27, 2016
Chapter 9: DMA Controller
9.1.2 System Viewpoint
The system viewpoint of the DMA controller is shown in Figure 9-1.
System Functions
The following system functions are described in section 9.6 System Functions:
•Clocks
• Resets and Reset Configuration
DMA Controller Functions and Programming
A block diagram for the DMA controller is shown in Figure 9-2. A brief description of each block
follows the diagram. Each functional unit is described in detail in these three main sections:
• Overall description in section 9.2 Functional Description.
• SDK Software programming methods are in section 9.3 Programming Guide for DMA
Controller.
• DMA Engine programming methods are in section 9.4 Programming Guide for DMA Engine.
• Programming restrictions for these methods are in section 9.5 Programming Restrictions:
X-Ref Target - Figure 9-1

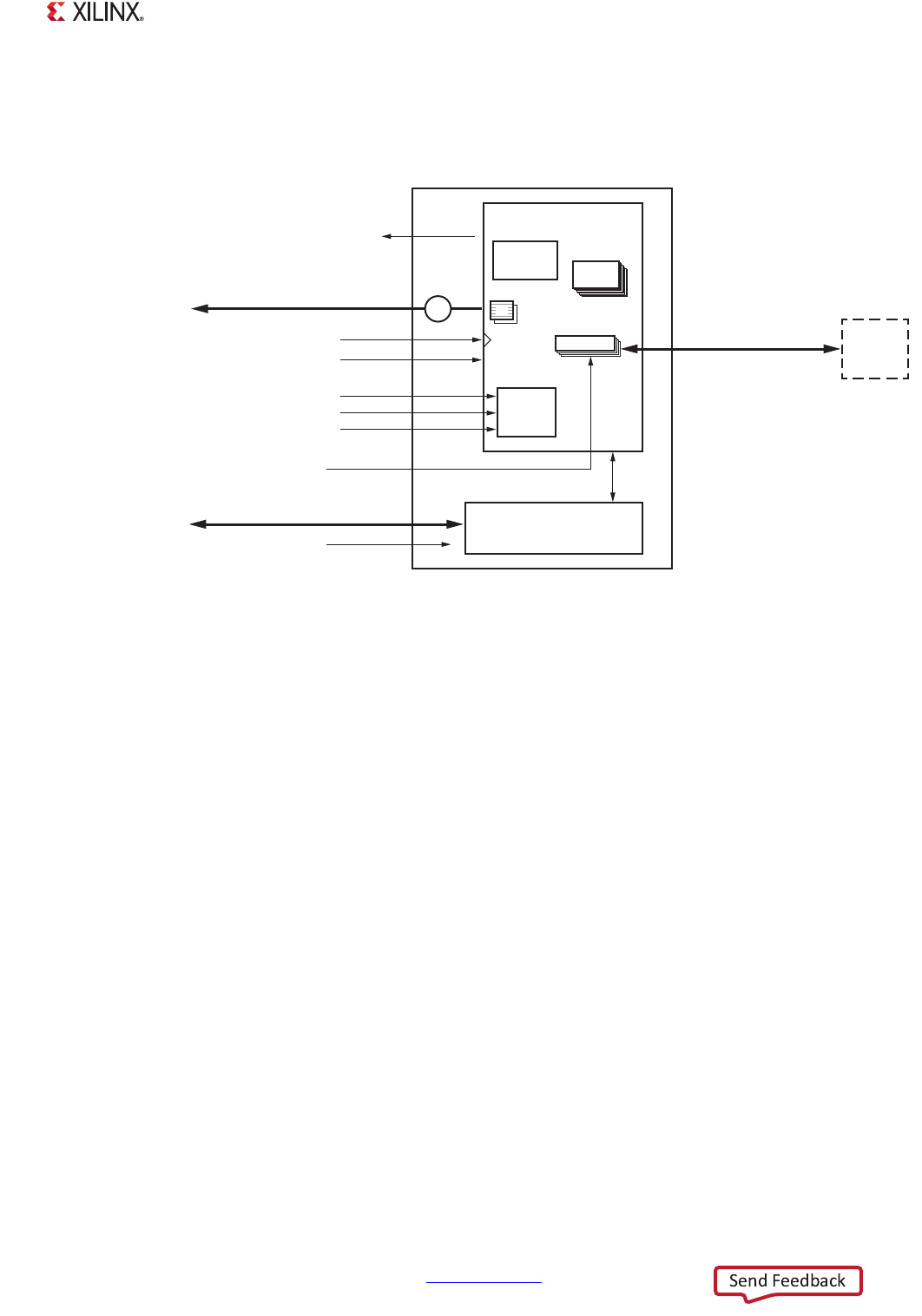

Figure 9-1: DMA Controller System Viewpoint
PL
Slave Interconnect
Register Access
APB 32-bit
Control and Status
Registers
UG585_c9_01_021113
DMAC_CPU2X_RST signal
Secure and
Non-Secure
Slave Ports
FPGA_DMA{0:3}_RST signal
CPU_1X clock
Central Interconnect
Data and Controller
Instructions
AXI 64-bit Master
CPU_2X clock
QoS
R/W
8
Peripheral Request
Interfaces 0 ~ 3
DMA Controller
DMA{0:3}_DAVALID
DMA{0:3}_DATYPE{0,1}
DMA{0:3}_DAREADY
DMA{0:3}_DRVALID
DMA{0:3}_DRTYPE{0,1}
DMA{0:3}_DRLAST
DMA{0:3}_DRREADY
Channels
0 ~ 7
Execution
Engine
TZ_DMA_NS [0]
TZ_DMA_IRQ_NS [15:0]
TZ_DMA_PERIPH_NS [3:0]
Security
Control
IRQ ID# {45, 46~49, 72~75}
To Interrupt Controller
IRQ ID# {25, 20~27}
To PL
