Zynq-7000 AP SoC Technical Reference Manual www.xilinx.com 334
UG585 (v1.11) September 27, 2016
Chapter 11: Static Memory Controller
11.4 Wiring Diagrams
The SMC supports the configurations shown in Figure 11-3, Figure 11-4, and Figure 11-5. The
NOR/SRAM mode of the SMC can support two devices (NOR and/or SRAM) using chip selects 0
and 1.
X-Ref Target - Figure 11-3

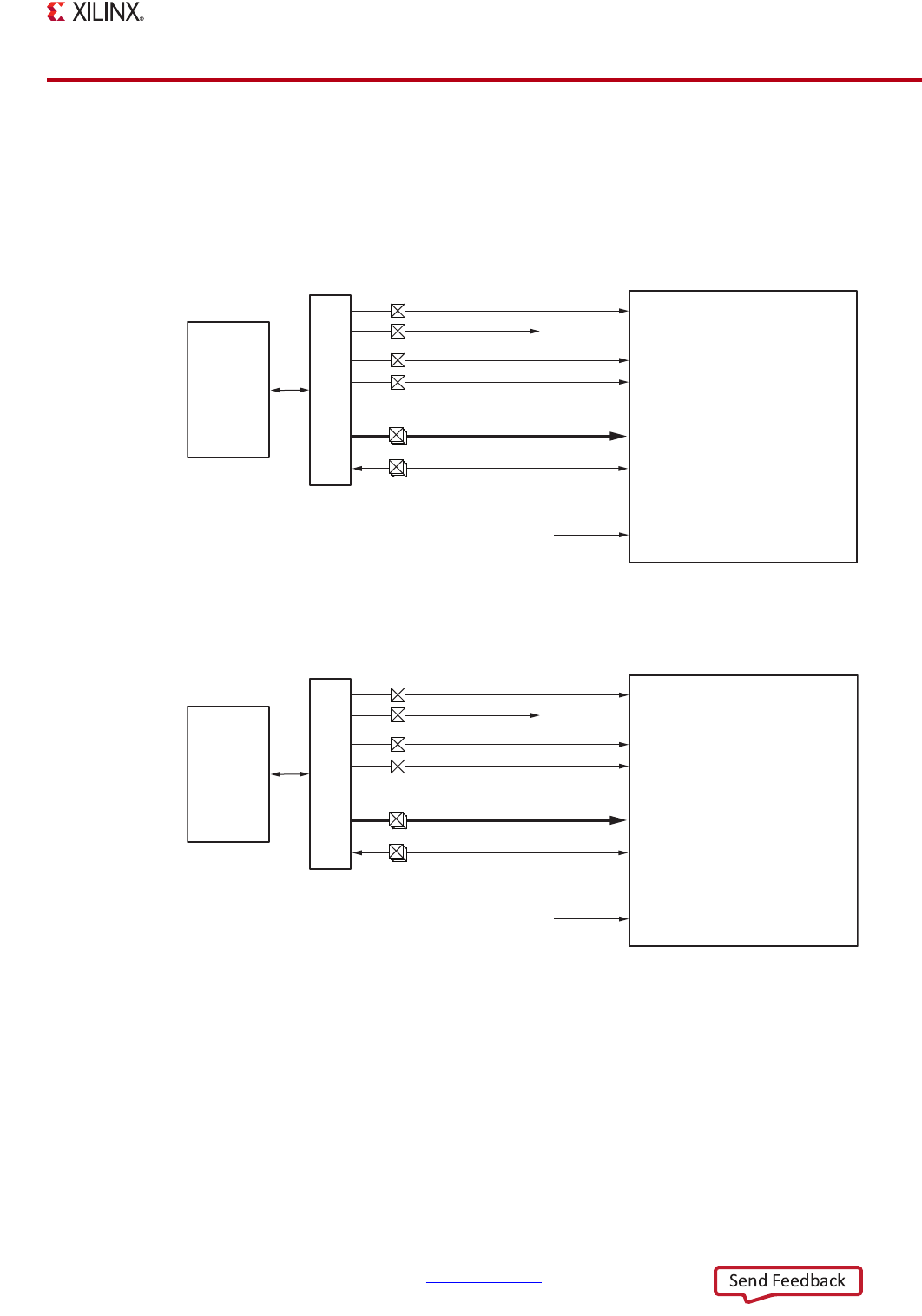

Figure 11-3: NOR Device Wiring Diagram
X-Ref Target - Figure 11-4
Figure 11-4: SRAM Device Wiring Diagram
SRAM_CE_B0
MIO
Multiplexer
SRAM_CE_B1
SRAM_OE_B
SRAM_BLS_B
SRAM_DQ[7:0]
NOR Device
SRAM_A[24:0]
Zynq Device
Boundary
CEn
OEn
WEn
DQ[7:0]
A[24:0]
NOR or SRAM
Device
RESETn
System Reset#
SMC
Controller
UG585_c11_03_102014
SRAM_CE_B0
MIO
Multiplexer
SRAM_CE_B1
SRAM_OE_B
SRAM_BLS_B
SRAM_DQ[7:0]
SRAM Device
SRAM_A[24:0]
Zynq Device
Boundary
CEn
OEn
WEn
DQ[7:0]
A[24:0]
NOR or SRAM
Device
RESETn
System Reset#
SMC
Controller
UG585_c11_04_102014
