Chapter 17: SPI Controller
17.5.2 Back-to-Back Transfers
(See Figure 17-6.)
Slave Mode Requirements
In slave mode, the controller can accept back-to-back transfers.
Master Mode Options
• Auto SS, auto start (order these four starting with importance and include cross-reference for
each)
• Auto SS, manual start
• Manual SS, auto start
• Manual SS, manual start
X-Ref Target - Figure 17-5

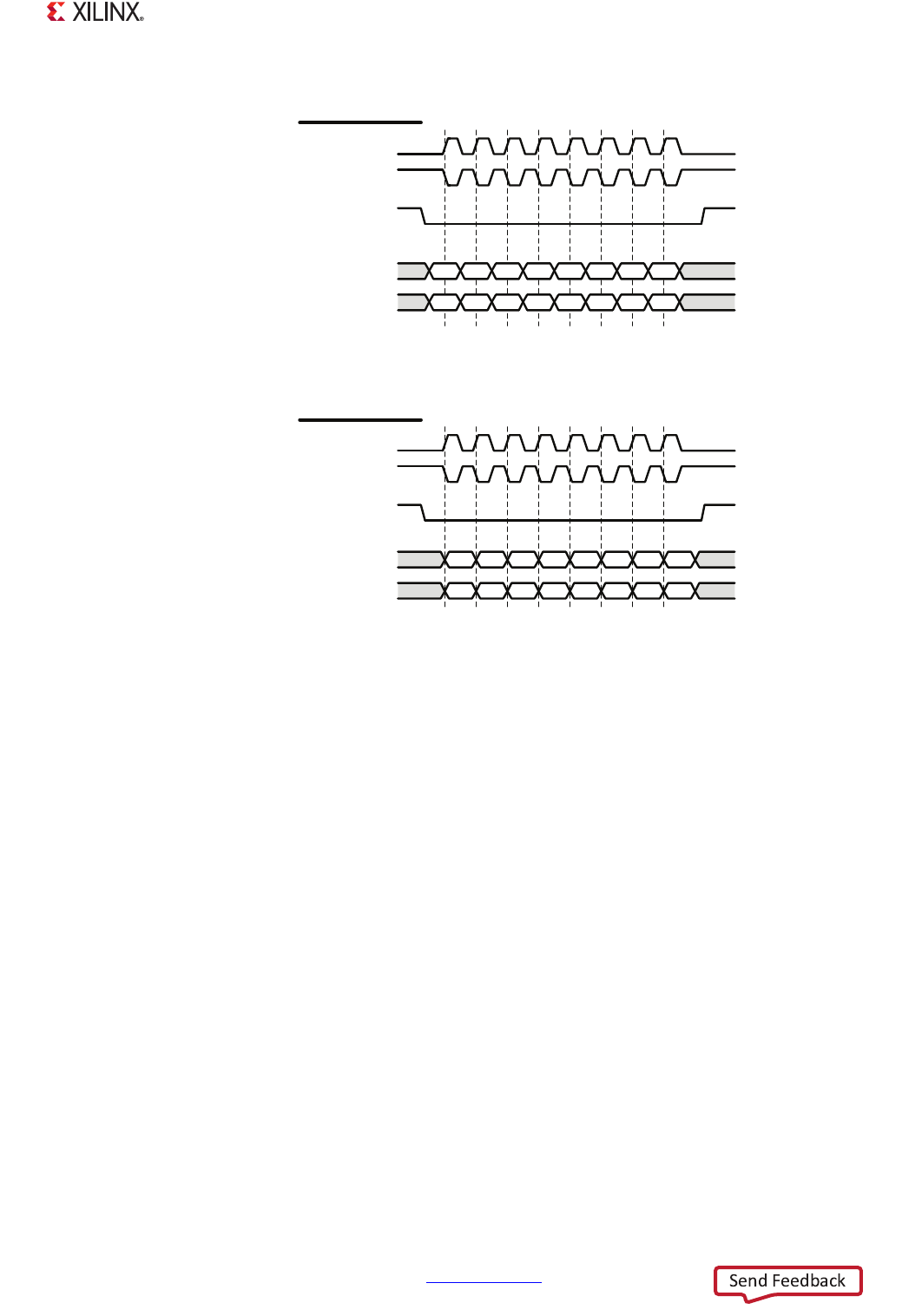

Figure 17-5: SPI I/O Signal Waveforms for Clock Phase and Polarity
UG585_c17_05_022613
MISO
SS
SCLK
0 1 3 42 5 76
0 1 3 42 5 76
MOSI
CLK_PH = 1
MISO
SS
SCLK
0 1 3 42 5 76
MOSI
0 1 3 42 5 76
CLK_PH = 0
