Zynq-7000 AP SoC Technical Reference Manual www.xilinx.com 664
UG585 (v1.11) September 27, 2016
Chapter 23: Programmable Logic Test and Debug
No Cycle Count Case – Trace Enabled, Cycle Count Disabled
This is similar to the preceding case, except that cycle count packets are not generated.
FIFO Overflow Case – Lost Trace
In this scenario, trace packets are not generated until the FIFO is no longer in an overflow condition.
An overflow packet is generated to indicate that there was an overflow condition and some trace
packets are lost.
X-Ref Target - Figure 23-3

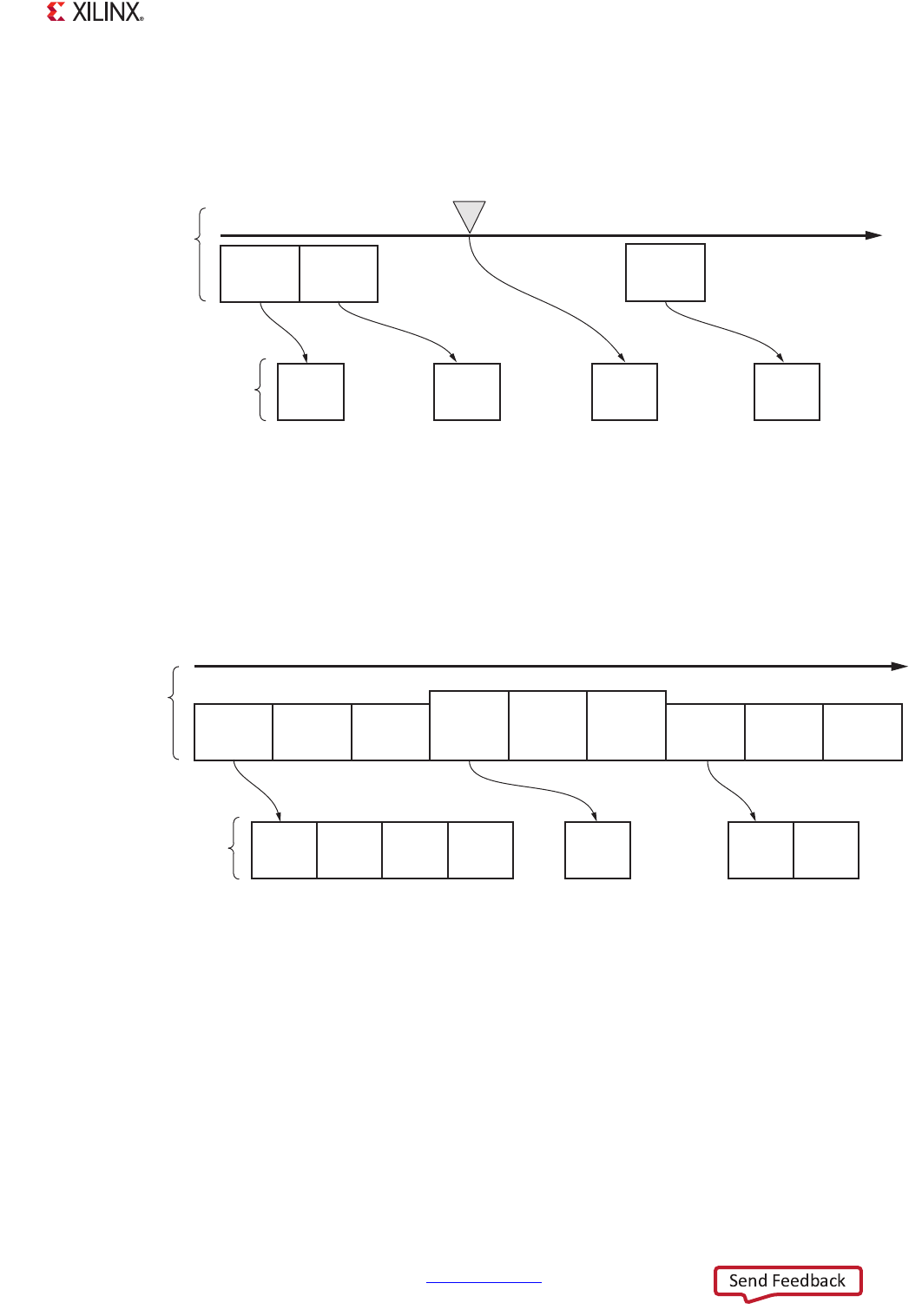

Figure 23-3: Packet Generation, No Cycle Count Case
X-Ref Target - Figure 23-4
Figure 23-4: Packet Generation, FIFO Overflow Case
PL Trace
Valid
Trace
Packet
PL Trace
Valid
UG585_c23_03_030312
PL Trace
Valid
PL
Activity
Packets
Generated
Time
Trigger
Trigger
Packet
Trace
Packet
Trace
Packet
PL Trace
Valid
Trace
Packet
Cycle
Count
Packet
PL Trace
Valid
PL Trace
Valid
UG585_c23_04_030712
PL Trace
Valid
(lost)
PL Trace
Valid
(lost)
PL Trace
Valid
(lost)
PL Trace
Valid
PL Trace
Valid
PL Trace
Valid
PL
Activity
Packets
Generated
Time
Overflow
Packet
Trace
Packet
Cycle
Count
Packet
Trace
Packet
Cycle
Count
Packet
