Zynq-7000 AP SoC Technical Reference Manual www.xilinx.com 688
UG585 (v1.11) September 27, 2016
Chapter 25: Clocks
25.6 IOP Module Clocks
The IOP module clock (used for the internal controller logic) can be generated by the clock
subsystem or, in some cases, the IOP's external interface. In all cases, the IOP's control and status
registers are clocked by its AMBA interface clock (CPU_1x). Sometimes the CPU_1x clock is the only
clock used by the IOP.
Each clock is discussed in more detail in the following sections and in the system functions section
of each chapter.
• USB: ULPI PHY interface clock input on MIO.
• Ethernet: Clock generator or EMIO. For Rx, can be clocked by RGMII clock input on MIO.
• SDIO: Clock generator.
• SMC: Clock generator.
• SPI: Clock generator.
• Quad-SPI: clock generator.
• UART: Clock generator.
• CAN: Clock generator or MIO pin.
• GPIO: AMBA APB CPU_1x clock.
• I2C: AMBA APB CPU_1x clock and SCL interface clock.
25.6.1 USB Clocks
The USB controller module clock is generated externally and input on the ULPI PHY interface on MIO
as shown in Figure 25-6. USB clocks are described in section 15.15.1 Clocks.
X-Ref Target - Figure 25-6

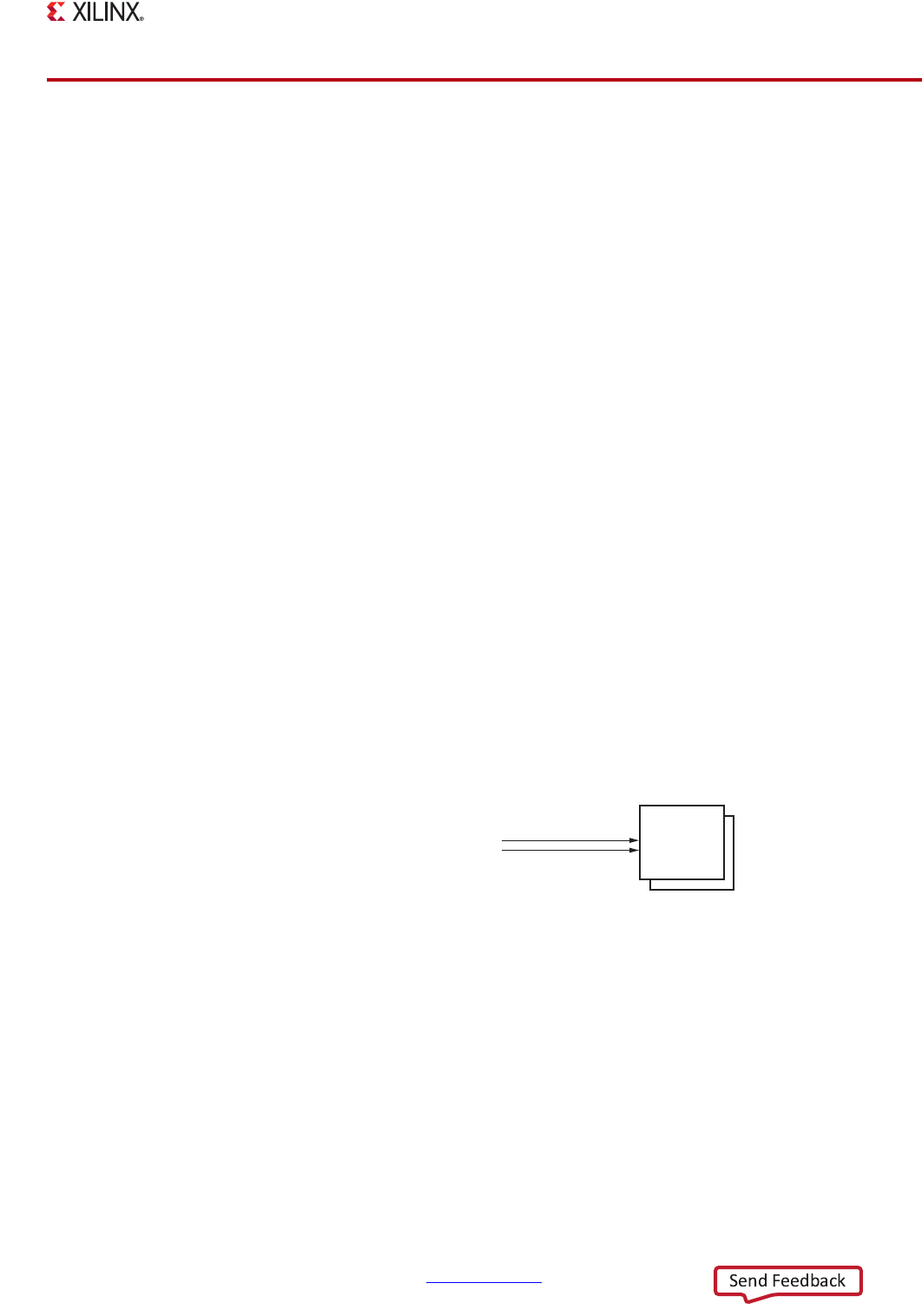

Figure 25-6: USB Clocks
UG585_c25_06_102414
USB
Controller
USB PHY Interface Input Clock
(from MIO)
