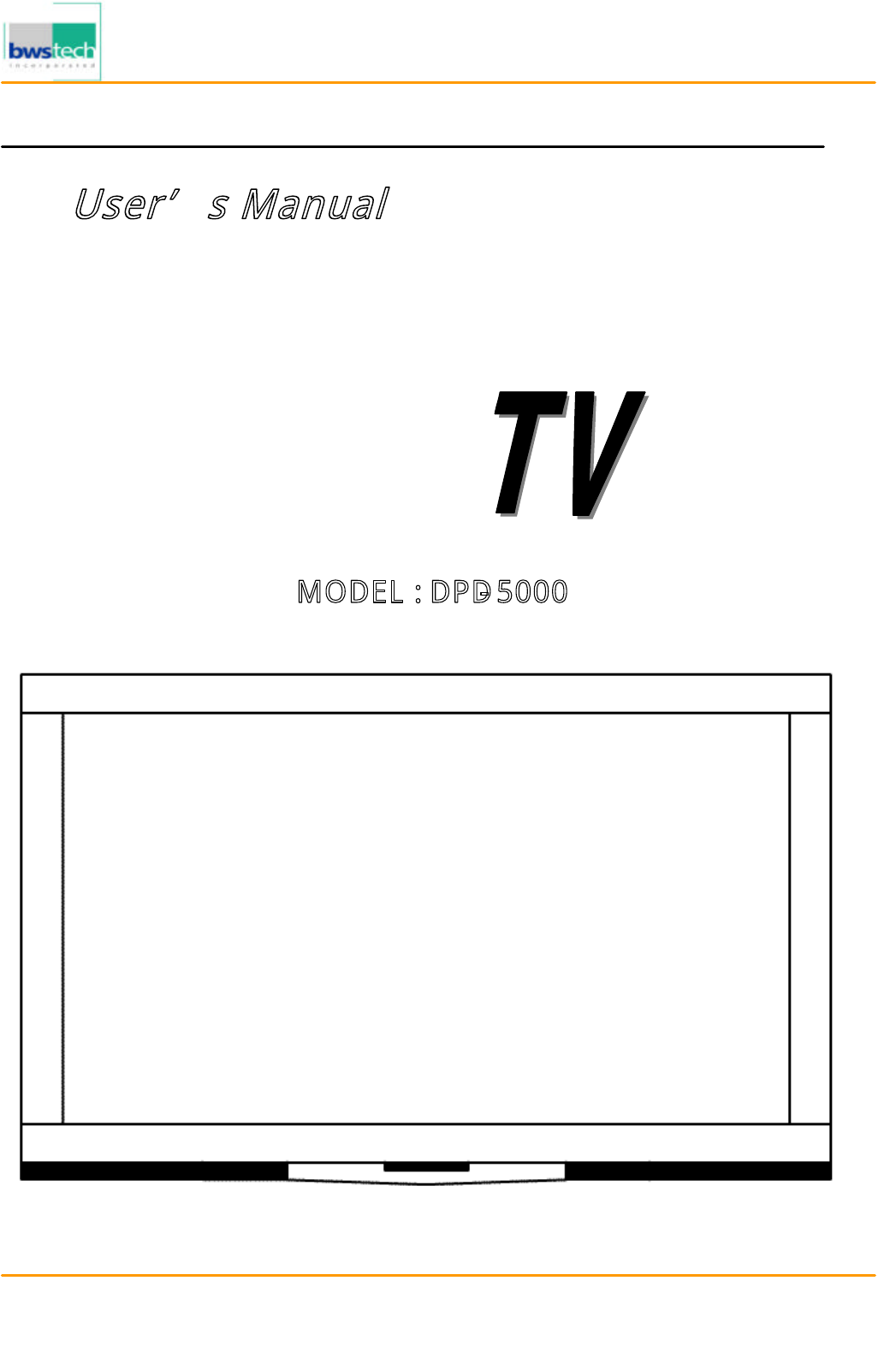

Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Appendix 6. User Manual User’ s Manual PLASMA DISPLAY MODEL : DPD- 5000 It ’s t he c r eat i ve wor l d of pl asm a di spl ay Digit al Device Inc.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 WARNING RISK OF ELECTRICAL SHOCK, DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRICAL S H O C K , D O N O T R E M OVE COVER(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL .
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Manual Contents Manual C ontents 3 Features and Pac kage C ontents - Features 4 - Packages C ontents 4 I/O Definitions Front and Rear C ontrols 5 - Front 6 - Rear C ontrols 6 - Remote Control Basic 7 - Remote Control Details 8 - AV Input/Ouput Terminal 10 - TV 10 - Video 10 - S- VHS 11 - SCART 11 - Monitor Out C onnection 12 - C omponent Video 12 - PC 13 - E xternal S peaker & Headphone C onnec tion
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Features and Package Features - 42" Diagonal Viewing Area - Menu driven On Screen Display (OSD) for Brightness and C ontrast, S harpness, Hue and S aturation , NTS C /PAL, C hannel, PIP(Pic ture in Pic ture), Aspec t Ratio, Input S ourc e, Audio, Audio Adjust, Language, C olor Temperature - Cable TV ready - IR Remote control for all functions - Built- in Television Tuner - Zoom Feature (up to 500%) - Freeze Picture Feature - Rotat
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Front Panel Control s - Main Power ON/OFF - Power ON/OFF - Channel UP - Channel DOWN - Volume UP - Volume DOWN - AV Rear Unit I/O's - AC Power Input - F- Type (NTSC) or Din- Type (PAL) C onnector for Antenna Input - Monitor C omposite Video Output - Monitor Line Level Audio Output - S- VHS Input - Composite Video Input (2) - Line Level Audio Input (2) - SCART Input/Output - DVD Component Video Input - DVD Line Level Audio Input -
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 AV CH Down/Up /Main Power LED / Remote Vol Down/Up Po wer Control Rear Controls The rec essed AV input/output terminals allow the user to have the option of us ing the AV Input/Output Terminal mounting stand or wall mounting the 42" Plasma Television. The television itself is only 95mm wide. Remote Control Remote Control Basic Digit al Device Inc.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 POWER AV Button s Pressing this button ( PC / VIDEO1 / turns the television VIDEO2 / VIDEO3 / ON and OFF. TV ) Use this button for signal CH/VOL BUTTONS These buttons are used to adjust the c hannel selec ted and the volume Number Buttons level. Used to enter c hannels s elec ted. Menu Button The c enter button is used to pull up the menu s c reen.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 STILL Pressing this button will stop/freeze the pic ture. SLEEP This button allows the user to set the sleep timer. RECALL This button will allow the user to view the setting s tatus . STEREO MUTE Allows MONO, S TE RE O or This button mutes S AP mode selec tion. the televisions sound. ZOOM Pressing the up and down buttons allows the us er to zoom in or out the pic ture. Remote Control Digit al Device Inc.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 PIP ON/OFF Pressing this button toggles pic ture in pic ture on and off. SWAP CH ▲ /▼ This button allows the Pressing this button up user to swap the pic ture or down allows in pic ture for pic ture on c hannel selec tion of the main sc reen. the pic ture in pic ture.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 2. TV 1.3. C onnec t as the shown drawing. VIDEO 2. Power on. 3. Press the [ TV] button. 1. C onnec t as the shown drawing. Basic Operation 2. Power on. 3.4. Press [ VIDEO1] or [ VIDE O2] button. S - the VHS Digit al Device Inc.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 1. C onnec t as the shown drawing. 2. Power on. 3. Press the [ VIDEO1] button. Audio input must be c onnec ted with [ Video1] . In the c ase when all input sourc es of S - VHS 5. SCART Connection and Video1 Port are oc c upied, S - VHS input S ourc es display prec eding to Video1 Port. 1. C onnec t as the shown drawing. 2. Power on. 3. Press the [ VIDEO2] button.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 6. MONITOR OUT Connection Monitor out is only applied to [ TV] , [ VIDEO1] , [ VIDEO2] . 7. COMPONENT Video (ex. DVD, DTV Set - top Box) 1. C onnec t as the shown drawing. 2. Power on. 3. Press the [ VIDEO3] button. Basic Operation Digit al Device Inc.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 8. PC 1. C onnec t as the shown drawing. 2. Power on. External 3.9. Press the [ PC ] Speaker button. & Headphone Connection 1. Power Off. 2. Connec t as the shown drawing . 3. Power on. 4. Adjusting Audio setting. TV Channel Memory Headphone outputs S ub- S ig nal S ounds . Digit al Device Inc.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Auto Channel Memory F ollow these steps for setting the C hannel Memory automatic ally: • Press the [MENU] button. ‚ Se le ct [Channe l] by the [ ]/[ ] butt ons. ƒ Select [Status] by pressing the [NEXT] button. „ Select TV signal input mode by pressing the [ADJUST] button. … Select [Auto Channel] by pressing the [NEXT] button. † Select [ON] by pressing the [ADJUST] buttons.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Manual Channel Memory F ollow these steps to manually set the C hannel Memory : • Sele ct the channe l by pressing the number button(s). ‚ Press the [MENU] button. ƒ Select [Channel] by the [ ]/[ ] butt ons. „ Select [Fine Tuning] mode by using the [NEXT] button. … Press the [ADJUST] button for the tuning adjustment. † Sele ct [Memory] by us ing the [N EXT] button.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Picture Adjustment F ollow these steps to adjust the pic ture : • Press the [MENU] button. ‚ S e lect the desired Mode by using the [ ]/[ ] butt ons. ƒ Move to the desired Mode by pressing the [NEXT] button. „ Press the [ADJUST] button for adjusting the picture … Press the [MENU] button to exit the adjustment menu. ※ Highlighted c hoic e will be in green. Picture Digit al Device Inc.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Picture Size Adjustment F ollow these steps to adjust the pic ture size : • Press the [MENU] button. ‚ Select the Aspect Ratio by using the [ ]/[ ] butt ons. ƒ Move to the desired Mode by pressing the [NEXT] button. „ Press the [ADJUST] button to adjust th e picture size ratio. … Press the [MENU] button to exit Picture Size Adjustment. ※ Highlighted c hoic e will be in green.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Picture Adjustment in PC Mode F ollow these steps to adjust the pic ture in PC Mode : • Press the [MENU] button. ‚ Sel ect the des ire d Mode b y using the [ ]/[ ] butt ons. ƒ Move to the desired Mode by pressing the [NEXT] button. „ Press the [ADJUST] button for adjusting the picture in PC Mode … Press the [MENU] button to exit the adjustment menu. ※ Highlighted c hoic e will be in green. Picture Digit al Device Inc.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Picture Size Adjustment in PC Mode F ollow these steps for setting the Pic ture S ize Adjustment of PC Mode. • Press the [MENU] button. ‚ Se le ct the N ormal Scal i ng Mod e s b y us i ng t he [ ]/[ ut tons . ƒ Move to the desired mode by pressing the [NEXT] button. „ Press the [ADJ UST] b utton to select the proper mode. … Press the [MENU] button to exit the adjustment menu. ※ Highlighted c hoic e will be in green.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Audio Mode Setting F ollow these steps for setting S ound Mode : • Press the [MENU] button. ‚ Select the Audio by using the [ ]/[ ] butt ons. ƒ M ove to the desired Mode by pressing the [NEXT] button. „ Press the [ADJUST] button to make the adjustment for Sound … Press the [MENU] button to exit the adjustment menu. ※ Highlighted c hoic e will be in green. Audio Digit al Device Inc.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Audio Adjustment F ollow these steps to adjust the S ound : • P r e ss the MENU button. ‚ Select the Audio Adjust by using the [ ]/[ ] b ut tons . ƒ Move to the desired Mode by pressing the [NEXT] button. „ Press the [ADJUST] button to make the adjustment for Sound … Press the [MENU] button to exit the adjustment menu . ※ Highlighted c hoic e will be in green. BAS S : C hanges the level of low frequenc y sound.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Picture in Picture Mode Setting • Press the [MENU] button. ‚ Select Picture in Picture by using the [ ]/[ ] button. ƒ Select PIP size mode by pressing the [NEXT] button. „ Move to desired mode by p ressing the [ADJUST] button. … Select PIP Source Mode by pressing the [NEXT] button. † Select PIP Source by pressing the ADJUST button. ‡ Press the [MENU] button to exit the adjustment menu.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Video Signal Format Press the [PIP ON/OFF] button. Watching PIP Press the [PIP AV] button. Changing the Sub Picture to AV Press the [ ▲ CH ▼ ] button. Changing the Sub Picture Channel Press the [POS] button. Changing the Sub Picture Position PIP at PC Mode Press the [SWAP] button. PC s ig nal c an be s een on the main pic ture but not on the sub picture. AT 800× 600 mode, you can optimize PIP.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Video Signal Format Setting F ollow these steps for setting the Video S ignal F ormat. • Press the [MENU] button. ‚ Select the Video Mode by using the [ ]/[ ] butt ons. ƒ Move to the desired system by pressing the [NEXT] button. „ Press the [ADJUST] button to select the desire d s ystem. … Press the [MENU] button to exit the adjustment menu. ※ Highlighted c hoic e will be in green.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Color Temperature Setting F ollow these steps for setting the C olor Temperature. • Press the [MENU] button. ‚ Select the Color Temperature by using th e [ ]/[ ] butt ons. ƒ Move to the desired mode by pressing the [NEXT] button. „ Press the [ADJUST] button to select the desired mode. … Press the [MENU] button to exit the adjustment menu. ※ Highlighted c hoic e will be in green.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Power Source AC100V~ 240V, 50/60㎐ Power Consumption < 350W (Typical) Display Panel S creen S ize 1106.5(H) x 622.
Report No: BWS-03-EF-0019 FCC ID : PQZDPD-5000 Date of Test : April 17, 2003 Symptom No Power Cause Power to the TV is not Possible Solution Check source of power to the TV. plugged in. Unit will not respond to Sens or is blocked. Clear path for sensors. remote control Batteries in remote control Clean sensor lens. are weak. Replace batteries. Video source incorrect. Check video source connection. No signal is displayed Make sure TV is set to correct video source.
