5.4.22 Roller Guide 1 (P/N 29-24101-00)
To remove roller guide 1, refer to Figure 5–25 and proceed as follows:
1. Remove the screw attaching the roller guide , then remove the roller guide.
2. If there are any shims between the roller guide and the mounting plate , save them.
NOTE
Any shims removed from the location of roller guide 1 must be used again
when replacing the roller guide. Do not swap shims between rollers.
To replace roller 1, perform the removal procedure in reverse order and adhere to the following
note.
NOTE
If you saved any shims when you removed the roller guide, place them
between the roller guide and the mounting plate .

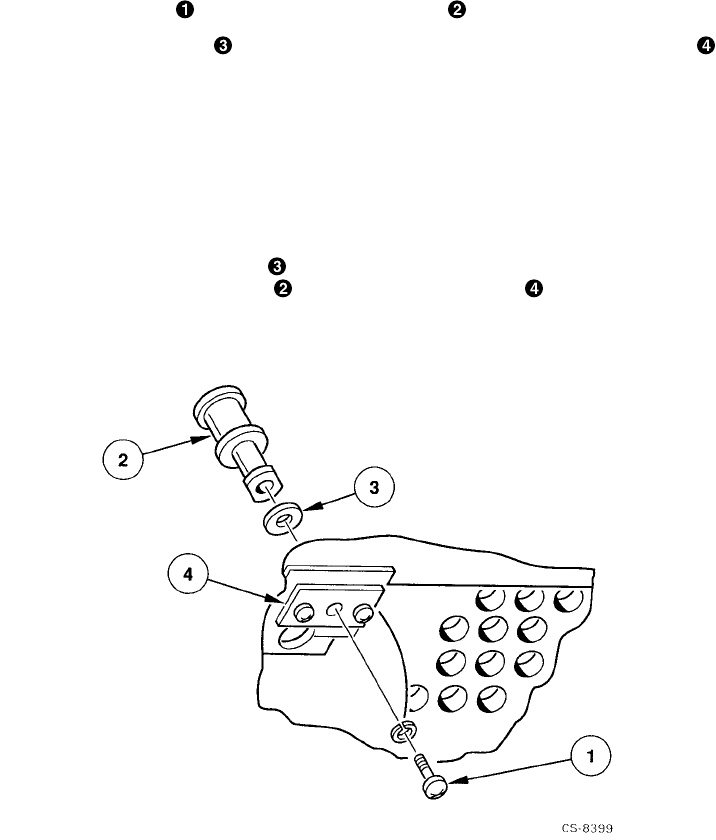

Figure 5–25: Removing Roller Guide 1
