5.4.23 Roller Guide 2
For removal and replacement instructions for roller guide 2, refer to Section 5.4.34.
5.4.24 Roller Guide 3 or 4 (P/N 29-24081-00)
To remove roller guide 3 or 4, refer to Figure 5–26 and proceed as follows:
1. Remove the screw securing the roller guide , then remove the roller guide.
To replace roller guide 3 or 4, perform the removal procedure in reverse order.

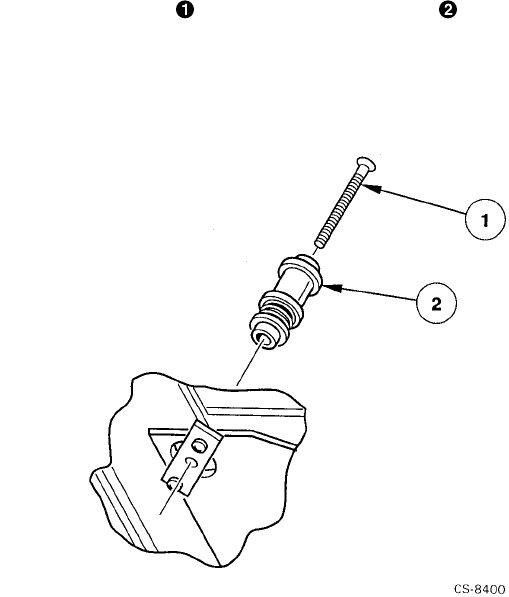

Figure 5–26: Removing Roller Guide 3 or 4
