5.4.27 Supply Hub (P/N 29-24077-00)
To remove the supply hub, refer to Figure 5–29 and proceed as follows:
1. Rotate the supply hub until the two screws that secure the supply hub to the motor
shaft are facing toward the front door.
2. Loosen the two screws , then remove the supply hub.
To replace the supply hub, proceed as follows:
1. Install the supply hub on the motor shaft, but do not tighten the two screws.
2. Perform the Supply Hub Adjustment (refer to Section 6.4).

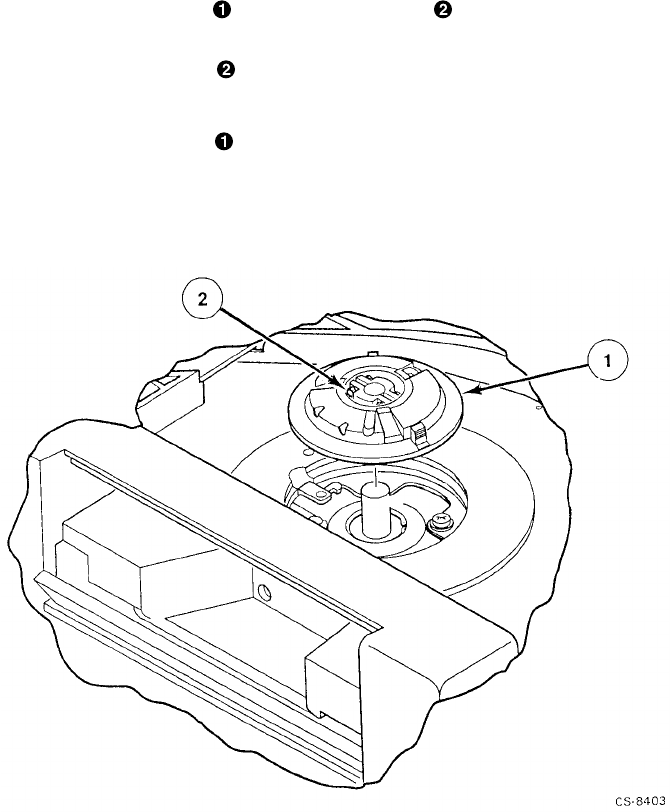

Figure 5–29: Removing the Supply Hub
5–46 Removal/Replacement Procedures
