5.4.28 Supply Hub Bell Crank
To remove the supply hub bell crank, refer to Figure 5–30 and proceed as follows:
1. Remove the supply hub (refer to Section 5.4.27).
2. Remove the clip securing the supply hub bell crank to the supply motor, then remove
the bell crank.
To replace the supply hub bell crank, proceed as follows:
1. Perform the removal procedure in reverse order.
2. To ensure that the hub lock functions properly, run Service Aid 132 (refer to Sec-
tion 4.5.2.4).

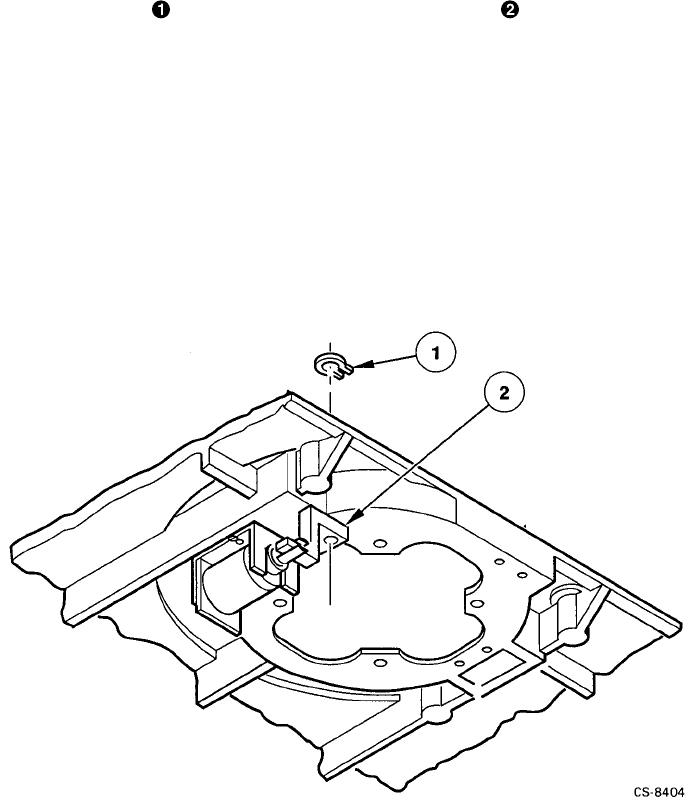

Figure 5–30: Removing the Supply Hub Bell Crank
Removal/Replacement Procedures 5–47
