5.4.32 Tape-In-Path Receiver (P/N 29-24093-00)
To remove the tape-in-path receiver, refer to Figure 5–34 and proceed as follows:
1. Disconnect the connector from the tape-in-path receiver .
2. Remove the screw attaching the tape-in-path receiver to the deck plate, then remove
the receiver.
To replace the tape-in-path receiver, proceed as follows:
1. Perform the removal procedure in reverse order.
2. Check that the sensor functions properly using Service Aid 131 (Section 4.5.2.3).

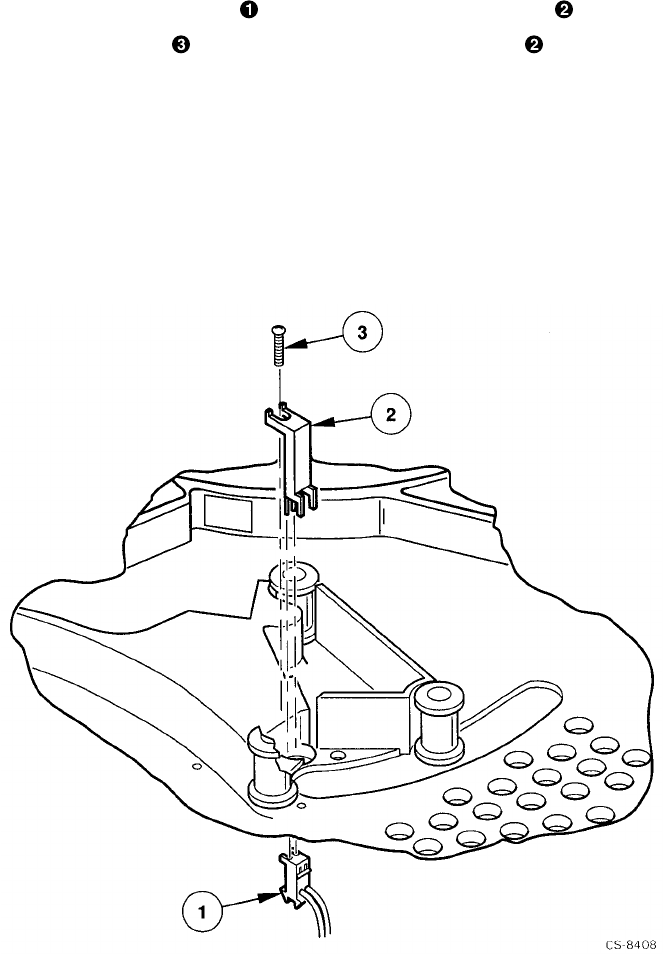

Figure 5–34: Removing the Tape-in-Path Receiver
