6.4 Supply Hub Adjustment
The supply hub adjustment is used to set the vertical position of the supply hub on the supply
motor shaft so that tape is wound and rewound properly on a loaded reel. To perform this
adjustment, proceed as follows:
1. Refer to Figure 6–4 and then loosen the two screws securing the supply hub to the
supply motor shaft.

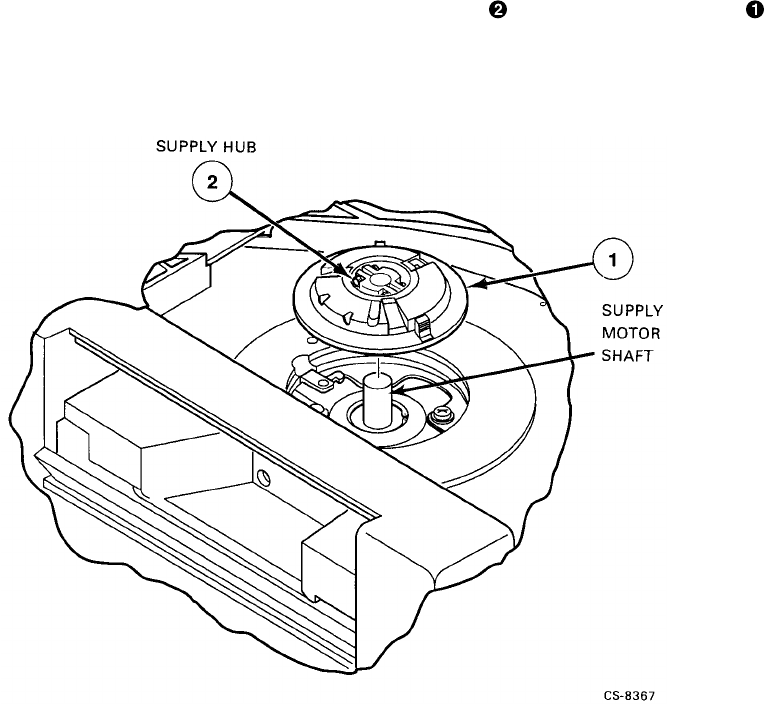

Figure 6–4: Location of Supply Hub Screws
2. Position the supply hub until the top of the supply motor shaft and the base of the supply
hub dwell are aligned as shown in Figure 6–5.
3. Tighten the two locking screws.
4. Load a scratch tape.
5. Run the tape to EOT then back to BOT using Service Aid 222 in the Robot Mode. For
details on Service Aid 222, refer to Section 4.5.3.3.
Adjustment Procedures 6–7
