6. After the tape has been completely unwound and rewound back on the supply reel, check
that the tape is vertically centered on the supply hub (top or bottom of the tape should not
be rubbing on the reel). If the tape is centered, the adjustment is correct; if not, proceed
as follows:
a. Unload the tape.
b. Loosen the two screws on the supply hub.
c. Move the hub up or down as necessary on the motor shaft.
d. Retighten the screws, then go back to step 4.

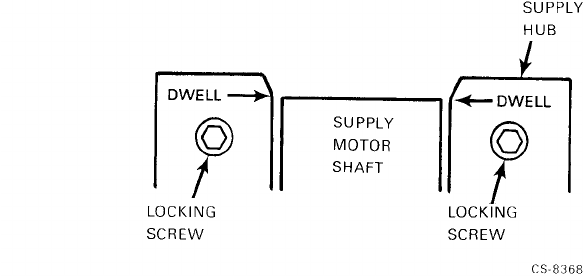

Figure 6–5: Aligning Motor Shaft with Supply Hub Dwell
