5.2.2 Operator Access for the Table-Top Drive
To place the tape drive in the operator access position, proceed as follows:
NOTE
Step 1 applies to early versions of the TSZ07 which have latches that engage
the top cover. If these latches are not present, proceed to step 2.
1. Push down on the top front corners to release the latches, then lift the enclosure lid.
2. Raise the top cover and place the cover retainer arm in the recess next to the tape path.
To close the enclosure, proceed as follows:
1. Fold the cover retaining arm out of the way and close the top cover of the tape drive.
2. Close the enclosure lid by pushing down on the top front corners of the enclosure lid until
the latches lock.

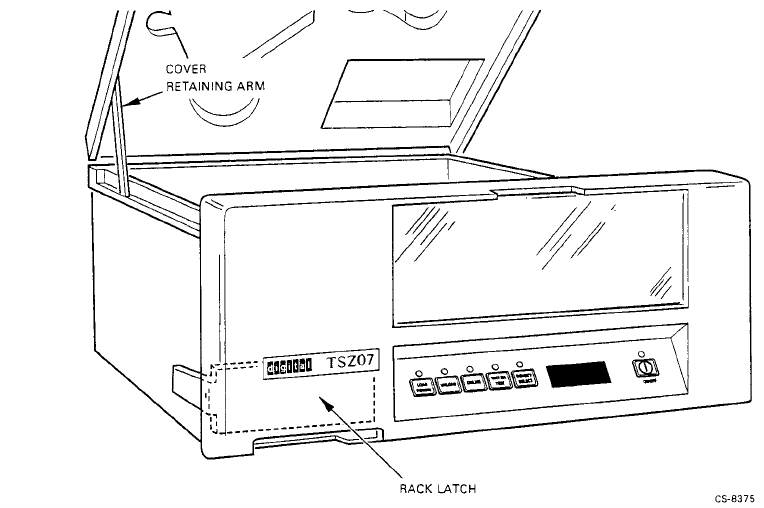

Figure 5–1: Operator Access Position
Removal/Replacement Procedures 5–5
