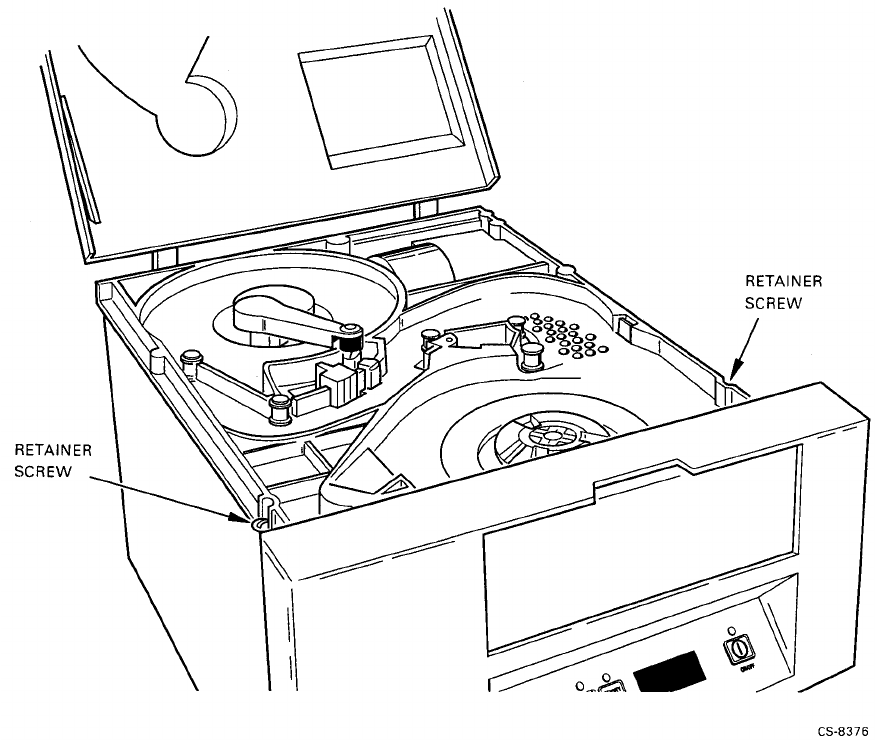

Figure 5–2: Location of Retaining Screws
5. Fold the cover retaining arm out of the way and then close the top cover.
6. While grasping the bottom of the front panel, lift upward. When the gas strut is fully
extended, the safety support automatically locks the deck plate in the service access
position. The service access position is shown in Figure 5–3.
WARNING
Do not service the drive unless the safety support is set against the gas
strut shaft.
Removal/Replacement Procedures 5–7
