5.4.2 Control Switch Circuit Board (P/N 29-28463-01)
To remove the control switch circuit board, see Figure 5–5 and proceed as follows:
1. Remove the front panel display circuit board (refer to Section 5.4.8).
2. Remove two nuts to remove control switch circuit board .
To replace the control switch circuit board, follow the removal procedure in reverse order.

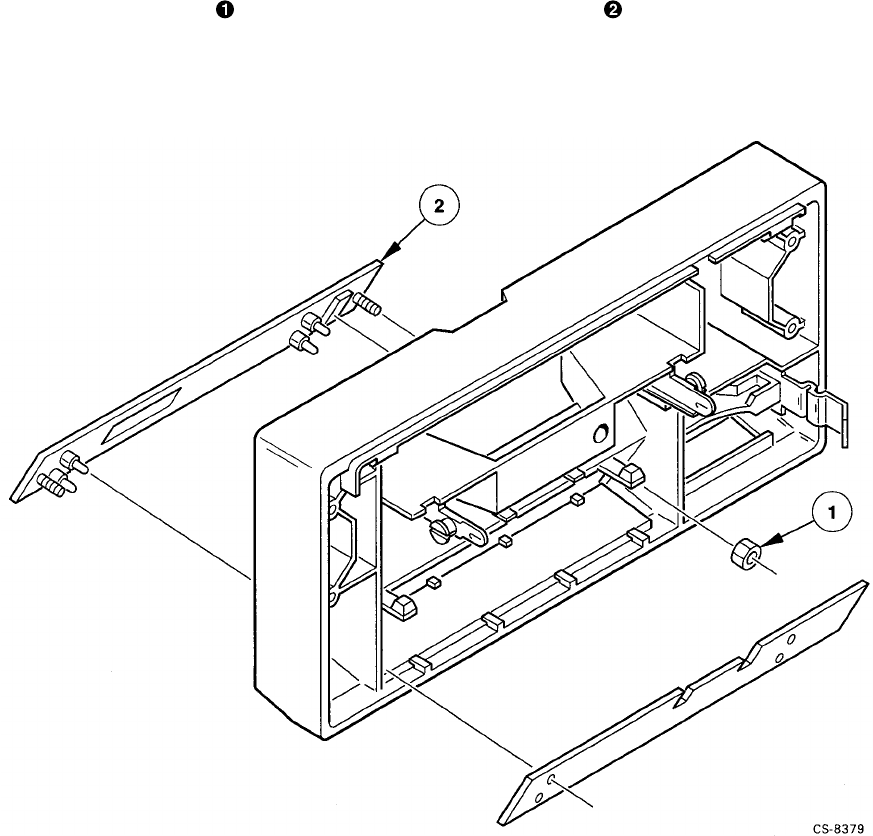

Figure 5–5: Removing the Control Switch Circuit Board
5–12 Removal/Replacement Procedures
