5.4.3 Front Door (P/N 29-28466-01)
To remove the front door, see Figure 5–6 and proceed as follows:
1. Remove the front panel (refer to Section 5.4.7).
2. With the front door fully opened, remove the two springs .
3. Push the front door inward to separate the arms from the pivots .
4. Remove the front door through the opening in the front panel.
To replace the front door, follow the removal procedure in reverse order. However, note the
following about lubrication and spring attachment:
1. Put a small amount of Lubriplate on each pivot before snapping the front door arms
onto the pivots.
2. The straight arm of the springs attach to the front panel support; the angled arm of
the spring attaches to the front door arm.

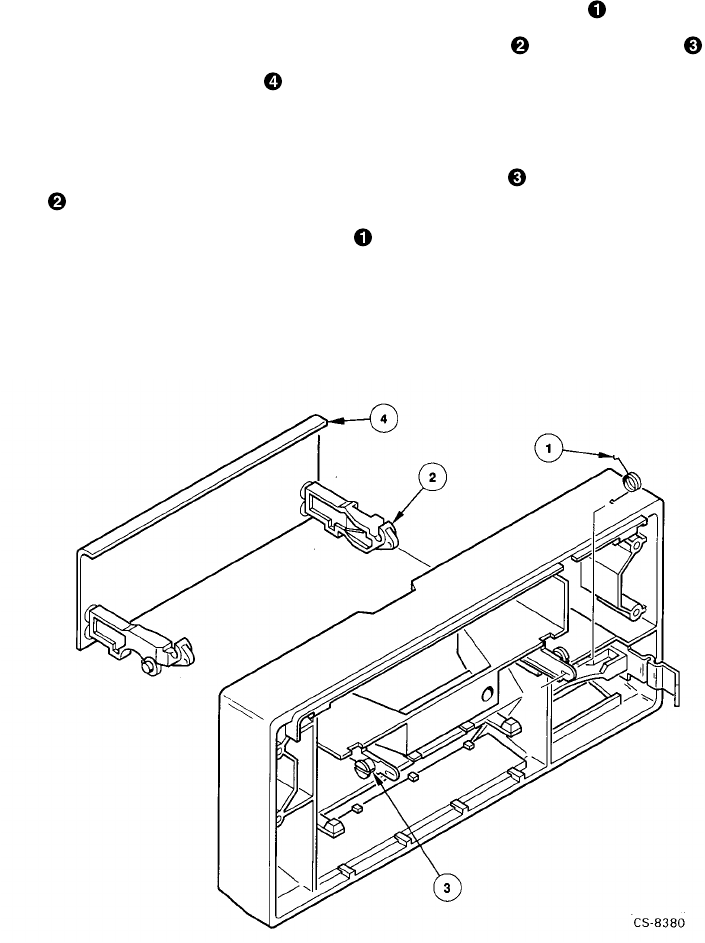

Figure 5–6: Removing the Door
Removal/Replacement Procedures 5–13
