5.4.4 Door Lock (P/N 29-28476-01)
To remove the door lock, see Figure 5–7 and proceed as follows:
1. Disconnect both connectors and from the door lock .
2. Remove the two clips securing the door lock to the front panel, then remove the door
lock.
To replace the door lock, follow the removal procedure in reverse order. However, note the
following about installing clips and using the service aid:
1. Follow the removal procedure in reverse order. The tab on the clips goes downward.
2. Use Service Aid 132 (Section 4.5.2.4) to verify that the door lock functions properly.

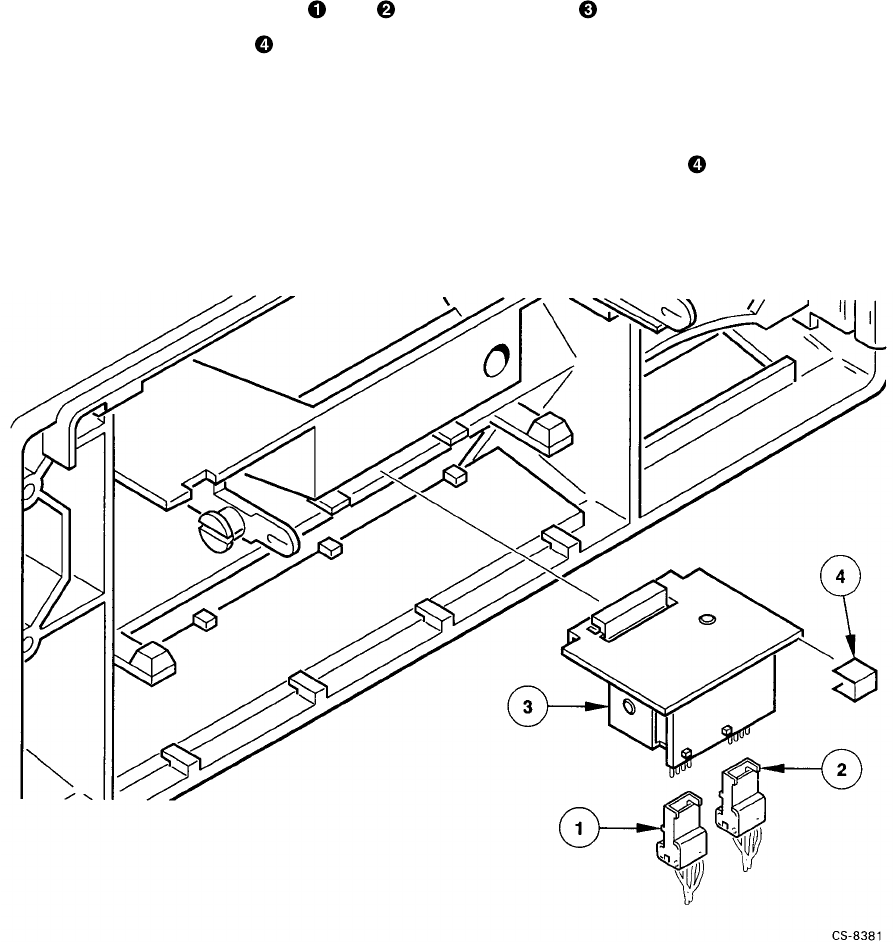

Figure 5–7: Removing the Door Lock
5–14 Removal/Replacement Procedures
