5.4.7 Front Panel (P/N 29-28467-01)
To remove the front panel, see Figure 5–10 and proceed as follows:
1. Remove the four screws securing the front panel to the deck plate .
2. Disconnect the electrical connectors and , then remove the front panel.
To replace the front panel, follow the removal procedure in the reverse order. Use Service
Aid 132 (Section 4.5.2.4) to verify that the door lock functions properly.

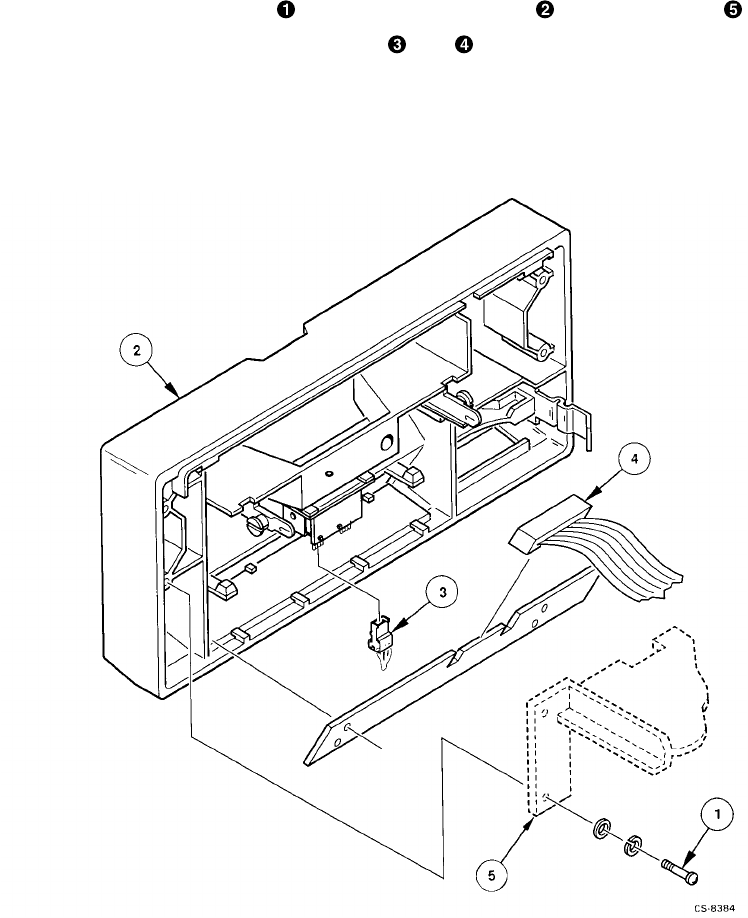

Figure 5–10: Removing the Front Panel
Removal/Replacement Procedures 5–17
