5.4.13 Interlock Switch (P/N 29-28476-02)
To remove the interlock switch, see Figure 5–16 and proceed as follows:
1. Remove the front panel (refer to Section 5.4.7).
2. Disconnect the two wires from the interlock switch .
3. Press inward on the sides of the switch and move it upward to remove it.
To replace the interlock switch, follow the removal procedure in reverse order.

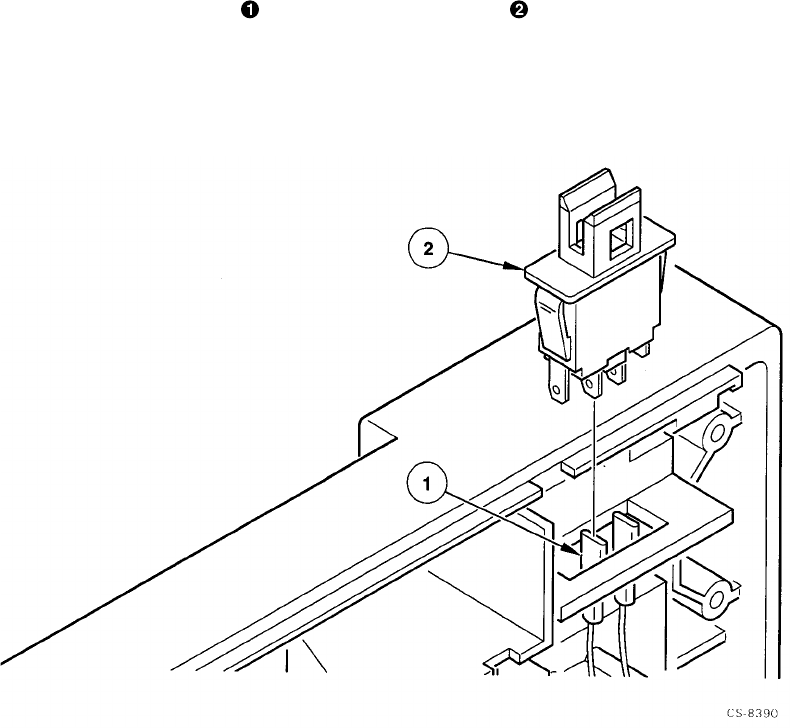

Figure 5–16: Removing the Interlock Switch
5–28 Removal/Replacement Procedures
