5.4.15 Manual Release Switch
To remove the manual release switch, refer to Figure 5–18 and proceed as follows:
1. Remove the front panel (refer to Section 5.4.7).
2. Place both front panel cables behind the metal shield. The metal shield is located behind
the front panel and not shown in Figure 5–18.
3. Remove the screw attaching the right output air duct to the shield.
4. Remove the three screws attaching the metal shield to the deck plate, then remove the
shield.
5. Remove the two screws and washers securing the manual release switch to the deck
plate, then remove the switch.
To replace the manual release switch, follow the removal procedure in reverse order. Note
that the short leg of the switch hooks behind the pin in the deck plate.

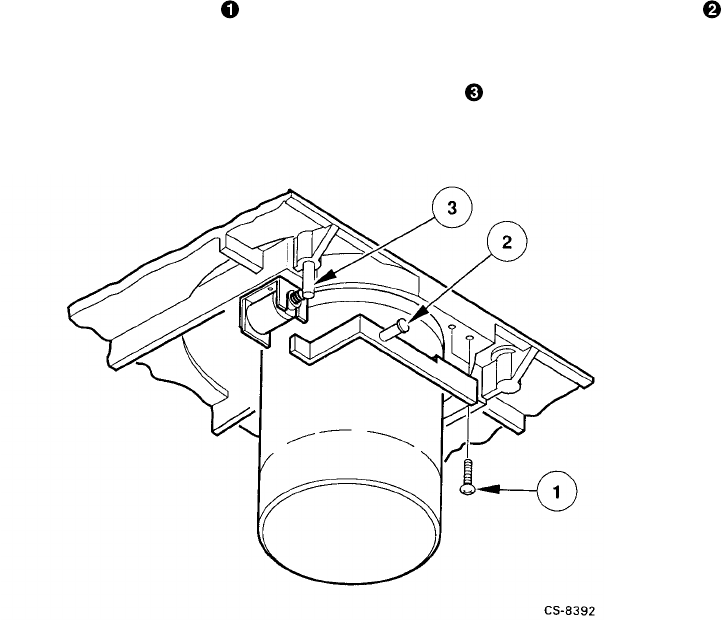

Figure 5–18: Removing the Manual Release Switch
