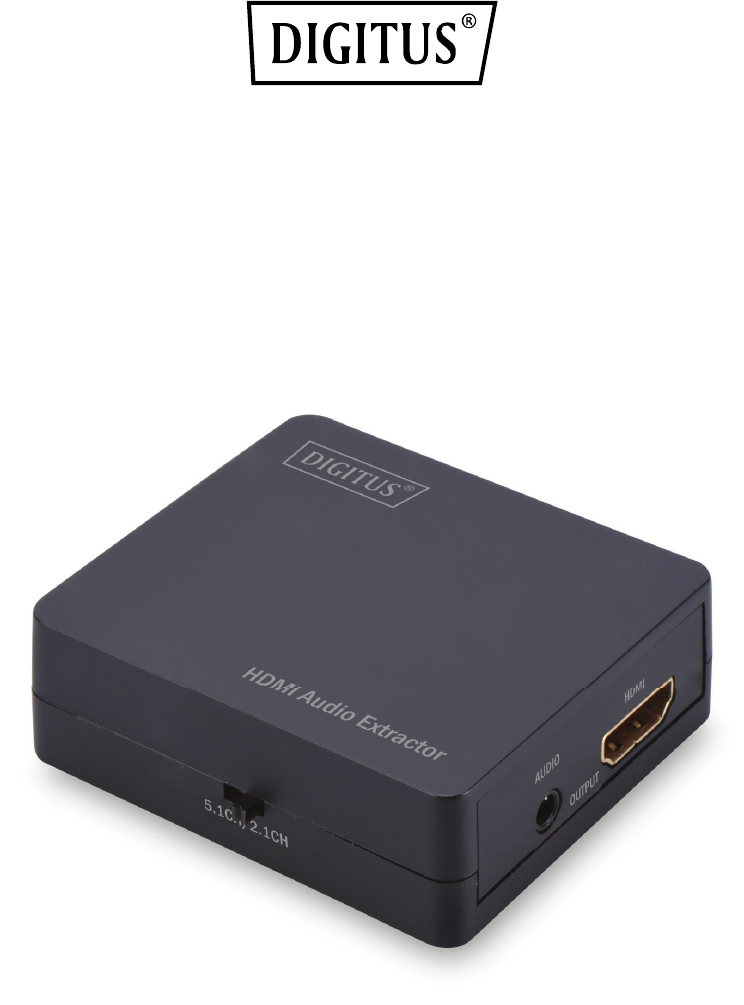

HDMI Audio Extractor Manual DS-40132
1.0 Introduction The HDMI Audio Extractor (DS-40132) can support the most popular 4K video and it can extract audio from HDMI source professionally. You are able to choose 5.1 channel Digital optical audio or 2.1 channel stereo audio by a simple dip switch. It is a great device to work with home theater system or any professional audio amplifier. DS-40132 has also build-in HDMI booster to support long distance transmission up to 30m. 2.
Note: Specifications are subject to change without notice 4.0 Package Contents 1. Main unit 2. USB Power Cable 3. User Manual 5.
6.0 Connection and Operation Note: 1) When the converter of HDMI Input receives 5.1CH Surround Sound Signal and button is switched to 2.1CH. The SPDIF, 3.5mm audio and HDMI output audio will be corresponding to 2.1CH. 2) When the converter of HDMI Input receives 5.1CH Surround Sound Signal and button is switched to 5.1CH. The HDMI output will also send 5.1CH signals. However, if the output device only support 2.1CH signal, then the HDMI output and SPDIF will be mal-function.
