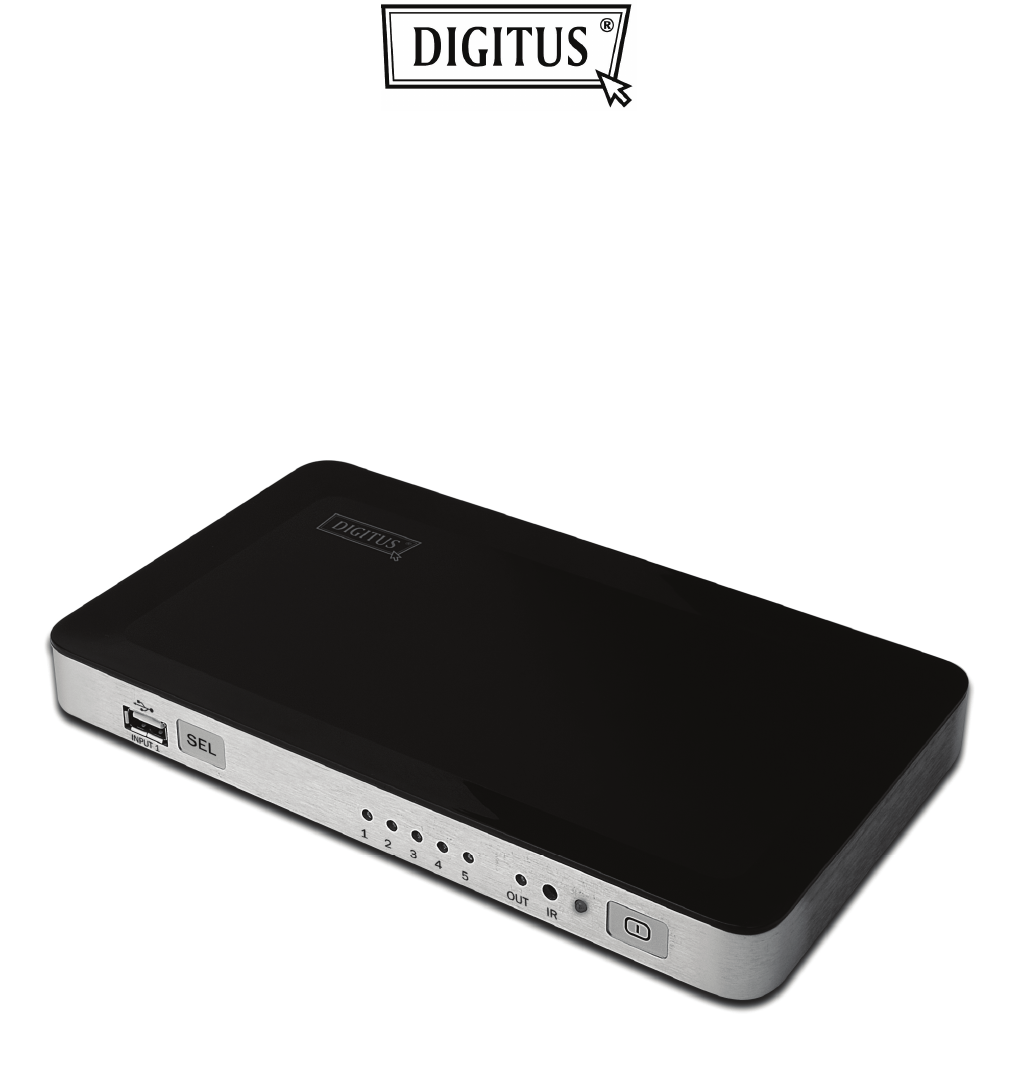

HDMI VIDEO SWITCH 4+1 PORT + INTEGRATED PC CONNECTION User Manual DS-45310
TABLE OF CONTENTS 1.0 2.0 3.0 4.0 5.0 Introduction ..................................................................................................................... 2 Specifications .................................................................................................................. 3 Package Contents ........................................................................................................... 3 Panel Descriptions ..............................................................
2.0 SPECIFICATIONS Signal Inputs/Output Input port Output port Operating Frequency Vertical Frequency Range Video Amplifier Bandwidth Resolutions(HDTV) Interlaced(50&60Hz) Progressive(50&60Hz) Mechanical Size(L-W-H) Weight(Net) Warranty Limited Warranty Environmental Operating Temperature Operating Humidity Storage Temperature Storage Humidity Power Requirement External Power Supply Power consumption (Max) Accessories Adapter Remote control User Manual USB 2.0 x1, HDMI x4 HDMI x1 50/60Hz Max. 2.
.0 PANEL DESCRIPTIONS Front Back 5.0 CONNECTION AND OPERATION 1) Connection 1) 2) 3) 4) Connect the HDMI source devices to the HDMI inputs of this product. (Input cables are optional) Connect Computer to the USB 2.0 input of this product using one USB male to male cable. Connect HDTV to the HDMI output of this product. Insert the DC side of 5V power supply into DC/5V jack and then connect the AC side of the power supply into the wall outlet. Attention: Insert / Extract cable gently.
.1 CONNECTION DIAGRAM a HDMI Input b HDMI Output c USB 2.
