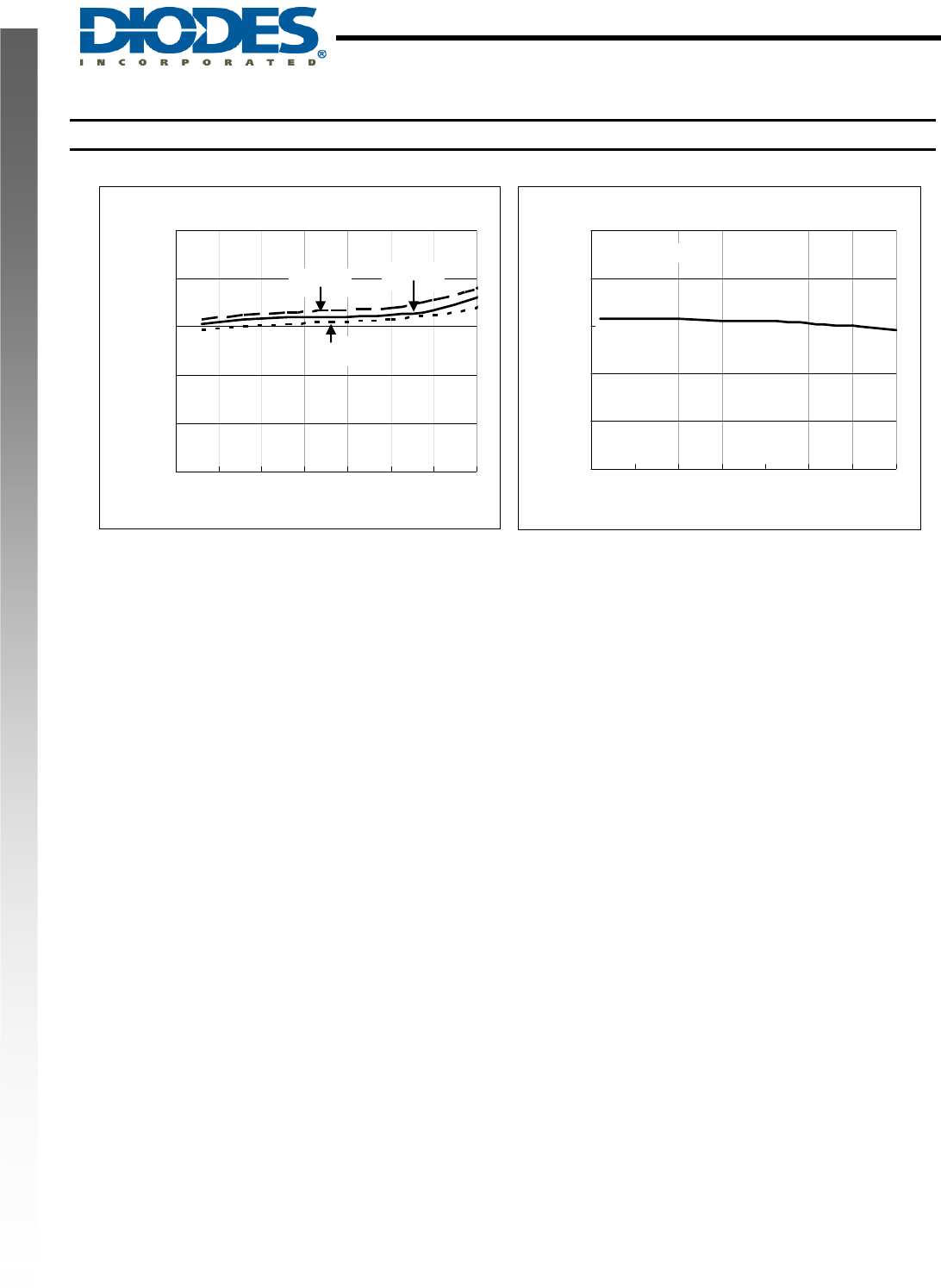

Typical Performance Characteristics (Continued)
Short Circuit Current vs Input Voltage
0
20
40
60
80
100
2.533.544.555.56
Input Voltage(V)
Short Circuit Current (mA)
Short-circuit Current vs Temperature
0
20
40
60
80
100
-50 -25 0 25 50 75 100 125
Temperature(
℃
)
Short-circuit Current(mA)
V
IN
=3.8V
-45°C
25°C
90°C
