SCHOTTKY BARRIER RECTIFIERS APD240

Data Sheet

Nov. 2012 Rev. 1. 9 BCD Semiconductor Manufacturing Limited

Cathode line

by marking

Cathode line by

marking

Features

· Low Forward Voltage Drop

· Very Small Conduction Losses

· High Surge Capability

· Surge Overload Rating up to 50A Peak Value

Applications

· Low Voltage High Frequency Inverters

· DC-DC Converters

· Free Wheeling

· Polarity Protection

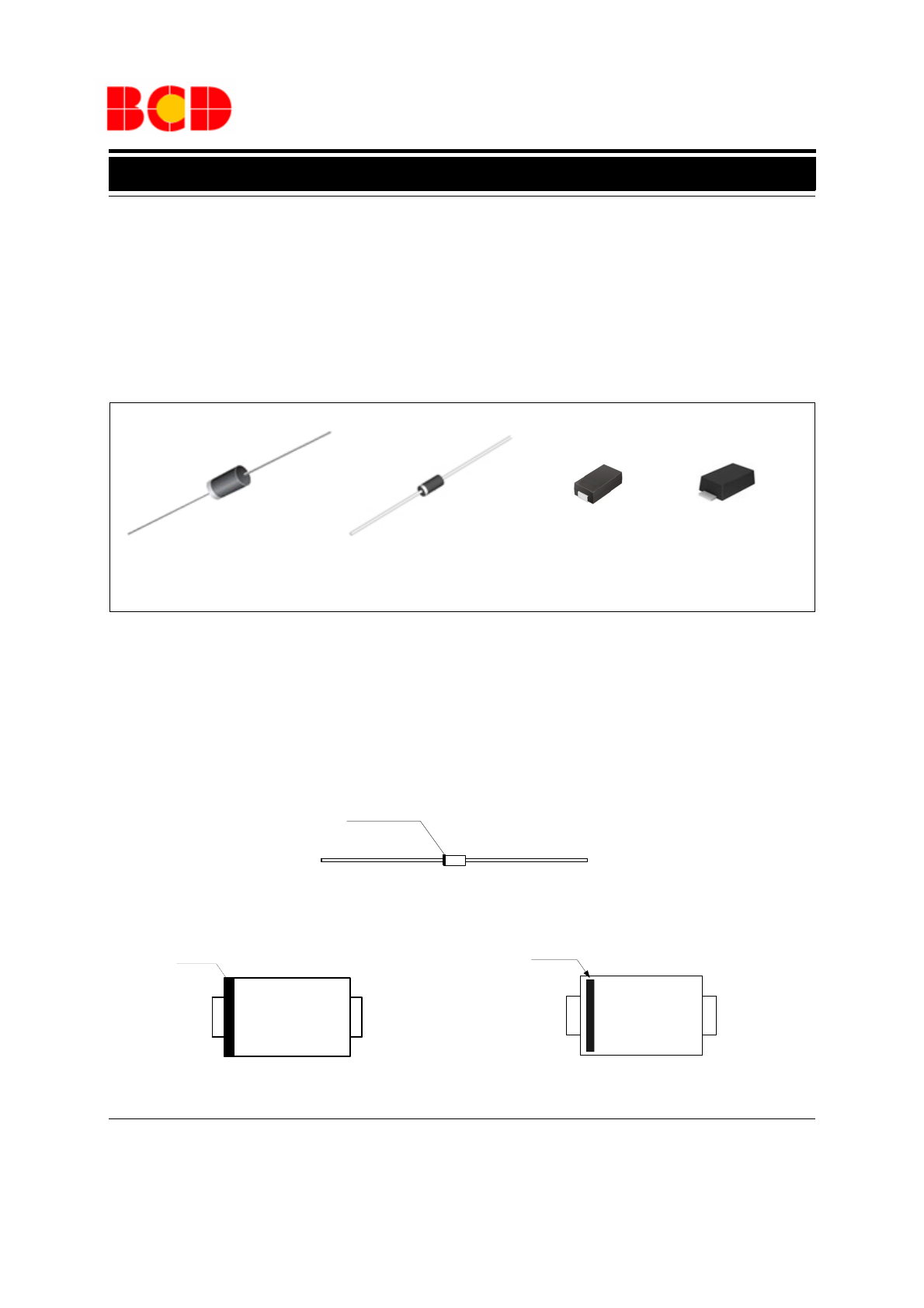

Figure 1. Package Types of APD240

Figure 2. Pin Configuration of APD240

Pin Configuration

DO-41 DO-15 DO-214AC

VD/VG Package

(DO-41/DO-15)

Cathode

Anode

VR Package

(DO-214AC)

Anode

Cathode line by

marking

Cathode

SOD-123

KD Package

(SOD-123)

Cathode

Anode

Summary of content (10 pages)

PAGE 1
Data Sheet SCHOTTKY BARRIER RECTIFIERS APD240 Features · · · · Applications Low Forward Voltage Drop Very Small Conduction Losses High Surge Capability Surge Overload Rating up to 50A Peak Value DO-41 · · · · Low Voltage High Frequency Inverters DC-DC Converters Free Wheeling Polarity Protection DO-15 DO-214AC SOD-123 Figure 1.
PAGE 2
Data Sheet SCHOTTKY BARRIER RECTIFIERS APD240 Ordering Information APD240 - Circuit Type E1: Lead Free G1: Green Package TR: Ammo or Tape & Reel Blank: Bulk VD: DO-41 VG: DO-15 VR: DO-214AC KD: SOD-123 Package Temperature Range DO-41 -65 to 125oC DO-15 -65 to 125oC DO-214AC -65 to 125oC SOD-123 -65 to 125oC Part Number Lead Free APD240VD-E1 Marking ID Green APD240VD-G1 APD240VDTR-E1 APD240VDTR-G1 APD240VG-E1 APD240VG-G1 Lead Free Green Packing Type D240VD 240VDG Bulk D240VD 240
PAGE 3
Data Sheet SCHOTTKY BARRIER RECTIFIERS APD240 Absolute Maximum Ratings (TA=25oC, unless otherwise noted) (Note 1) Parameter Symbol Value Unit VRRM 40 V Maximum DC Blocking Voltage VDC 40 V Maximum RMS Voltage VRMS 28 V Average Rectified Forward Current 0.375 " (9.5mm) Lead Length (See Figure 3) IF (AV) 2.0 A Non-Repetitive Peak Forward Surge Current 8.
PAGE 4
Data Sheet SCHOTTKY BARRIER RECTIFIERS APD240 Thermal Characteristics (TA=25oC, unless otherwise noted) Parameter Symbol θJA Typical Thermal Resistance Values DO-41/DO-15 52 DO-214AC 90 SOD-123 200 Unit oC/W Electrical Characteristics (TA=25oC, unless otherwise noted) Parameter Forward Voltage @ IF=2.0A Reverse Current @ Rated VR (Note 2) Symbol Values Unit VF 0.5 V TA=25oC 0.5 IR TA=100oC mA 10 Note 2: Pulse Test: 300µs pulse width, 1.0% duty cycle.
PAGE 5
Data Sheet SCHOTTKY BARRIER RECTIFIERS APD240 Typical Performance Characteristics (Continued) 100000 50 Instantanous Reverse Current (µA) Peak Forward Surge Current (A) 45 40 35 30 25 20 TJ=TJmax 15 10 10000 1000 o TJ=25 C 100 o TJ=125 C 10 Single Half Sine-Wave 1 10 1 0 100 Number of Cycles at 60Hz 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Figure 5. Maximum Non-Repetitive Figure 6.
PAGE 6
Data Sheet SCHOTTKY BARRIER RECTIFIERS APD240 Mechanical Dimensions DO-41 Unit: mm(inch) 0. 700(0. 028) 0. 900(0. 035) 25. 400(1. 000) MIN DIA. 4. 200(0.165) 5. 200(0.205) Cathode line by marking 2. 000(0.080) 2. 700(0.107) DIA. 25. 400(1. 000) MIN Nov. 2012 Rev. 1.
PAGE 7
Data Sheet SCHOTTKY BARRIER RECTIFIERS APD240 Mechanical Dimensions (Continued) DO-15 Unit: mm(inch) 0.700(0.028) 0.900( 0.035) 25. 400(1.000) MIN DIA. Cathode line by marking 5.800(0.228) 7.600(0.299) 2.600(0.102) 3.600(0.142) DIA. 25. 400(1.000) MIN Nov. 2012 Rev. 1.
PAGE 8
Data Sheet SCHOTTKY BARRIER RECTIFIERS APD240 Mechanical Dimensions (Continued) DO-214AC 3. 990(0.157) 4. 600(0.181) 2.400(0.094) 2.790(0.110) 1.250(0.049) 1.650(0.065) Cathode line by marking Unit: mm(inch) 0.152(0. 006) 0.305(0. 012) 1. 900(0. 075) 2. 290(0. 090) 0. 100(0.004) 0. 310(0.012) 0. 760(0. 030) 1. 520(0. 060) 4.800(0. 189) 5.280(0. 208) Nov. 2012 Rev. 1.
PAGE 9
Data Sheet SCHOTTKY BARRIER RECTIFIERS APD240 Mechanical Dimensions (Continued) SOD-123 Cathode line by marking Unit: mm(inch) 2.900(0.114) 3.100(0.122) 0.000(0.000) 0.100(0.004) 1.700(0.067) 2.000(0.079) 0.850(0.033) 1.050(0.041) 3.500(0.138) 3.900(0.154) 0.900(0.035) 1.080(0.043) 0.100(0.004) 0.250(0.010) 0.430(0.017) 0.830(0.033) Nov. 2012 Rev. 1.
PAGE 10
BCD Semiconductor Manufacturing Limited http://www.bcdsemi.com IMPORTANT NOTICE IMPORTANT NOTICE BCD Semiconductor BCD Semiconductor Manufacturing Manufacturing Limited Limited reserves reserves the the right right to to make make changes changes without without further further notice notice to to any any products products or or specifispecifications herein. cations herein.
