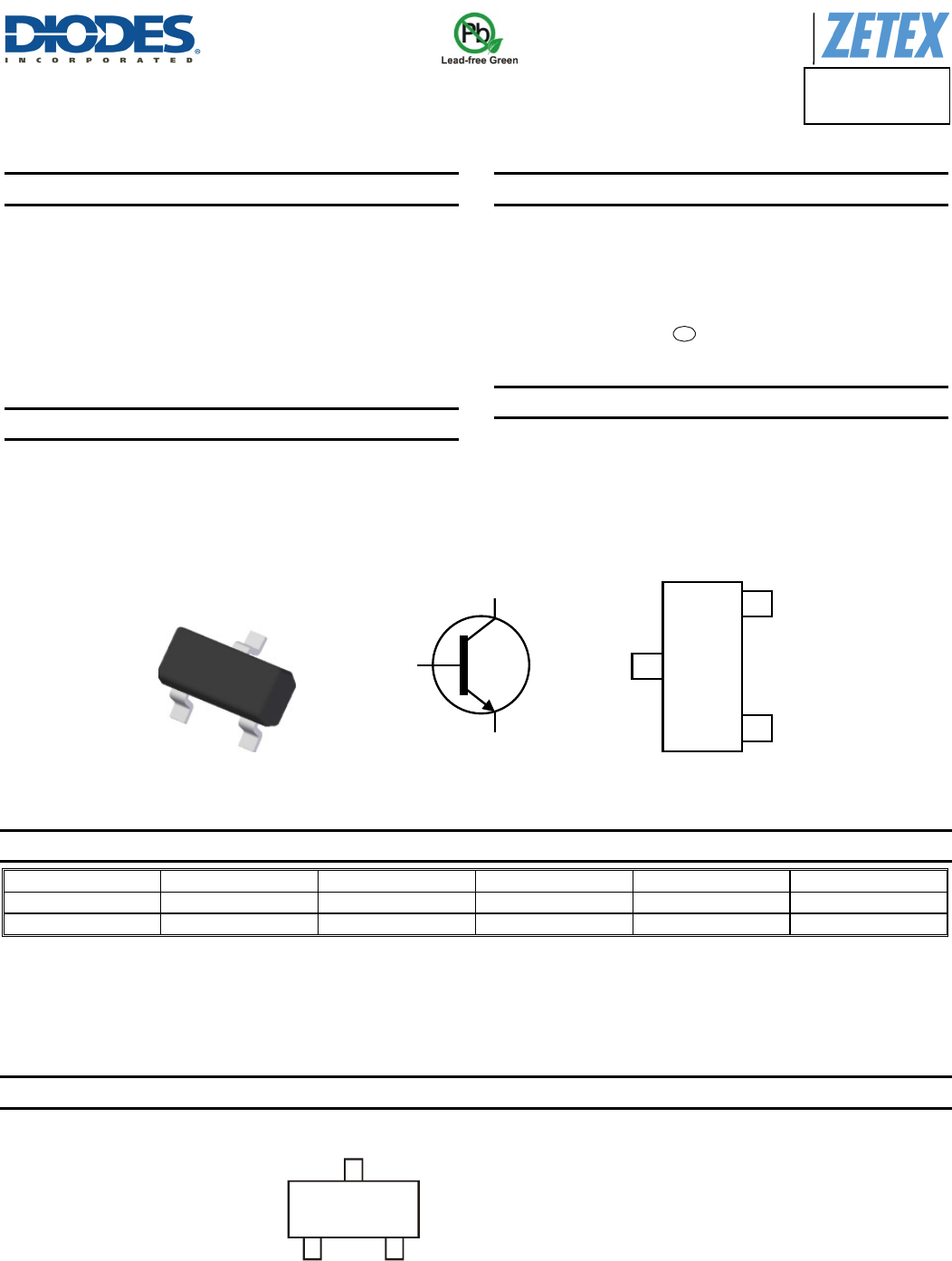

FMMT415-FMMT417

Datasheet Number: DS33084 Rev. 5 - 2

1 of 7

www.diodes.com

February 2014

FMMT415

FMMT417

Product Line o

Diodes Incorporated

NPN AVALANCHE TRANSISTOR IN SOT23

Features

• Avalanche Transistor

• 60A Peak Avalanche Current (Pulse width = 20ns)

• BV

CES

> 260V (415) & 320V (417)

• BV

CEO

> 100V

• Specifically designed for Avalanche mode operation

• Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• Qualified to AEC-Q101 Standards for High Reliability

Description

The FMMT415/417 are NPN silicon planar bipolar transistors

designed for operating in avalanche mode. Tight process control and

low inductance packaging combine to produce high current pulses

with fast edges.

Mechanical Data

• Case: SOT23

• Case Material: Molded Plastic. “Green” Molding Compound

UL Flammability Classification Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020

• Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-

STD-202, Method 208

• Weight: 0.008 grams (Approximate)

Applications

• Laser Diode Drivers for Ranging and Measurement (LIDAR)

• Automotive Radar Systems

 Adaptive Cruise Control

 Collision Avoidance System

• Fast Edge Switch Generator

• High Speed Pulse Generators

Ordering Information (Note 4)

Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel

FMMT415TD AEC-Q101 415 7 8 500

FMMT417TD AEC-Q101 417 7 8 500

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, “Green”

and Lead-free.

3. Halogen- and Antimony-free “Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

xxx = Product Type Marking Code

(See Ordering Information)

Top View

Pin-Out

Top View

Device Symbol

SOT23

589

xxx

Summary of content (7 pages)

PAGE 1
A Product Line of Diodes Incorporated FMMT415 FMMT417 NPN AVALANCHE TRANSISTOR IN SOT23 Features Mechanical Data • Avalanche Transistor • • • 60A Peak Avalanche Current (Pulse width = 20ns) BVCES > 260V (415) & 320V (417) • Case: SOT23 Case Material: Molded Plastic.
PAGE 2
A Product Line of Diodes Incorporated FMMT415 FMMT417 Absolute Maximum Ratings (@TA = +25°C, unless otherwise specified.) Characteristic Collector-Base Voltage Symbol FMMT415 FMMT417 Unit VCBO 260 320 V Collector-Emitter Voltage VCES 260 320 V Collector-Emitter Voltage VCEO 100 100 V Emitter-Base Voltage VEBO 6 V IC 500 mA ICM 60 A Continuous Collector Current Peak Collector Current (Pulse Width = 20ns) Thermal Characteristics (@TA = +25°C, unless otherwise specified.
PAGE 3
A Product Line of Diodes Incorporated FMMT415 FMMT417 Thermal Characteristics and Derating Information 15 x 15mm FR4 1oz Copper 200 160 D=0.5 120 80 D=0.2 Single Pulse 40 0 100µ D=0.05 1m D=0.1 10m 100m 1 Pulse Width (s) 10 100 1k Max Power Dissipation (W) Thermal Resistance (°C/W) 0.6 240 Max Power Dissipation (W) Transient Thermal Impedance 15 x 15mm FR4 1oz Copper 0.5 0.4 0.3 0.2 0.1 0.
PAGE 4
A Product Line of Diodes Incorporated FMMT415 FMMT417 Electrical Characteristics (@TA = +25°C, unless otherwise specified.
PAGE 5
A Product Line of Diodes Incorporated FMMT415 FMMT417 Typical Electrical Characteristics (@TA = +25°C, unless otherwise specified.) FMMT415-FMMT417 Datasheet Number: DS33084 Rev. 5 - 2 5 of 7 www.diodes.
PAGE 6
A Product Line of Diodes Incorporated FMMT415 FMMT417 Package Outline Dimensions Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version. A B C H K J M K1 D F L G SOT23 Dim Min Max Typ A 0.37 0.51 0.40 B 1.20 1.40 1.30 C 2.30 2.50 2.40 D 0.89 1.03 0.915 F 0.45 0.60 0.535 G 1.78 2.05 1.83 H 2.80 3.00 2.90 J 0.013 0.10 0.05 K 0.903 1.10 1.00 K1 0.400 L 0.45 0.61 0.55 M 0.085 0.18 0.
PAGE 7
A Product Line of Diodes Incorporated FMMT415 FMMT417 IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
