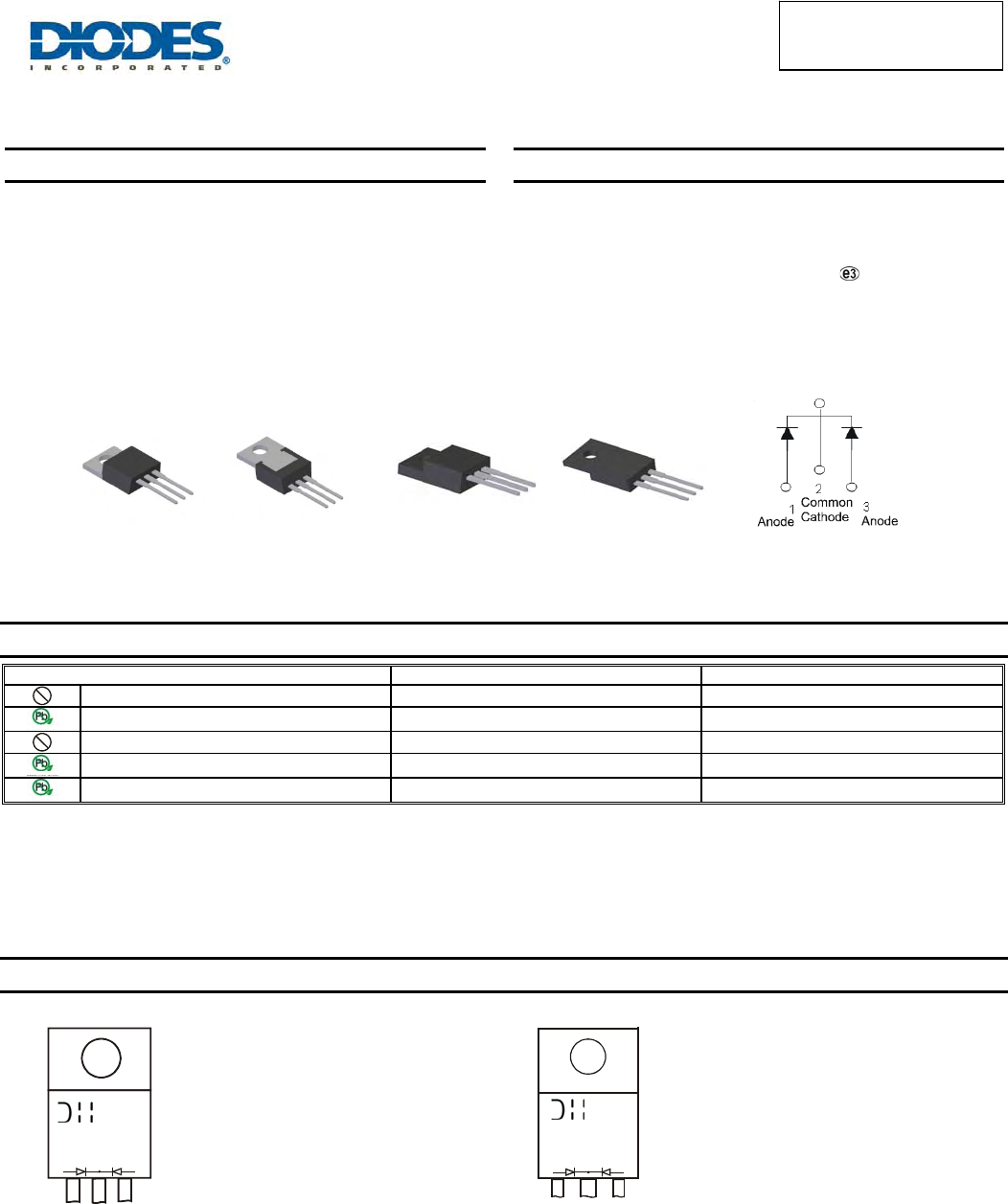

SBR20A150

Document number: DS30967 Rev. 6 - 2

1 of 5

www.diodes.com

July 2012

SBR20A150CT

SBR20A150CTFP

SBR is a re

istered trademark of Diodes Incor

orated.

20A SBR

SUPER BARRIER RECTIFIER

Features

• Low Forward Voltage Drop

• Excellent High Temperature Stability

• Patented Super Barrier Rectifier Technology

• Soft, Fast Switching Capability

• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

• Also Available in Green Molding Compound

 Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data

• Case: TO-220AB, ITO-220AB

• Case Material: Molded Plastic, UL Flammability Classification

Rating 94V-0

• Terminals: Matte Tin Finish annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

• Weight: TO-220AB – 1.85 grams (approximate)

ITO-220AB – 1.65 grams (approximate)

Ordering Information (Notes 4 & 5)

Part Number Case Packaging

SBR20A150CT TO-220AB 50 pieces/tube



Green

SBR20A150CT-G TO-220AB 50 pieces/tube

SBR20A150CTFP ITO-220AB 50 pieces/tube



Green

SBR20A150CTFP-G ITO-220AB 50 pieces/tube



Green

SBR20A150CTFP-JT-G ITO-220AB (Alternate) 50 pieces/tube

Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR20A150CT-G.

5.Using heatsink (by black Aluminum 45mm*20*12mm)

Marking Information

TO-220AB

Top View

ITO-220AB

Top

Package Pin Out

Configuration

TO-220AB

Bottom View

ITO-220AB

Bottom View

YYWW AB

20A150CTFP

SBR

SBR20A150CTFP = Product Type Marking Code

B = Foundry and Assembly Code

YYWW = Date Code Marking

YY = Last two digits of year (ex: 06 = 2006)

WW = Week (01 – 53)

SBR20A150CT = Product Type Marking Code

B = Foundry and Assembly Code

YYWW = Date Code Marking

YY = Last two digits of year (ex: 06 = 2006)

WW = Week (01 – 53)

20A150CT

YYWW AB

SBR

Summary of content (5 pages)

PAGE 1
SBR20A150CT SBR20A150CTFP 20A SBR® SUPER BARRIER RECTIFIER Features Mechanical Data • • • • • • • • Low Forward Voltage Drop Excellent High Temperature Stability Patented Super Barrier Rectifier Technology Soft, Fast Switching Capability Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Also Available in Green Molding Compound Halogen and Antimony Free.
PAGE 2
SBR20A150CT SBR20A150CTFP Maximum Ratings (Per Leg) (@TA = +25°C, unless otherwise specified.) Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Output Current Per Device (Per Leg) (Total) Non-Repetitive Peak Forward Surge Current 8.
PAGE 3
SBR20A150CT SBR20A150CTFP 100 10.00 8.00 6.00 4.00 2.00 0.00 25 50 75 100 125 150 TC, CASE TEMPERATURE (°C) Figure 1: Current Derating Curve, Per Element 175 IF, INSTANTANEOUS FORWARD CURRENT (A) IF(AVE), AVERAGE FORWARD CURRENT 12.00 10 Tj=175°C Tj=125°C 1 Tj=75°C Tj=25°C 0.1 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.
PAGE 4
SBR20A150CT SBR20A150CTFP Package Outline Dimensions A E A1 Q SEATING PLANE P 16.00 ± 0.20* H1 D D1 L1 L b2 c b e A2 *Guaranteed by TO-220AB leadframe design e1 ØP E A A1 Q 10° D 5° 5° D1 L1 1 2 3 5° 5° 3 x b1 A2 3xb L 2xe c ITO-220AB Dim Min Typ Max A 4.50 4.70 4.90 A1 3.04 3.24 3.44 A2 2.56 2.76 2.96 b 0.50 0.60 0.75 b1 1.10 1.20 1.35 c 0.50 0.60 0.70 D 15.67 15.87 16.07 D1 8.99 9.19 9.39 e 2.54 E 9.91 10.11 10.31 L 9.45 9.75 10.05 L1 15.80 16.00 16.20 P 2.98 3.18 3.38 Q 3.
PAGE 5
SBR20A150CT SBR20A150CTFP IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
