Remote Control Car Starter Model 25523T Installation Manual

PLEASE READ COMPLETELY BEFORE BEGINNING

Congratulations on your purchase of the AutoCommand

Professional Series Remote Car Starter. The AutoCommand

Professional Series Remote Car Starter system allows you

to start the car by remote control from the comfort of your home or office in order to cool it down in the summer or heat it up in the winter.

AutoCommand

Professional Series is for automatic transmission/fuel injected vehicles only. It is an extremely sophisticated system with multiple built-in safety and

security features.

AutoCommand

Professional Series Car Starter:

• Will start your car by remote control, and run the heater, defroster, or

air conditioner to warm up or cool down the car from up to 1,000 feet

away.

• Is quality engineered, microprocessor controlled, and made in the

USA to provide many years of reliable use.

• Is designed to start the car only if it is in park, and only if the hood is

closed.

• Will attempt to start the car for up to six seconds, but no longer (to

avoid damage to the starter motor). Should the car not start, or if it

stalls after starting, the remote starter will make two further attempts

to start it.

• Will not let the car be driven without the key in the ignition.

• Shuts itself off automatically after 10 or 15 minutes (programmable)

if you forget to come out to your car.

• Will shut off if the brake pedal is pushed, the hood is opened, or the

transmission is shifted out of park - unless the key is in the ignition

and in the “run” position.

• Allows you to remove the key while leaving the car running with the

doors locked for up to 10 or 15 minutes utilizing the Quick Stop™

Option. (See Separate User Tip Sheet)

• Starts the car automatically whenever the temperature drops below

F(-18

C), or if the battery voltage drops below 11 volts when the

Cold Start™ Option is used. (See Separate User Tip Sheet)

• Has the “Daily Start™” feature which allows the vehicle to be started

at the same time the following day. (See Separate User Tip Sheet)

• Comes with a Limited Lifetime Warranty.

www.designtech-intl.com • www.directed.com • 800-876-0800

* For free vehicle specific wire information consult our

websites at www.designtech-intl.com or www.directed.com

Power Harness

Control Harness

ON/OFF Switch Jack

In-Gear Switch (inside case)

Color Function Circuit Type Required

Orange Brake (+) Input Yes

Purple Hood Switch (–) Input Yes

Green Tach (–) Input No

Red/White Remote Input (–) Input No

Red/Black Diesel (+/–) Input No

Circuit

Color Function Type Required

Pink Power (+12V) Input Yes

White Accessory Relay output Yes

Yellow Starter Relay output Yes

Blue Ignition 1 Relay output Yes

Green Ignition 2 Relay output Consult Wiring Guide*

Black Ground Input Yes

Coax

Antenna

Jack

Color Function Circuit Type Required

White/Black Ignition #3 (–) 400 mA Consult Wiring Guide*

Brown/White Alarm Disarm (–) 400 mA Consult Wiring Guide*

Brown Accessory (–) 400 mA No

Blue Horn (–) 400 mA No

Yellow Lights (+) Relay Output No

White - Option

Red LED Light

Red - Code Learn

2 Protected by

DesignTech Labels

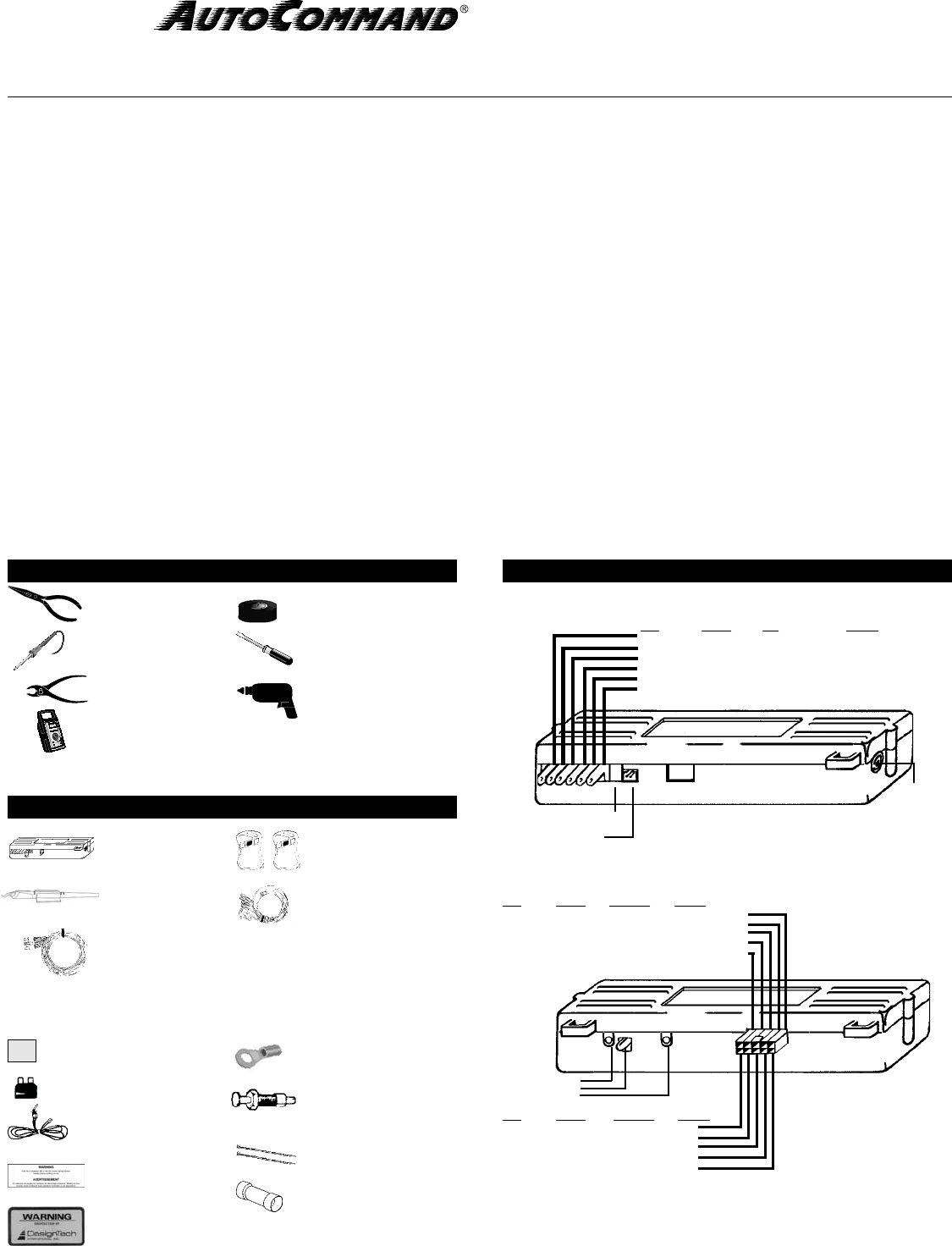

Parts List included with the AutoCommand

Professional Unit:

6 Power and Ignition wires

Antenna

Remote Starter

Receiver Module

Transmitters

Control Harness

(10 position)

Alchohol

Pad

Ring Terminal

Alcohol Pad

Green 30 A Fuse

On/Off Control Switch

Warning Label

The following parts are included in the plastic bag:

2 Cable Ties

Hood Pin Switch Set

Wiring Diagram

We highly recommend that all connections be soldered for reliability.

Drill with1/4”and 5/16”

drill bits

Electrical Tape

Soldering Iron

Test meter

Pliers

Screwdriver

Wire Cutters/Strippers

Tools required to install the AutoCommand

Professional Unit:

Yellow Butt Connector
