The default flight control is known as Mode 2. The left stick controls the aircraft’s altitude and heading, while the right

stick controls its forward, backward, left and right movements. The gimbal dial controls the camera’s tilt.

Quick Start Guide

V1.0

Phantom 4 Advanced+

The DJI

PHANTOM

4 Advanced+ is a smart prosumer flying camera capable of shooting 4K video at 60fps and at

up to 100mbps, and capturing 20 megapixel stills. Using upgraded TapFly

and ActiveTrack

through the DJI GO

4 app, you can fly anywhere visible on your screen or track a moving subject smoothly and easily with a simple tap.

The brand new camera uses a 1-inch CMOS sensor offering unprecedented clarity, lower noise, and better quality

images.

Remote Controller

The powerful remote controller of the Phantom 4 Advanced+ has a transmission range extending up to 4.3 mi (7 km)*.

It features physical buttons and dials to control exposure, camera tilt, photo capture and video recording.

Built into the remote controller is DJI LIGHTBRIDGE

, providing a live HD view from the Phantom camera directly on

the display. An internal battery ensures a long battery life and ease of use.

* The remote controller is able to reach its maximum transmission distance (FCC) in a wide open area with no Electro-Magnetic Interference, and at

an altitude of about 400 feet (120 meters).

Left Stick Right Stick

Gimbal Dial

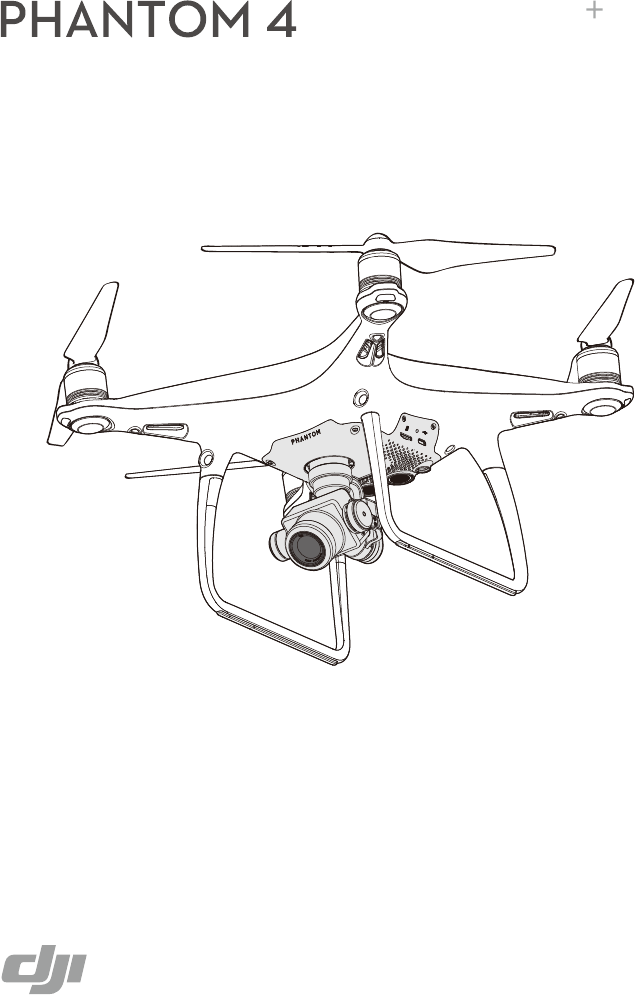

1. Gimbal and Camera

2. Downward Vision System*

3. Micro USB Port

4. Camera/Linking Status Indicator

and Link Button

5. Camera Micro SD Card Slot

6. Forward Vision System

7. Front LEDs

* The Vision System is affected by surrounding conditions. Read the Disclaimer and Safety Guidelines and watch the tutorials in the DJI GO 4 app

or on the official DJI website to learn more.

http://www.dji.com/phantom-4-adv

1. Power Button

2. Return-to-Home

(RTH) Button

3. Control Sticks

4. Speaker

5. Status LED

6. Battery Level LEDs

7. Power Port

8. Display Screen

9. Sleep/Wake Button

10. Microphone

11. Antennas

12. Handle Bar

Folded

www.dji.com

19 19

8. Motors

9. Propellers

10. Aircraft Status Indicators

11. Antennas

12. Intelligent Flight Battery

13. Power Button

14. Battery Level Indicators

13. Gimbal Dial

14. Camera Settings Dial

15. Record Button

16. Flight Mode Switch

17. Shutter Button

18. Intelligent Flight Pause Button

19. C1 and C2 Buttons

(customizable)

20. Micro USB Port

21. HDMI Port

22. Micro SD Card Slot

23. USB Port

ADVANCED
