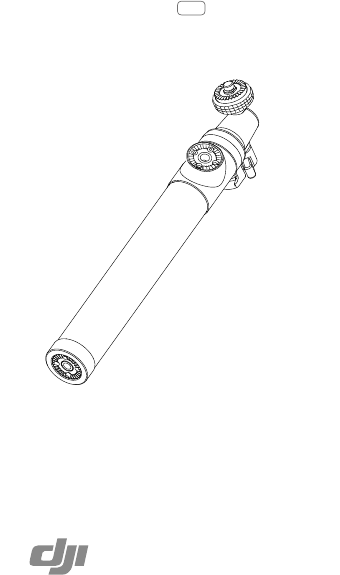

OSMO Extension Rod Quick Start Guide V1.
Disclaimer and Warning Congratulations on purchasing your new DJI product. The information in this document affects your safety and your legal rights and responsibilities. Read this entire document carefully to ensure proper configuration before use. Failure to read and follow instructions and warnings in this document may result in serious injury to yourself or others, damage to your DJI product, or damage to other objects in the vicinity.
23 5 m m Collapsed 29 m 98 0 m m m 15 5 m m Extended Installation 1. Ensure the inner knob is screwed in and touches the outer knob. 2. Release the swivel lock so that both knobs can rotate freely.
3. Attach the Extension Rod to the rosette mount on the Osmo handle and tighten the knob to secure. 4. You may notice a small gap between the teeth of the two rosette mounts. Now, turn the inner knob to close this gap. 5. Move the Osmo as desired and then tighten the swivel lock to lock its position. 6. To adjust the length of the Extension Rod, turn the handle counterclockwise to unlock the rod. Be sure to re-lock the rod after the adjustment has been made.
