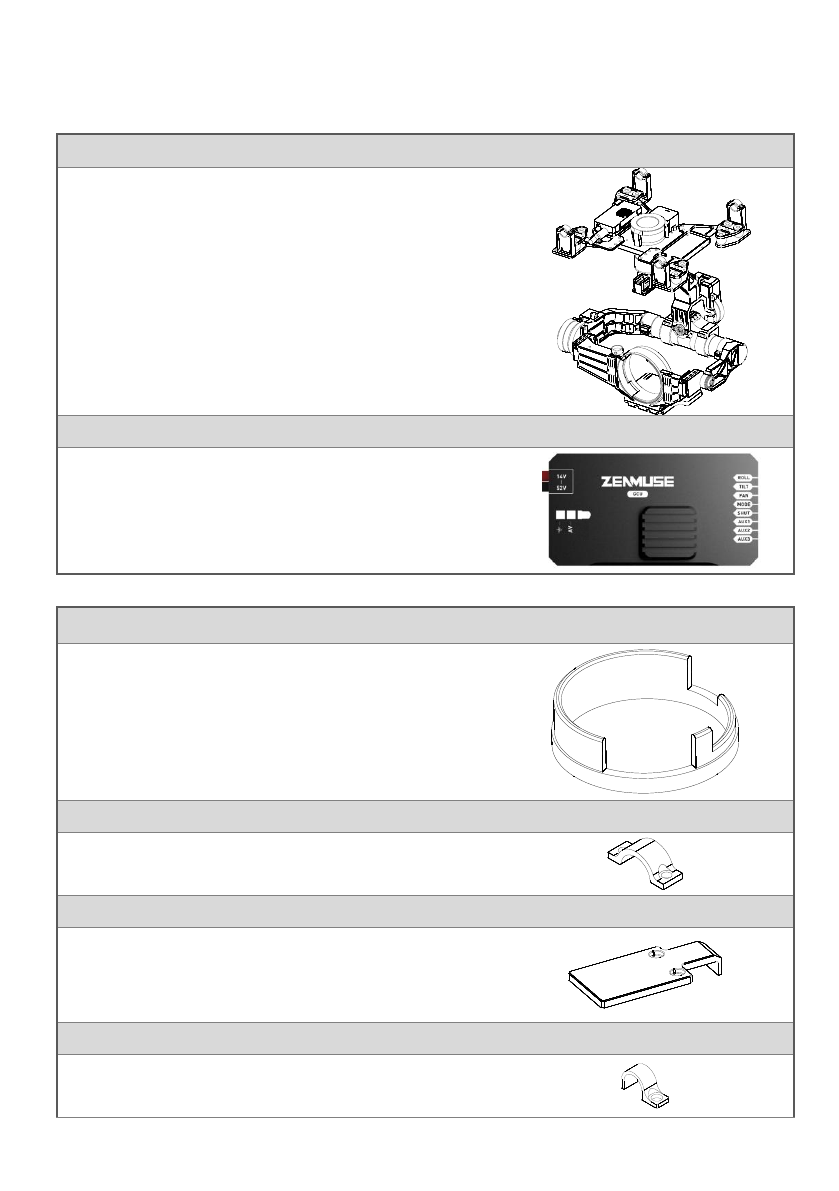

In Box

Gimbal & Gimbal Controller Unit (GCU)

Gimbal × 1

The Z15 gimbal has built-in slip rings within the mechanical structure,

which work to prevent the wire rod from entangling and enables

rotational freedom for the 3 axes rotating rods.

The gimbal has special built-in Z15 gimbal servo drive modules and

independent IMU module.

Gimbal Controller Unit (GCU) × 1

Connect the gimbal controller unit to the flight control system with a

CAN–Bus cable. The GCU will control the gimbal’s PAN, ROLL and

TILT axes rotation.

Main Parts Package

Lens Retaining Ring × 1

For fixing the camera lens.

Mounting Bracket × 4

For the gimbal and landing gear connection.

Mounting Board for Receiver × 1

For fixing the GCU and providing the mounting position for the

receiver or other device.

Cable Clamp

For tidying the cables on gimbal.
