Shutter Control

The Z15 enables transforming TX command into shutter control signal, please set one 2-position switch/channel for

remote shutter control.

Make sure the shutter control module is correctly mounted and wired.

Whichever 2-position switch on your transmitter selected, wire the right channel of receiver to SHUT port.

For example:

Position -1 Position -2: First shooting

Position -2Position -1: No shooting

Position -1 Position -2: Second shooting

Notes:

 Set the camera of Z15-GH3 to “Creative video”, the shutter can be used to record video. One toggle is

for start/stop recording.

Tips:

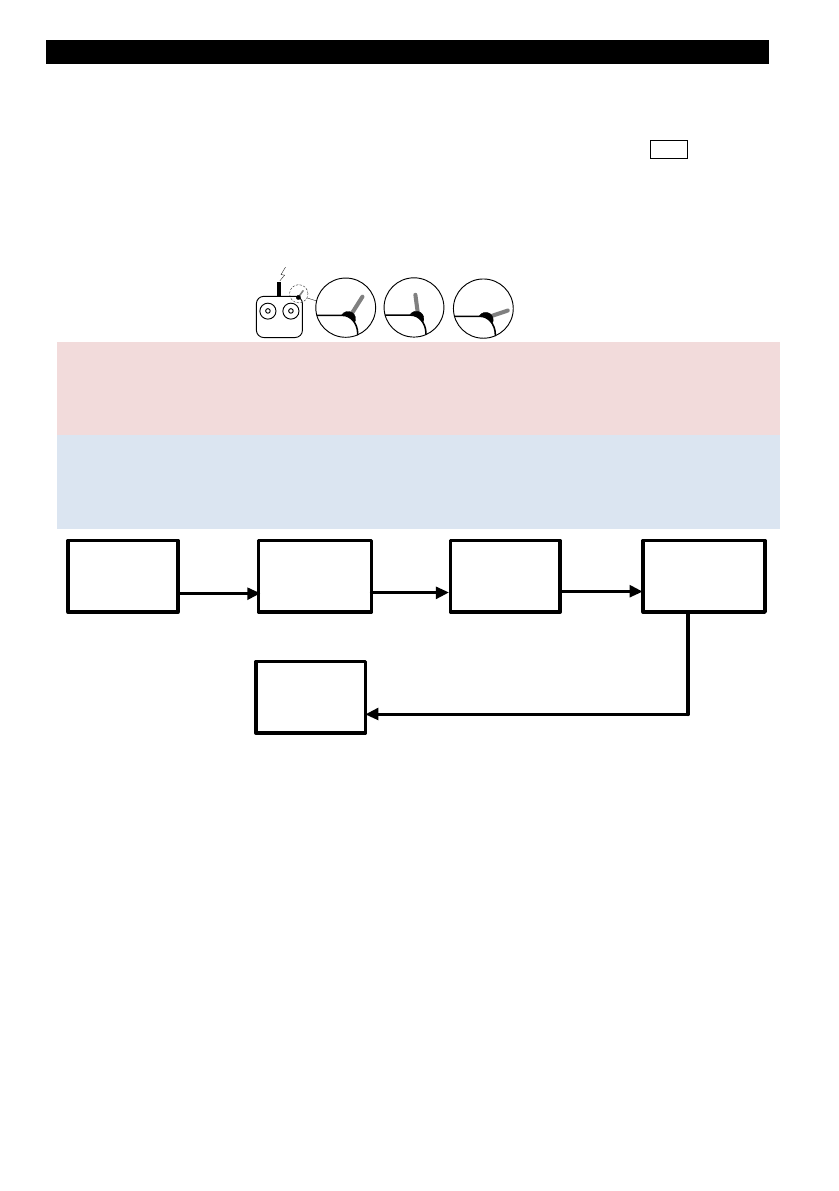

 The following diagram shows how the shutter control works.

 If the shutter control works abnormally, please check each step.

2-Position Switch

RC Receiver

2-Position Switch

Channel

TX Command

GCU

SHUT

Gimbal

HDMI-AV Module

Wireless

Internal Cable

Camera

Shutter

TX Command TX Command

3-Pins Cable

Camera Shutter Control Cable

2-Positon

Switch
