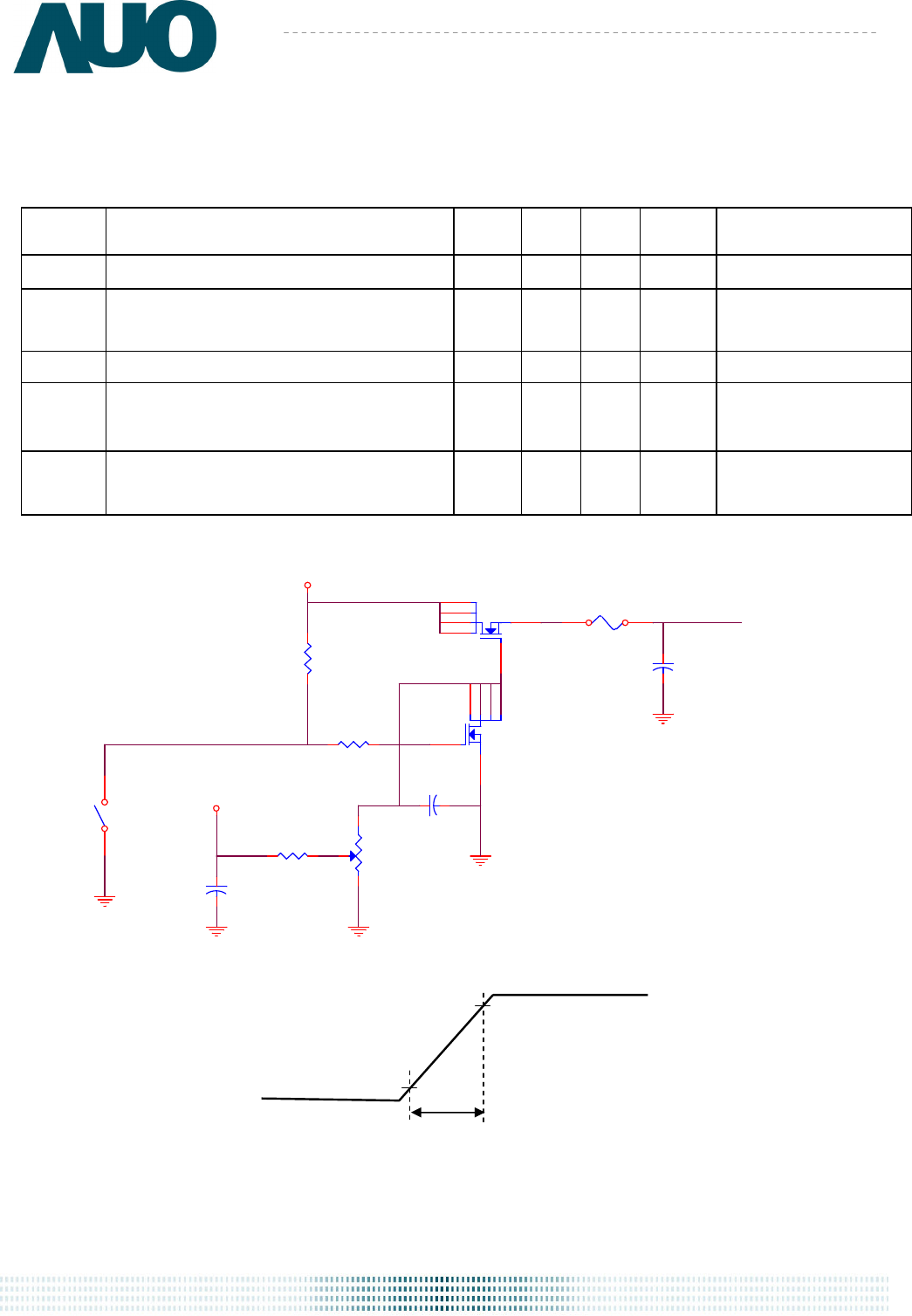

5. Electrical Characteristics
5.1 TFT-LCD Driving
5.1.1 Power Specification
S
ymbol
Parameter Min Typ
Max
Units Remark
VDD Logic/LCD Drive Voltage 3.0 3.3 3.6 Volt
IDD VDD Current - 260
300 mA
All Black Pattern
(VDD=3.3V, at 60Hz)
Irush LCD Inrush Current - - 1.5 A Note 1
PDD VDD Power - 0.86
Watt
All Black Pattern
(VDD=3.3V, at 60Hz)
VDDrp
Allowable Logic/LCD Drive Ripple Voltage - - 100
mVp-p
All Black Pattern
(VDD=3.3V, at 60Hz)
Note 1: Measurement condition:
Q3
AO6402
G
D2S D1 D5 D6
Q3
AO6402
G
D2 S
D1
D5
D6
C1
1uF/16V
C2
1uF/25V
C3
0.01uF/25V
F1
VR1
47K
+12.0V
VCC
SW1
SW MAG-SPST
1 2
(High to Low)
Control
Signal
(LCD Module Input)
R2
1K
+3.3V
R1
47K
R2
1K
90%
10%
VDD rising time
0V
3.3V
0.5ms
VDD
