6. Signal Characteristic

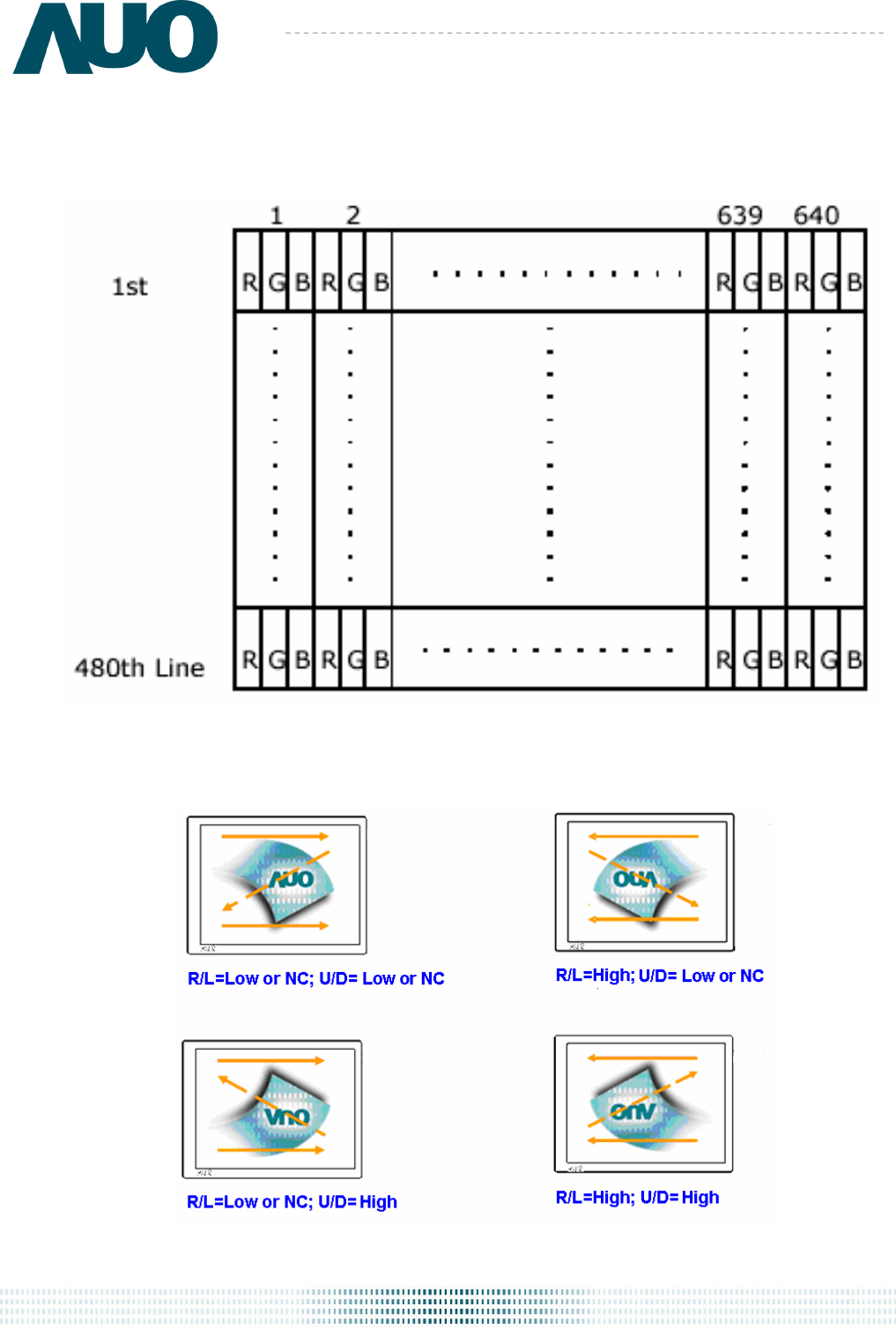

6.1 Pixel Format Image
Following figure shows the relationship between inpu
t signal and LCD pixel format.
6.2 Scanning Direction
The following figures show the image seen from the f
ront view. The arrow indicates the direction of scan.
Note 1: TFT-LCD interface signal description is shown in section 6.4.
