6.7 Power ON/OFF Sequence
VDD power, LCD interface signals and backlight on/off s
equence are shown in the following chart. Signals from any system
shall be Hi-Z state or low level when VDD is off.

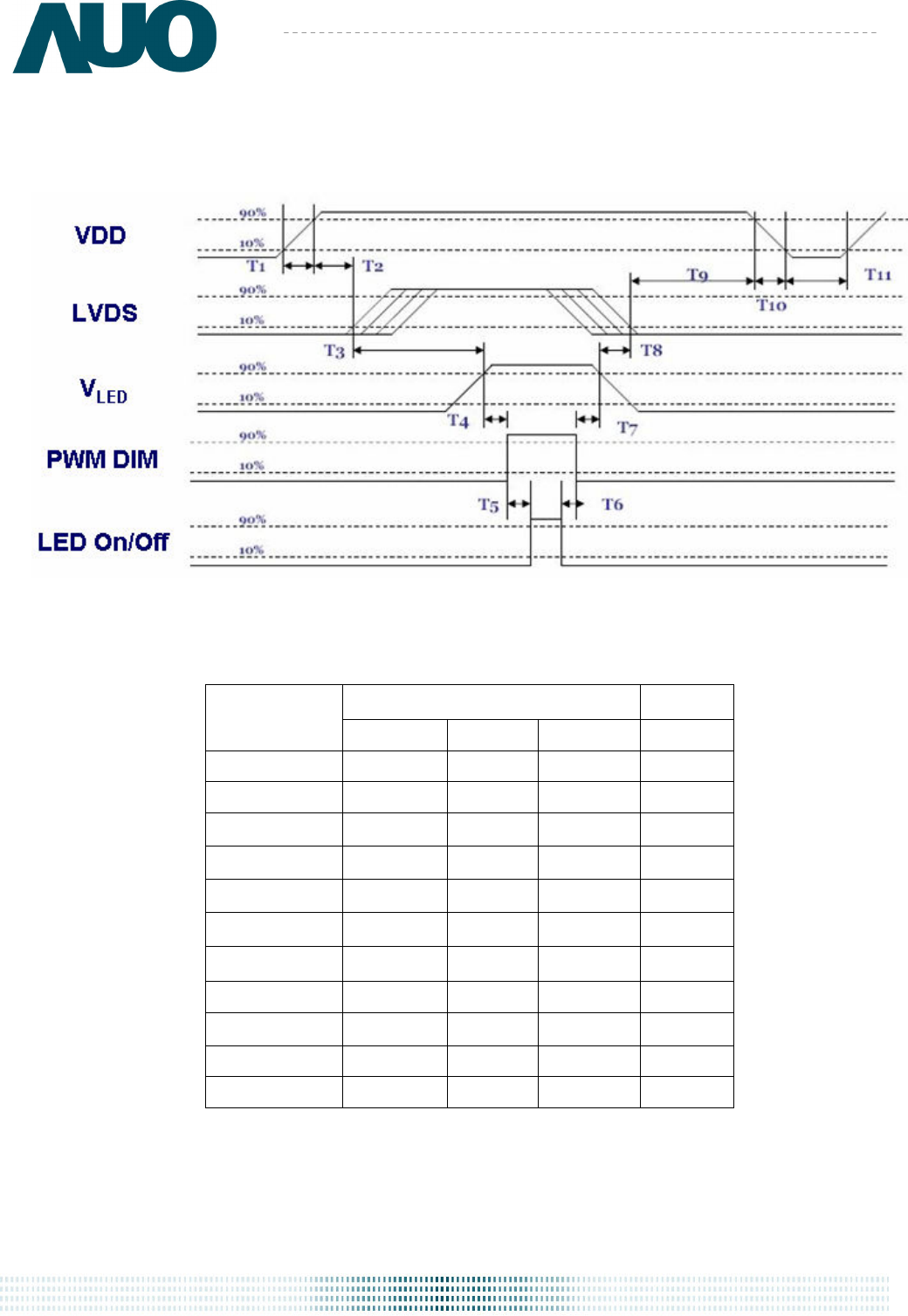

Power ON/OFF sequence timing
Value Units
Parameter
Min. Typ. Max.
T1 0.5 - 10 ms
T2 30 40 50 ms
T3 200 - - ms
T4 10 - - ms
T5 10 - - ms
T6 0 - - ms
T7 10 - - ms
T8 100 - - ms
T9 0 16 50 ms
T10 - - 10 ms
T11 1000 - - ms
ON/OFF sequence should be applied to avoid abnormal function in the display. Please make sure to turn off the power when
you plug the cable into the input connector or pull the cable out of the connector.
