Specifications

4 Rev. 11©1999 - 2010 DMC Co., Ltd.
1-6. Appearance
§ Scratch, dust (W = width, L = length, D = average diameter = (longest + shortest) /2)
Item Width (mm) Length (mm) Acceptable Numbers Total
0.1≥W>0.05 4≥L 1pcs in φ30mm
0.05≥W>0.03 10≥L 2pcs in φ20mm
Linear(Scratch/Dust)
Over 0.1mm in
diameter refer to the
Circular.
0.03≥W 20≥L
Acceptable
0.4≥D>0.3 *1
1pcs in viewing area *1
0.3≥D>0.2 2pcs in φ30mm
Circular
(Scratch/Dust)
0.2≥D
Acceptable
Within 5pcs
/panel
Applied only in the Active Area. Scratches or dusts in the outside of the Active Area are acceptable unless the
electrical characteristics are affected.
*1 Applied to the size of 14 inches or more.
§ Dirt
Acceptable if not noticeable on a black mat.

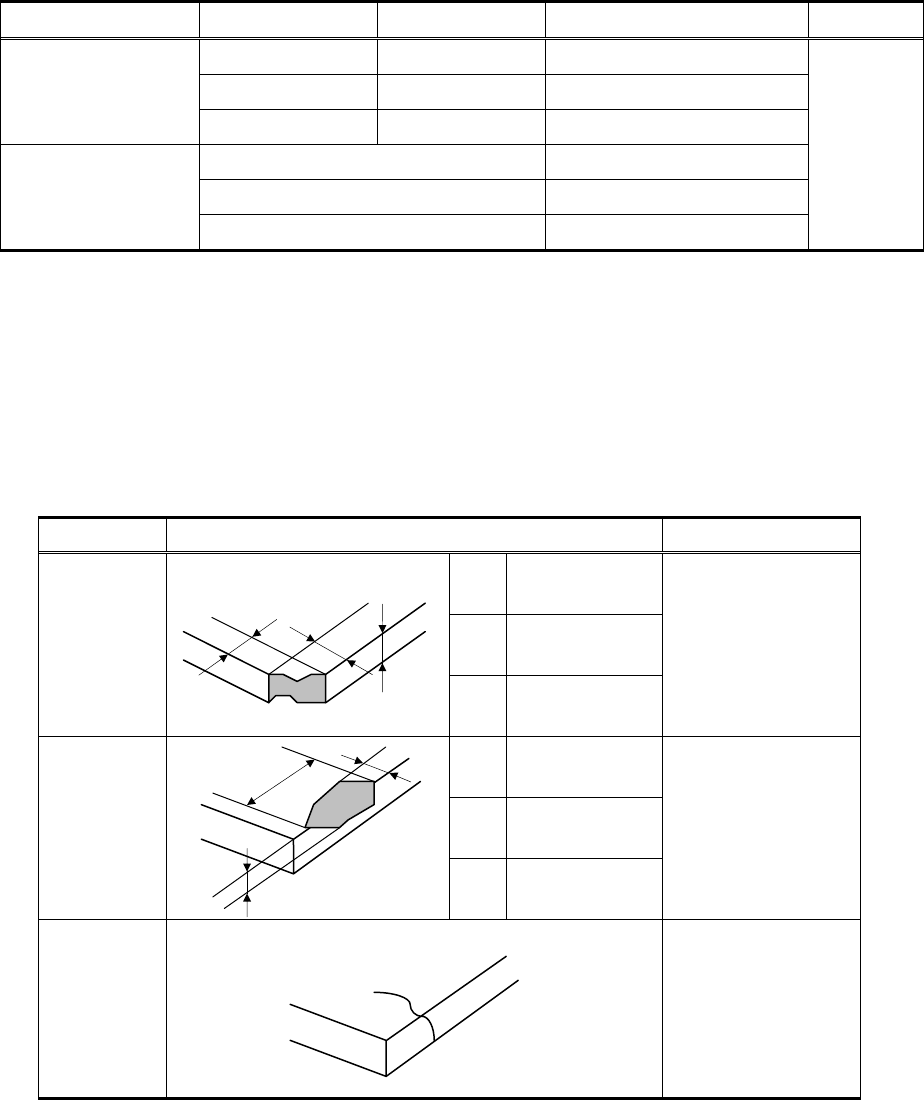

§ Tip, crack (t = glass thickness) (applicable only for the glass)
Item Size (mm) Acceptable Numbers
X
≤3
Y
≤3
Corner
Z
≤t
2pcs
/panel
X
≤5
Y
≤3
Side
Z
≤t
2pcs
/side
Crack Not acceptable
X
Y
Z
Z
X
Y
