PRODUCT DESCRIPTION
The PWR-DSP1 answers the needs for a high power yet high quality plate amplifier module. Based on the synergetic
and innovative technology from DSP4YOU and PASCAL Audio, the module is a turnkey solution for multi-way
powered speakers. Third generation Class-D amplification, Digital Signal Processing (DSP) and the Audio Video
Bridging (AVB) are just examples of the embedded technology of this breakthrough product. With an impressive
maximum rating of 2400W (ch1), be sure to find no compromise on audio quality from studio/ Hifi systems to Pro-A/V
applications.
Last but not least, the optional Audio Video Bridging (AVB) allows streaming of multiple uncompressed, low latency
and synchronized audio channels over Ethernet networks. Extended cable length, noise immunity and flexible routing
are some of the many obvious advantages of AVB. With our live amplifier health monitoring (load, temperature, clip),
live changes of the DSP settings and ZeroConf support, the PWR-DSP1 is a true Plug&Play device easily configured
over Ethernet or Wifi networks: A setup summarized by three words: Plug, discover, control.

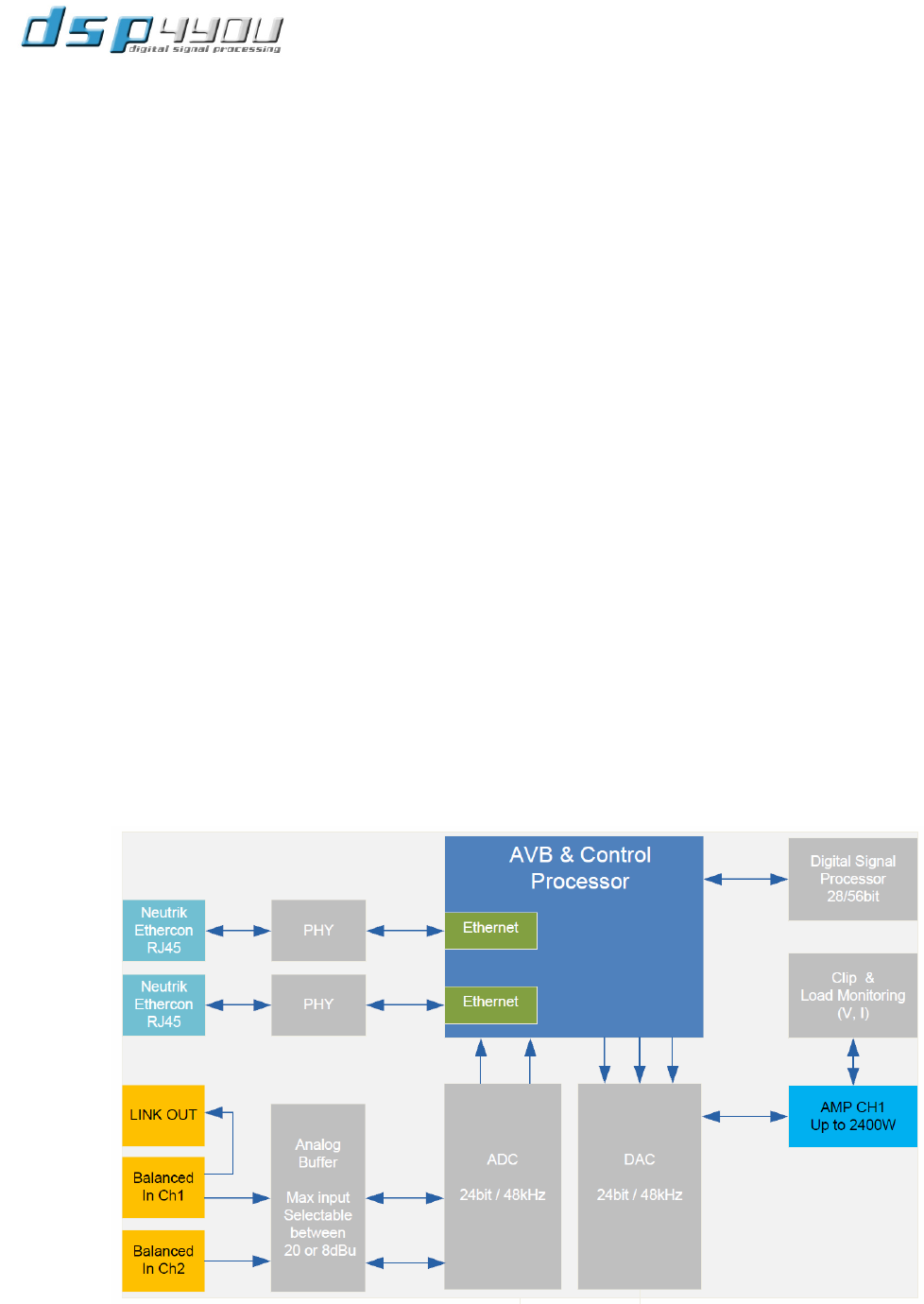

SYSTEM DIAGRAM
Features
* Ultra high power module
* Latest AVB & DSP technology
* OEM friendly
Power Amplifier
* Third generation class D technology
* Up to 2400W on channel 1
* Self protection & power hibernation
* Regulated SMPS for 85 ~ 268V operation
Flexible Digital Signal Processor
* Crossover (Up to 48dB/oct)
* Equalization (PEQ / Shelf)
* Compressor/Limiter
* Time alignment / phase / gain control
* Audio, Power, clip and thermal metering
Control
* ZeroConf for Plug&Play configuration
* Remote control for up to 256 amplifiers
* DHCP or Link Local Addressing (Auto IP)
* Remote firmware upgrade over network
Audio Video Bridging (Optional)
* Low latency, synchronized streaming
* Up to 3 incoming streams
* Redundant network connectivity
