PWR-DSP1 User Manual
Page 7 of 23
Copyrights DSP4YOU ltd

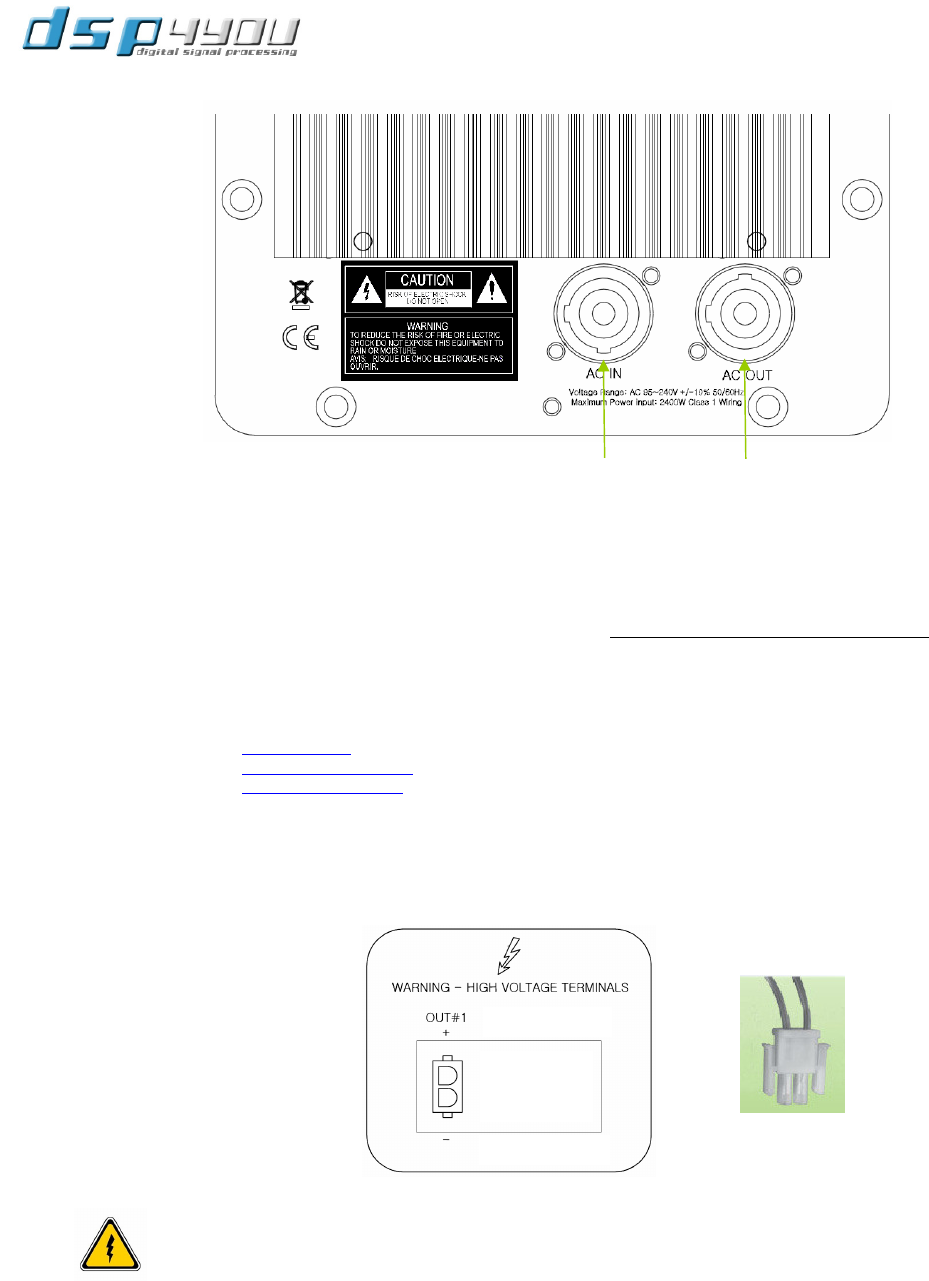

2.2 Front Panel Description – Bottom section
1. MAIN AC IN on PowerCON 20AMP connector (NAC3FCA). Universal 95~240V power supply input
2. LINK OUT on PowerCON 20AMP connector (NAC3FCB) for linking to another amplifier within limits of your AC circuit.
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating
ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking
device is needed in order to guarantee a safe power connection. Connector is to be purchased separately
.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or
disconnected under load or live!
For more information, please consult the Neutrik website:
-
Product page
-
Product specifications
-
Assembly instructions
2.3 Rear panel description
The amplifier outputs are provided on 3 x MOLEX connectors, 6.3mm pitch as shown on picture below. Female
connectors are flush mounted to the enclosure of the PWR-DSP1. Three male connectors along with 6 inserts are
provided as part of the product.
WARNING: Output connector marked with the lightning flashes indicate high voltages that are potentially
life threatening. Wiring to these terminals requires installation by an instructed person and the use of ready-
made leads or cords. Custom wiring should only be carried out by qualified personnel.
