Operation Manual

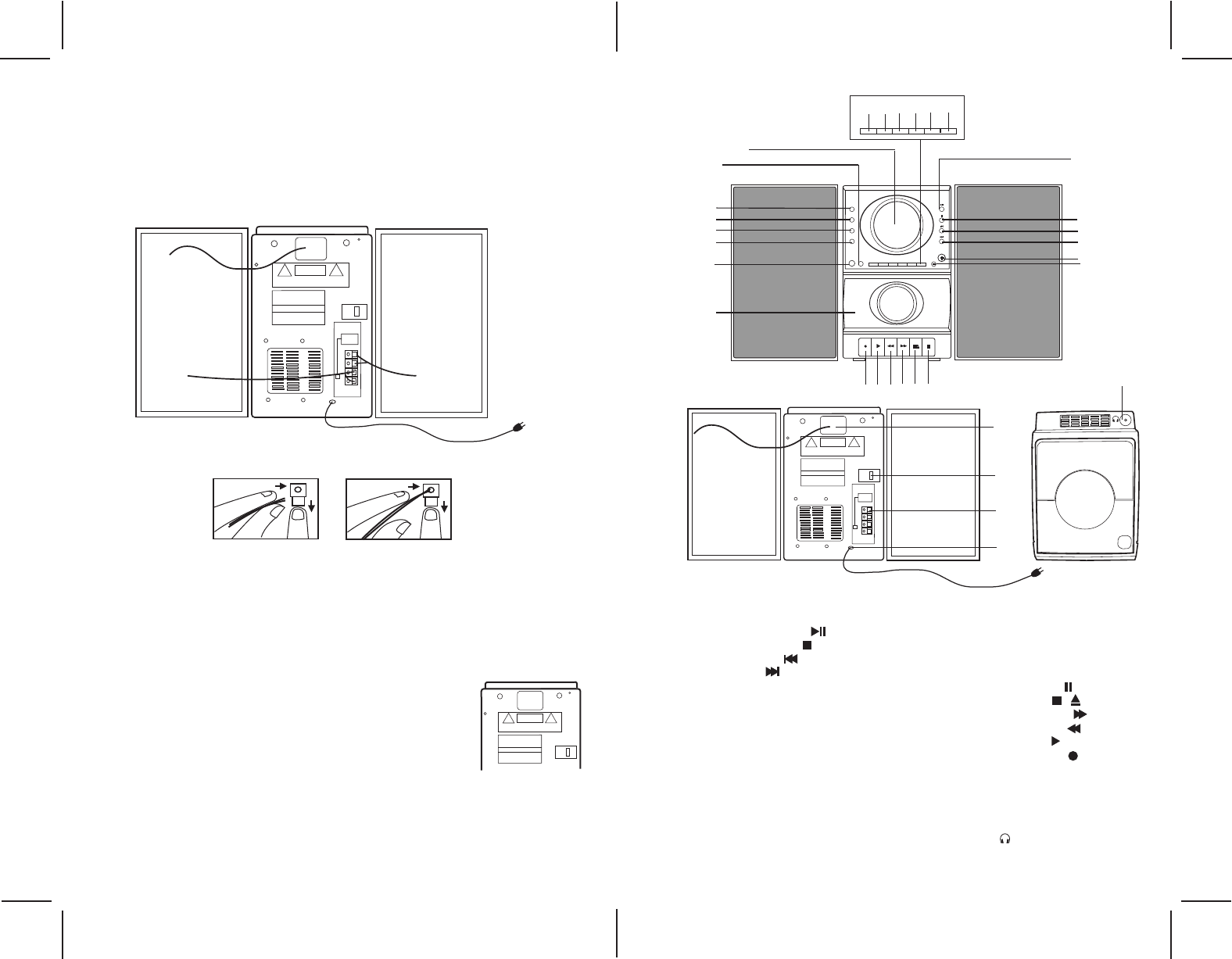

Connecting the Speakers
When connecting the speakers, match the red wires to the red jacks and the black wires
to the black jack. Each speaker has a black and a red jack, one for positive and one for
negative. The top two jacks are for the left speaker, while the bottom two jacks are for the
right speaker.
Speaker Wire Connection
Push Speaker terminal tab
down to insert wire.
Release tab to lock wire in
the terminal.
NOTE : Make sure the insulation is completely removed from the ends of the speaker wires
at all connection points.
Using the Antenna
Before you use your audio system, you’ll want to make sure the
FM antenna is positioned properly. The FM antenna is the coiled
wire connected to the back of the unit. Uncoil it, making sure it is
fully extended (you may even want to tape it to the wall behind
the unit, if possible. The higher, the better.)
For better AM reception, move or rotate the unit.
Eng 1
Eng 2
LOCATION OF CONTROLS :
1. CD Select and
CD Play / Pause Button ( )
2. CD Stop Button / RDS ( / RDS)
3. CD Preview Button ( )
4. CD Next Button ( )
5. Volume Control Switch ( VOLUME + )
6. Volume Control Switch ( VOLUME - )
7. CD Random Button ( RANDOM )
8. CD Intro Button ( INTRO )
9. M-UP Repeat Button ( M-UP REPEAT )
10. C-ADJ Memory Button
( C-ADJ MEMORY )
11. Timer Button ( TIMER )
12. Sleep Button ( SLEEP )
13. Remote Receiver ( IR )
14. Power on / off Button
( POWER / STAND BY )
15. Tuner Select Button ( TUNER / BAND )
16. Tape Select Button ( TAPE )
17. Preset and EQ Button ( PRESET EQ )
18. Time Display Button ( DISPLAY )
19. LCD Display
20. Cassette Door
21. Cassette Pause Button ( )
22. Cassette Stop Button ( / )
23. Cassette Forward Button ( )
24. Cassette Rewind Button ( )
25. Cassette Play Button ( )
26. Cassette Record Button ( )
27. FM Antenna Wire
28. Beat Cut 1 / FM ST,
Beat Cut 2 / FM MO
29. Speaker output
red jacks & black jacks
30. Phone Jack ( )
31. AC Power Cord
27
28
29
31
30
Phone
1
2
3
4
5
6
13
14
15
16
17
18
19
2122
20
23
24
2526
7
8910
11
12
SLEEP
TIMER
POWER
C-ADJ
MEMORY
M-UP
REPEAT
INTRO
VOLUME
RANDOM
IR
STANDBY
TAPE
TUNER
PRESET EQ
DISPLAY
MICRO COMPONENT CD SYSTEM
STEREO CASSETTE DECK
AUTO STOP MECHANISM
SLEEP
TIMER
C-ADJ
MEMORY
M-UP
REPEAT
INTRO
RANDOM
