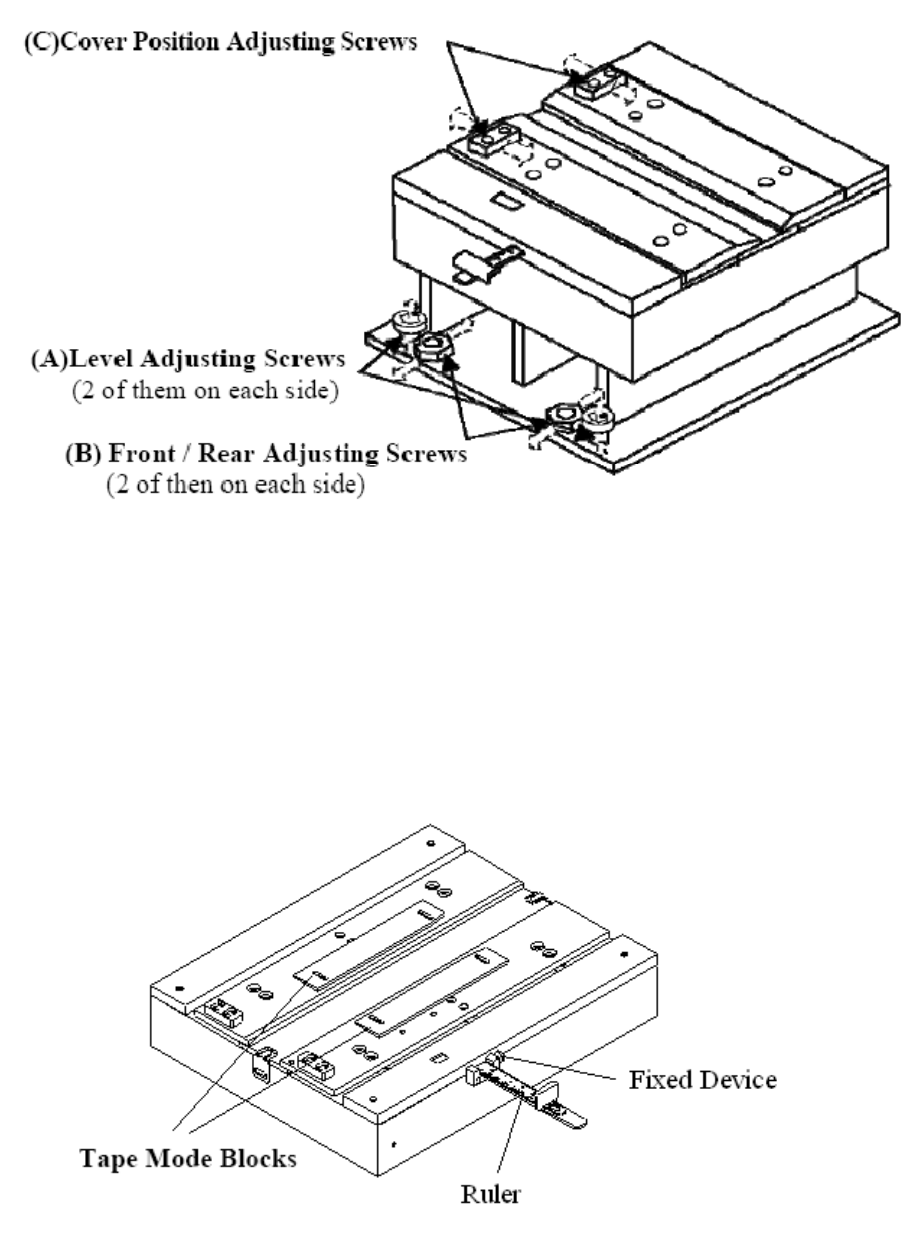

• Position Adjustments on Nipping Station
(A) The level of nipping station should be adjusted evenly on the corresponding ends to prevent tilting the
nipping station surface, by level adjusting screws. (B) The centerline of the nipping station must match the
projected centerline of the clamp station by the front/rear adjusting screws. (C) The position of cover can be
adjusted by the cover position adjusting screws, along with the position of LS1.
TAPE MODE BLOCKS Adjustment / Cover Position Fixed ruler
TAPE mode using tape instead of cover blocks adjusting was as the cover center adjusting. Please install
blocks first before your adjustment.
Cover position fixed ruler can be pulled out to fix your covers position. Fixed device can fix the ruler
firmly in the place you want.
