Instructions / Assembly

Materials:
(1) Hardware pack
(1) Head piece
(1) Back frame
(1) Seat frame
(2) Side frame
(1) Front Brace
(1) Back Brace
(2) Rocker Bottom
TOOLS REQUIRED
(14) A -
1
4-20 x 2-
5
8" Hex screw
(4) B - 2" Phillips screw
Step 4:

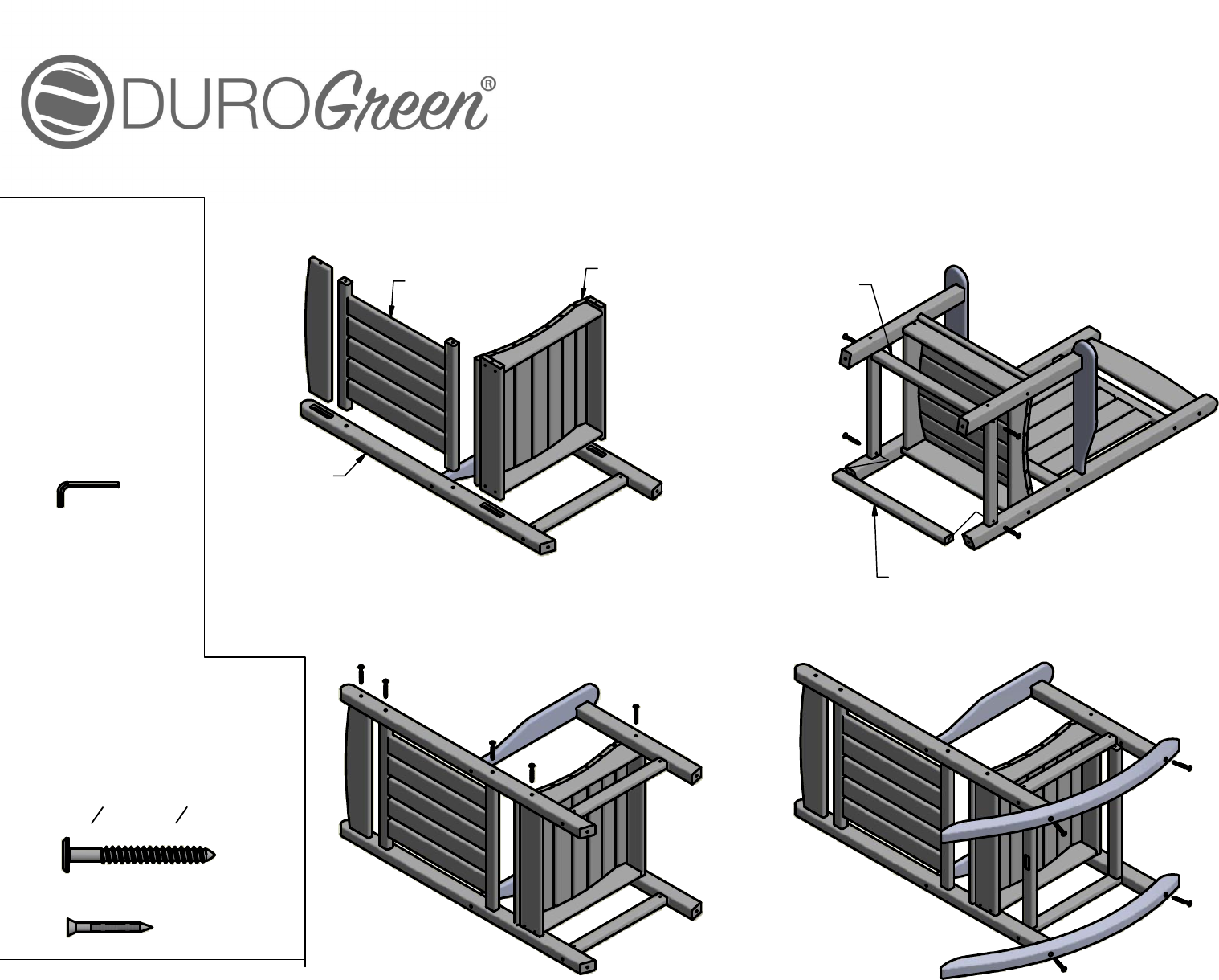

Set rocker on its side.
Attach rocker bottoms with A-screws
Step 2:
Place the other side frame on top and insert the head
and seat frame into the pockets. Also, line up the back frame
with the holes of the side frame. Attach using A- screws.
Flip and repeat on the other side .
Step 1:
Set one side frame on the ground with the pockets facing up.
Place the head and seat frame into the pockets.
Set the back frame onto the side frame
Allen Wrench
Included
Phillips Screw-Driver
Not included
Step 3:
Attach the front and back brace using B- screws.
Note: Back brace has the DuroGreen logo.
It should be facing up towards the back of rocker
B
B
B
NOTE:
DO NOT CUT THE PLASTIC WRAP
AROUND THE BACK FRAME
UNTIL ASSEMBLY
IS COMPLETE.
Note:
Do not use an impact driver
to install hardware.
Use battery operated drill or
provided Allen wrench
Head
Back frame
Seat frame
Side frame
A
A
A
A
A
Front brace
Back brace (Face logo up)
A
A
A
