Source IP/ Subnet Mask/ Port:
Key in the source IP address (ex.:
192.168.1.0) and subnet mask (ex.:
255.255.255.0) for the application (ex.:
FTP, HTTP, and so on) that you want
to invoke the QoS traffic rule. You may
simply enter the source port, ranging
from 0 to 65535, as the traffic
condition.
Destination IP/ Subnet Mask/ Port:
Enter the destination IP address
(ex.: 168.95.1.88) and subnet mask
(ex.:255.255.255.0) for the application
that you want to invoke the QoS traffic
rule. Or simply enter the destination
port for the traffic condition; it ranges
from 1 to 65535.
Traffic Priority/ DiffServ Class
(DSCP)/ WAN 802.1p:
Please refer to the Bridge QoS
section.

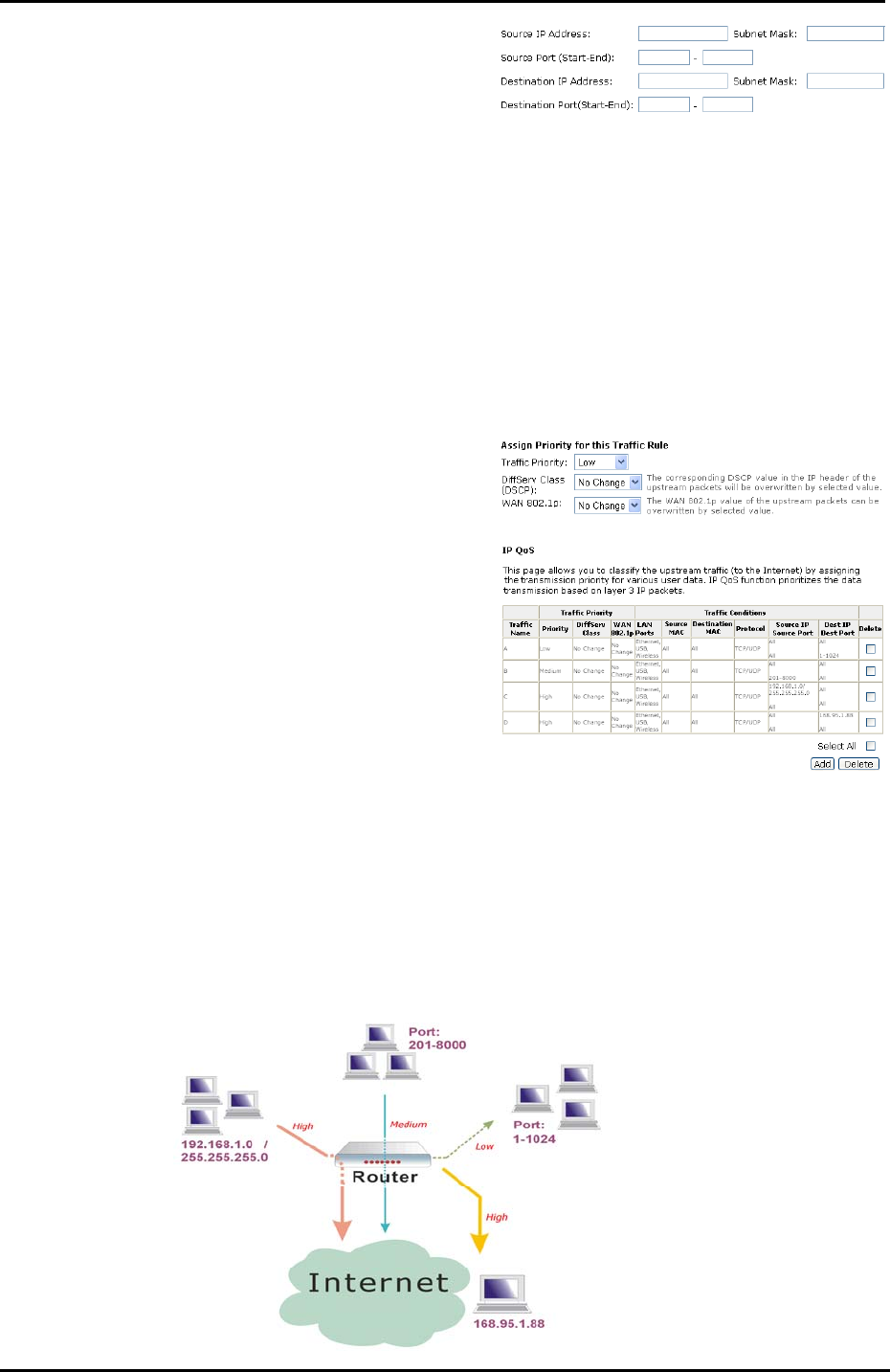

After finishing the settings, click
Apply, the new QoS setting will be
shown as the example.
According to the example, we set four
rules for IP QoS. In traffic A, we set
the destination port as 1-1024, and
the traffic priority is low; in traffic B, the
source port is from 201 to 8000, and
the priority is medium; in traffic C,
when the source IP is 192.168.1.0,
subnet mask is 255.255.255.0, the
traffic priority is high; in traffic D, when
the traffic is heading to 168.95.1.88,
the priority is high.
To delete the rules you set, simply
click the check button below Delete
item and click Delete button.
According to our example, the IP QoS configuration can be illustrated by the
following figure.
While there are many PCs
getting online, the PCs
using port 201-8000 to
access the internet will have
medium traffic priority, the
PCs carrying 192.168.1.x/
255.255.255.0 as IP
address will have high
traffic priority. In addition,
PCs heading to port 1-1024
will have a low priority, while
the PCs accessing
168.95.1.88 will have a high
priority.
