Chapter 4: Web Configuration
115

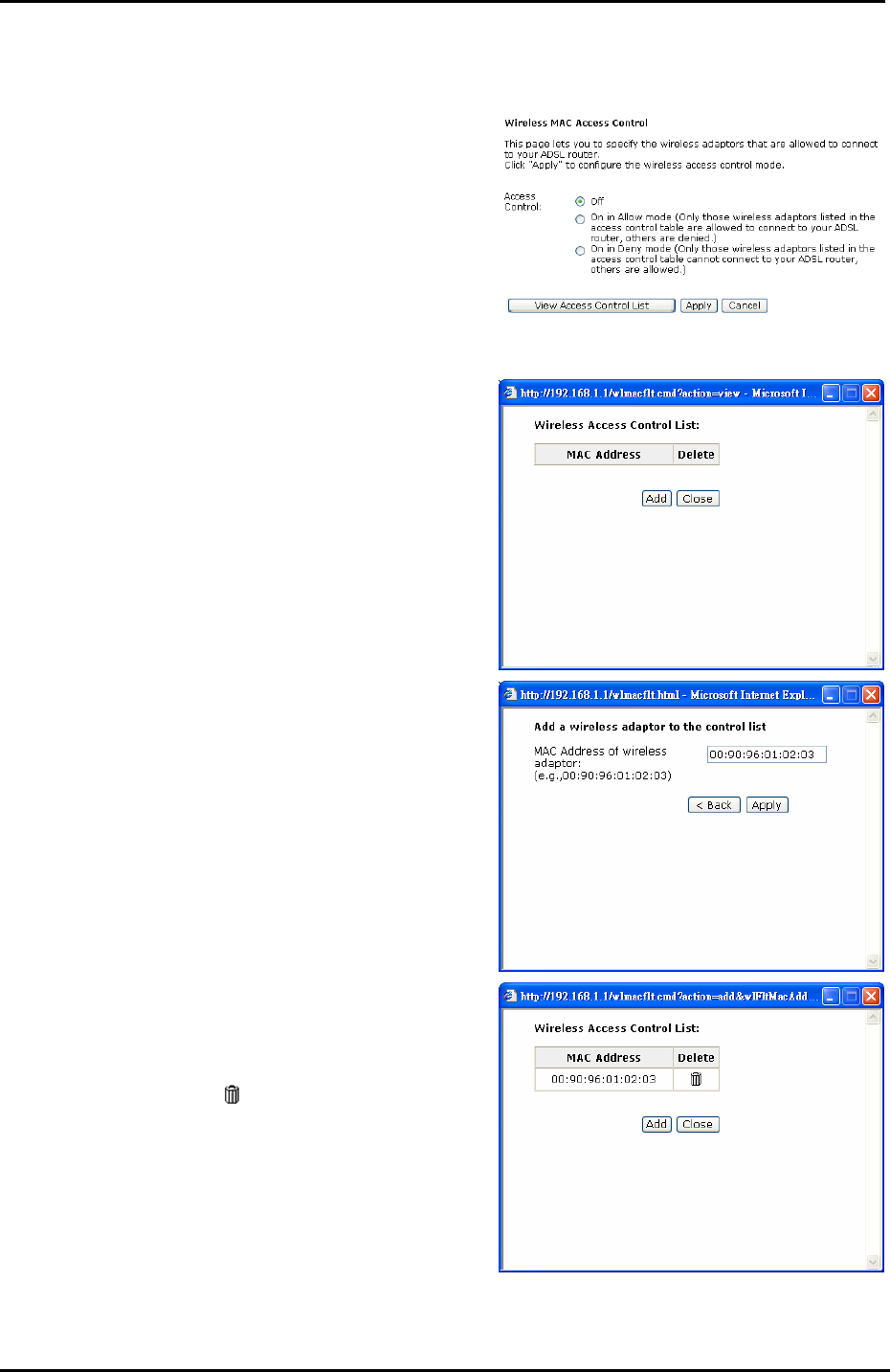

Access Control
The web page allows you to enable the wireless MAC control configuration.
Access Control:
Click Off to disable this function. Click
On in Allow mode to allow the
devices using matched MAC address
to link to the AP. And click On in Deny
mode to disturb the listed wireless
MAC address to access the AP.
View Access Control List:
Click this button to view the wireless
access control list and to add a new
MAC address.
The Wireless Access Control List
dialog allows you to add a new MAC
address and view current MAC
addresses that you had added.
To add a new MAC address to your
wireless MAC address filter, click on
the Add button.
MAC Address of Wireless adaptor:
Key in the MAC Address to be filtered.
And click Apply.
The result of the added MAC address
will be shown on the table.
If you want to delete the added MAC
address, simply click the delete
button
, a dialog box will be
prompted to confirm the deleting. Click
Yes, and then the selected one will be
erased.
