ADSL Router User Manual
30

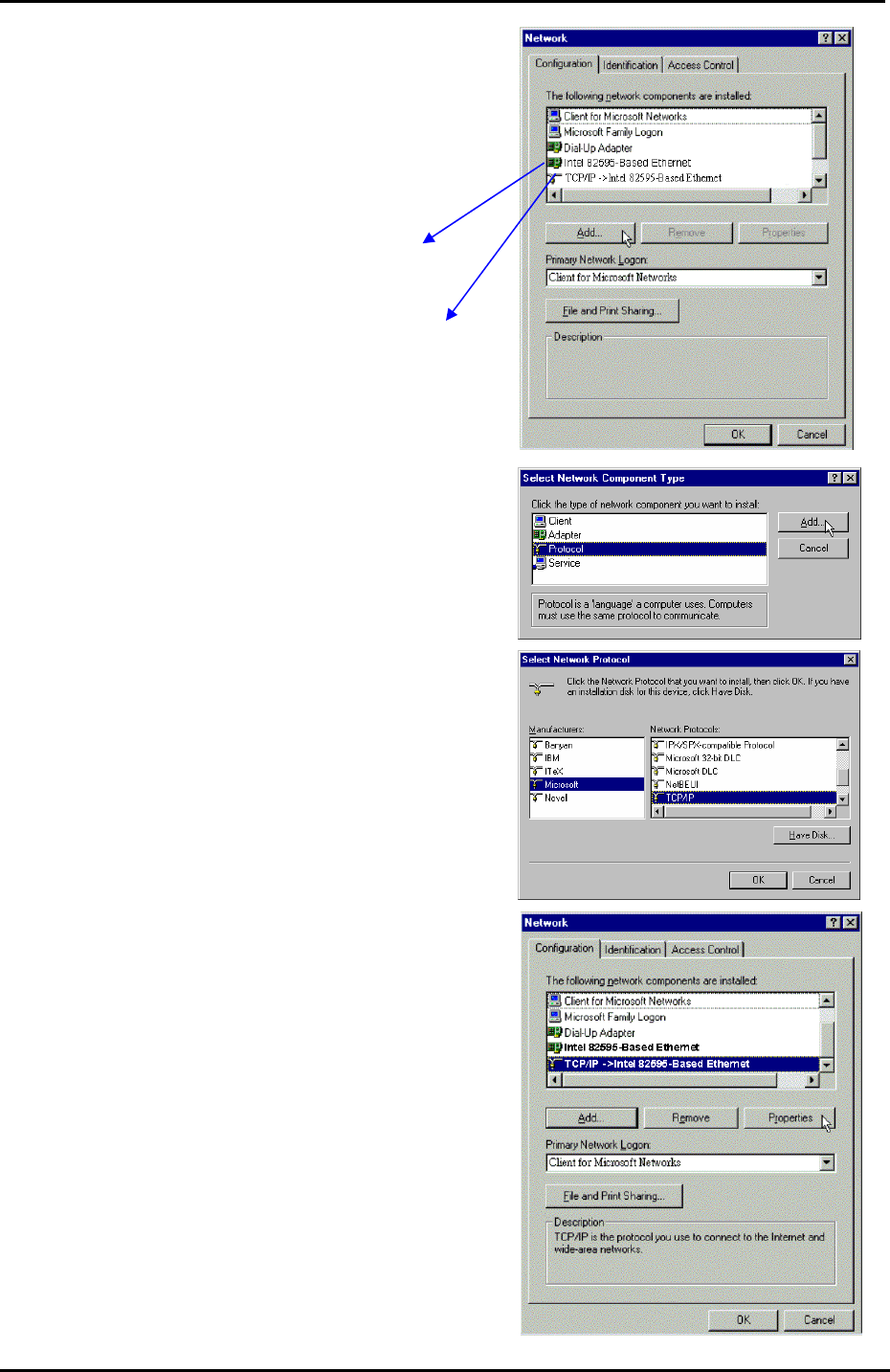

3. The Network window appears.
On the Configuration tab, check
out the list of installed network
components.
Option 1: If there is no TCP/IP
protocol, click Add.
Option 2: If you have TCP/IP
protocol, skip to Step 6.
4. Highlight Protocol and click Add.
5. Highlight Microsoft on the left
side of the window, and select
TCP/IP on the right side. Then
click OK.
6. When returning to the Network
window, highlight TCP/IP
protocol for your NIC and click
Properties.
Your network
interface card.
Check out if TCP/IP
for your NIC is
installed or not.
