Chapter 2: System Requirement and Installation
41

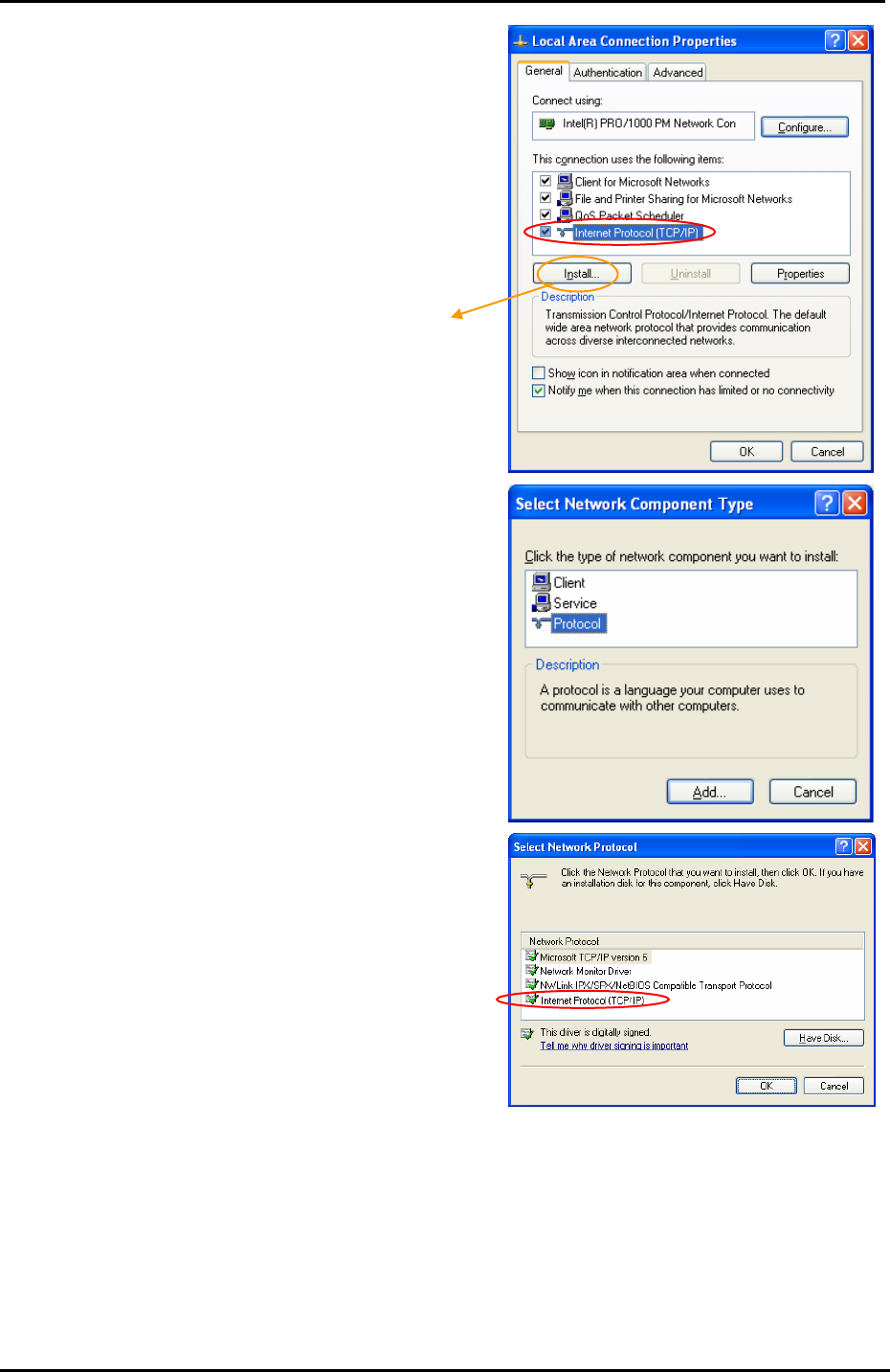

4. On the General tab, check out
the list of installed network
components.
Option 1: If there is no TCP/IP
Protocol, click Install.
Option 2: If you have TCP/IP
Protocol, skip to Step 7.
5. Highlight Protocol and then
click Add.
6. Click Internet
Protocol(TCP/IP) and then
click OK.
If there is no TCP/IP
protocol installed on your
PC, press Install to continue.
