ADSL Router User Manual
70
Connection Type
The system provides several protocols for you to choose. Your ISP will offer you the
most suitable settings of the protocol. Before you set this page, please refer to the
protocol that your ISP offered.

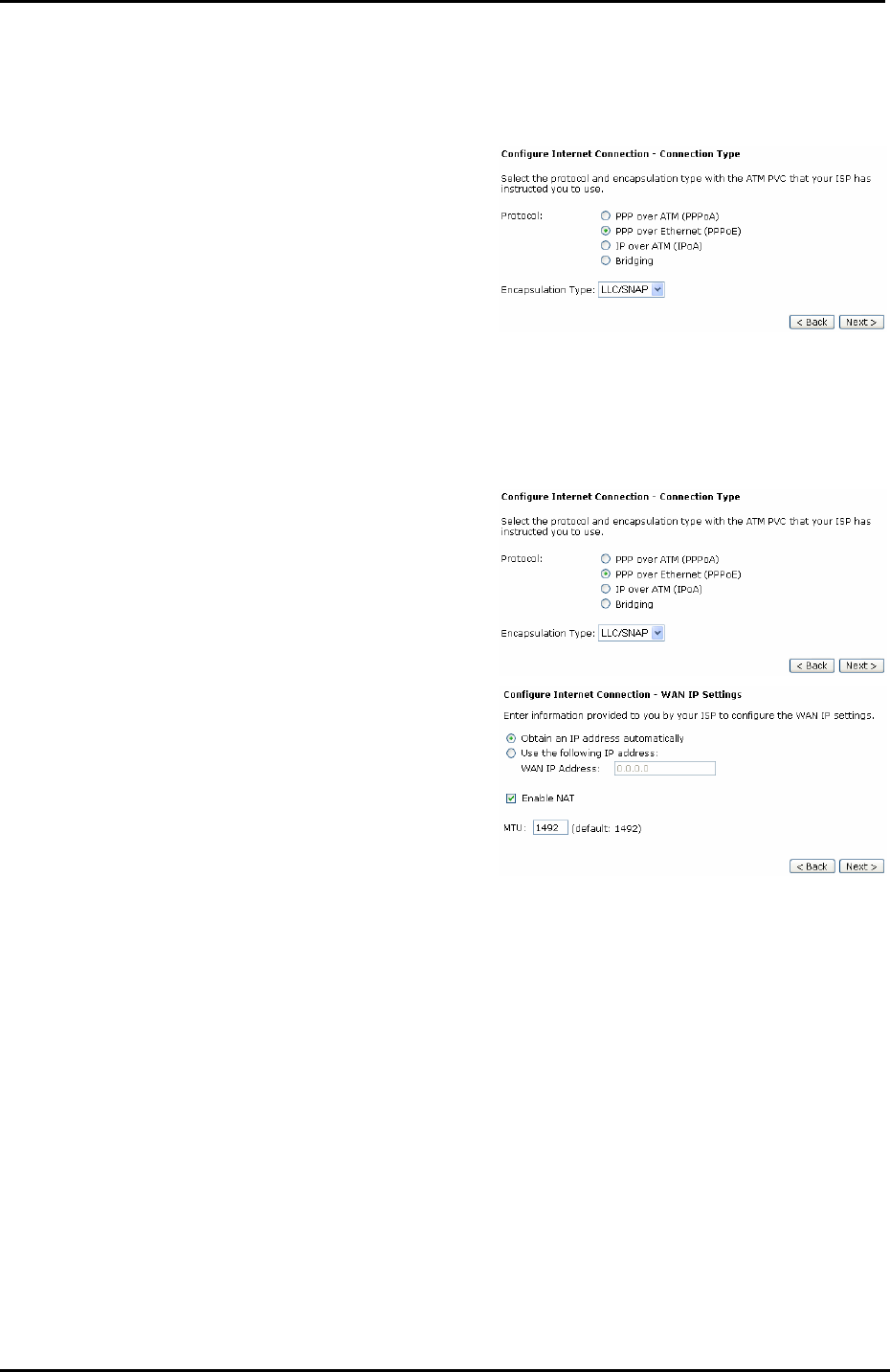

After clicking on the Next button from
the VPI/VCI web page, the following
screen will appear. Please choose the
connection type and encapsulation
mode that you want to use and click
Next for next page.
For instance, PPP over Ethernet
(PPPoE) is selected in this
demonstrative figure.
PPP over ATM/ PPP over Ethernet
If the connection type you choose is PPP over ATM or PPP over Ethernet, please
refer to the following information.
According to the ISP’s configuration
on the server, you can choose PPPoE
or PPPoA modes.
Choose PPPoA or PPPoE and click
Next.
On this screen, you have to make the
settings for WAN IP. To get the IP
address automatically, click the
Obtain an IP address automatically
radio button. Or click Use the
following IP address button and
enter the IP address for WAN
interface.
Check Enable NAT if you need.
MTU:
It means the maximum size of the
packet that transmitted in the network.
The packet of the data greater than
the value set here will be divided into
several packets for transmitting.
Type the value into the field of MTU.
The default MTU value for PPPoE is
1492; while for PPPoA is 1500.
Click Next for the next procedure.
